| Categories | Battery Pack Machine |
|---|---|
| After-sales Service: | 24/7 Technical Support |
| Model Number: | ACEY-BS02 |
| Dimensions: | L1110mm*W710mm*H1580mm |
| Barley paper roll width: | 100mm |
| MOQ: | 1 Set |
| Delivery Time: | 7~35 Days |
| Warranty: | 1 Year Warranty with Lifetime Support |
| Brand Name: | ACEY |
| Machine weight: | 200Kg |
| Packaging Details: | Plywood Case |
| Voltage Supply: | Single-phase ~ 220V, 50Hz |
| Payment Terms: | T/T,PayPal,L/C,Western Union |
| Weight: | 200kg |
| Certification: | CE |
| Rated power: | 2KW |
| Price: | USD6499-7200/Set (negotiable) |
| Pneumatic pressure: | 0.4-0.6Mpa barley paper machine |
| Supply Ability: | 200 Sets/Month |
| Speed: | 2000PCS/hour, 2PCS per punch |
| Place of Origin: | China |
| Company Info. |
| Xiamen Acey New Energy Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

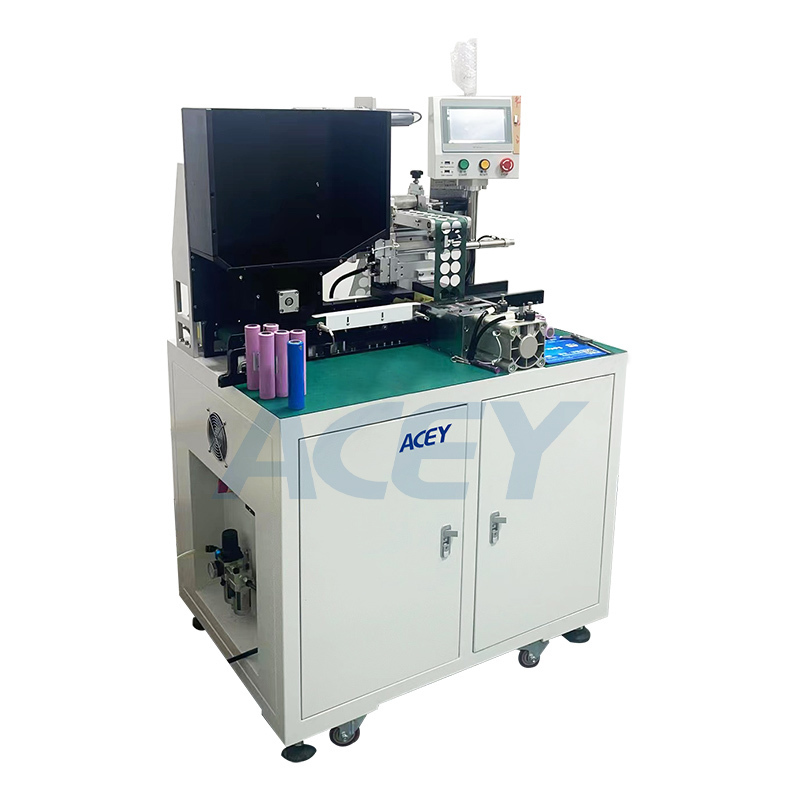

ACEY-BS02 Battery Insulation Paper Pasting Machine is designed for automatically applying highland barley paper or PVC pads to the positive or negative poles of 32140 and 33140 cylindrical battery cells. With automatic feeding, servo control and mold changeover, it provides a consistent and efficient sticking process for cylindrical battery pack assembly.
| Features | *The equipment has a compact structure design, beautiful appearance
and small space occupation. *The equipment is equipped with universal movable casters, which makes it easy to move and transport the equipment. *Replacing mold to stick other size battery is supportable(Only 33140 &32140) | |
| Voltage Supply | Single-phase ~ 220V, 50Hz | |
| Rated power | 2KW | |
| Surface pad material | Highland barley paper or PVC material | |
| Material specification requirements | the max diameter of barley paper roll material is 350MM, the inner diameter of paper roll core is 72-75MM | |
| batrery type | Battery cell positive or negative pole is automatically pasted with highland barley paper mat or PVC material | |
| Feeding method | Insert battery cell hopper: 400pcs each time, available for 2 separate inserting units BNX-350 auto pasting | |
| Pneumatic pressure | 0.4-0.6Mpa barley paper machine | |
| Cushioning power | Electric or pneumatic | |
| Control device | 7.5 inch touch screen, PLC programmer and servo motor | |
| Barley paper roll width | 100mm | |
| Speed | 2000PCS/hour, 2PCS per punch | |
| Dimensions | L1110mm*W710mm*H1580mm | |
| Machine weight | 200Kg | |
| Knife mold | Slow-moving wire processing method, high precision, 5000 knife molds are coated once to remove sticky water | |
ACEY-BS02 Battery Insulation Paper Pasting Machine uses automatic feeding and pasting with PLC and servo motor control, helping standardize the insulation paper application process and reduce dependence on repetitive manual operation.
ACEY-BS02 Battery Insulation Paper Pasting Machine supports a production speed of up to 2,000 pcs/hour and processes 2 cells per punch. Its hopper can hold 400 cells per loading, helping reduce frequent manual feeding during production.
ACEY-BS02 Battery Insulation Paper Pasting Machine supports mold replacement for 32140 and 33140 cylindrical battery cells, allowing the equipment to switch between these two specified cell sizes without requiring a completely different machine.
|
