| Categories | Non Destructive Testing Equipment |
|---|---|
| Model Number: | SYS-C |
| Supply Ability: | 50 sets per month |
| Certification: | ISO,CE |
| MOQ: | 1set |
| Product name: | Sand Mould Surface Hardness Tester |
| Delivery Time: | 5~7 days after payment |
| Pressure load: | 180g |
| Packaging Details: | in carton box |
| Maximum load: | 1500g |
| Brand Name: | HUATEC |
| Place of Origin: | China |
| Compression stroke: | 2.50mm |
| Company Info. |
| HUATEC GROUP CORPORATION |
| Verified Supplier |
| View Contact Details |
| Product List |

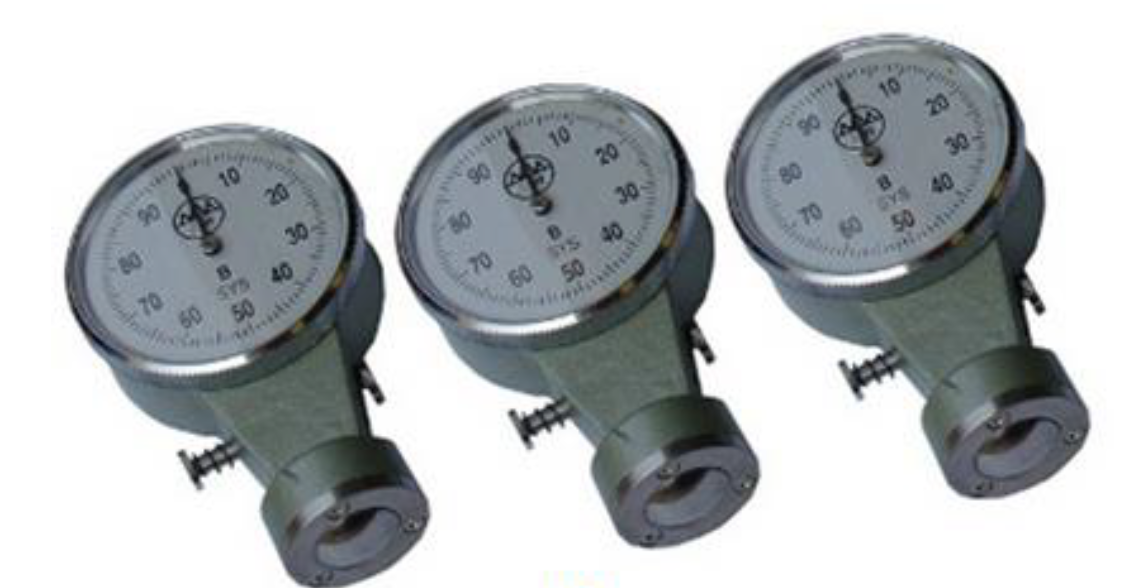

SYS-C Sand Mould Surface Hardness Tester
Product Description
SYS-C Sand Mould Surface Hardness Tester
Features:
It is used to determine the wet sand mould (core) surface hardness, for playing molding process to provide technical parameters. According to the size of the spring force and the stroke is the principle of linear relationship, the size of its stroke through a set of gear, the transmission of the rack by the surface pointer. The hardness of the surface of the sand B Type of unit is (g/mm2), but not in the habit of units but with the hardness to say. Because their values are related and consistent, both large (g/mm2), the corresponding hardness value is also large.
Specifications:
| Compression stroke | 2.50mm |
| Maximum load | 1500g |
| Pressure load | 180g |
| Head shape and size | Ball R1.20 |
| Accuracy | 2.50% |
| Outline dimension | 90 * 55 * 28mm |
Operation:
Adjust the 0 position, when the pointer is not in the 0 position,
turn the adjusting ring, so that the pointer to the 0 bit. - use
the hardness is pressed on the tested sand plane (hardness of the
axis perpendicular to the surface of the sand), the hardness meter
gauge plane and the measured sand plane close contact, the pointer
stopped at a certain value, press the locking pin locking be
locking, read out the determined value, then loosen the lock
locking the pointer back to zero. In each test, 5 to 3 times, and
then to calculate the average number, both the hardness value of
the site.
|
