5-Axis Vertical Machining Center with Tilting Rotary Table A/C Axis with Five-axis Post-processing Program,macro Program

Name: 5Axis Vertical Machining Center with Tilting Rotary Table AC Axis with Fiveaxis Postprocessing Programmacro Program
Brand: Juzhuo
Price: 1 USD

5-Axis Vertical Machining Center with Tilting Rotary Table A/C Axis with Five-axis Post-processing Program,macro Program

Categories	CNC Rotary Table
video outgoing-inspection:	Provided
Machine Type:	Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine, turning machine, Boring Machine, shaping machine, planning machine
Rated Current(A)(Rotary axis):	8.5
Rated Torque(Nm)(Rotary axis):	105
Maximum speed(rpm)(rotary axis):	250
Rated Power(KW)(Rotary axis):	2.2
Rated Power(KW)(Tilting axis):	5.3
machinery test report:	Provided
MOQ:	1
Rated Torque(Nm)(Tilting axis):	253
Voltage for Driver(V):	220
Rated Current(A)(Tilting axis):	17.5
Maximum speed(rpm)(Tilting axis):	200
warranty:	3 Years
Place of Origin:	Guangdong, China
Brand Name:	Juzhuo
weight (kg):	150
Rated speed(rpm):	200

Contact Now

Add to Cart

Company Info.

Dongguan Juzhuo Precision Machinery Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

5-Axis Vertical Machining Center with Tilting Rotary Table A/C Axis with Five-axis Post-processing Program,macro Program

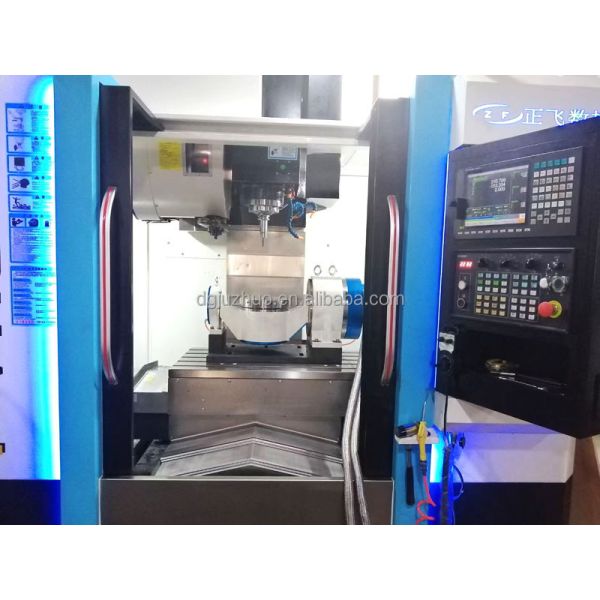

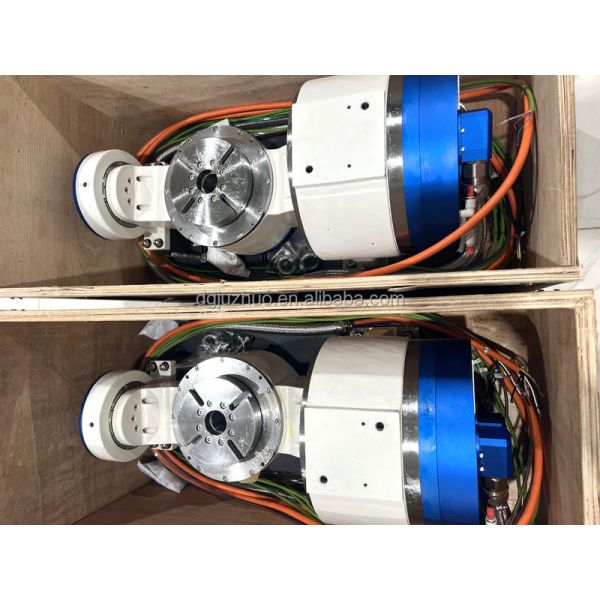

5-Axis Vertical Machining Center with Tilting Rotary Table A/C Axis

Complete 5-axis vertical machining center featuring tilting rotary table with A/C axis, including five-axis post-processing program and macro program - Model DDRC-180

Product Characteristics

Direct drive structure for optimal performance
High precision and high-speed operation
Long-term use without wear and tear
Rotary table compatible with multiple control systems including Lynuc, HNC, SYNTEC
For Fanuc, or Mitsubishi control systems, encoder replacement required
Position accuracy and repeat accuracy meets Renishaw 2012 standard
Standard values require transfer when using other standards

Technical Parameters

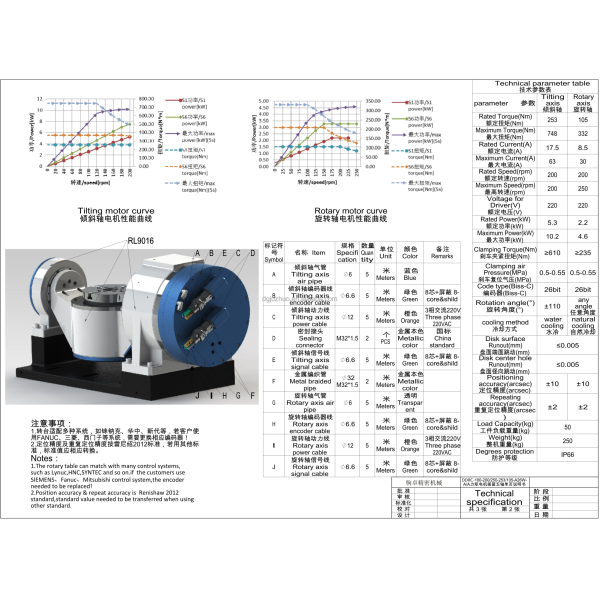

DDRC-180 5-Axis Machining Center technical diagram

DDRC-180 machine specifications and dimensions

Installation requirements and specifications

Safety features and compliance information

Product Tags:

5 Axis CNC Rotary Table

Precision Aerospace Rotary Table

5 Axis CNC Position Rotary Table
