DEK 185253 NextMove EB0462A01 Controller Board for SMT Printer

DEK 185253 NextMove EB0462A01 Controller Board for SMT Printer

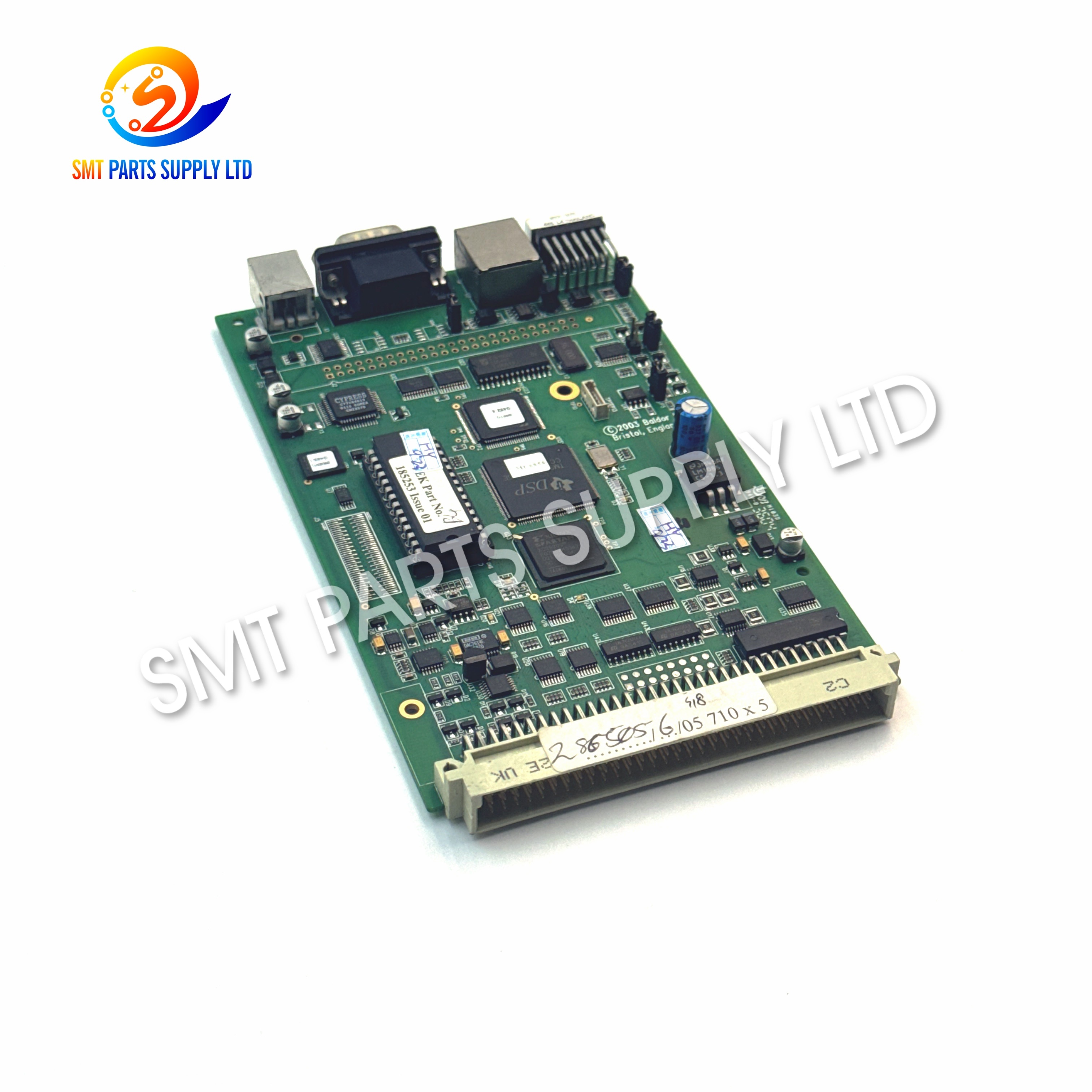

The DEK 185253 NextMove EB0462A01 Controller Board is an electronic control component used in compatible DEK SMT screen and stencil printing equipment. Installed within the printer control system, the board assists with machine motion management, command processing, communication, and coordinated operation between related control components.

In an SMT production environment, the solder paste printer must repeatedly complete accurate mechanical movements before every PCB enters the placement process. A reliable controller board is therefore important for maintaining consistent machine response and normal production cycles.

The 185253 controller card is mainly supplied for machine maintenance, replacement of failed control boards, refurbishment projects, and spare-parts inventory. EB0462A01 may appear as an additional board identification reference depending on the hardware version.

Because DEK machines may contain different hardware revisions, customers are strongly advised to confirm the original board number, PCB label, connectors, and machine configuration before ordering.

Main Product Information

Cause — Why a Controller Board May Require Replacement

SMT printing equipment normally operates for long production hours and completes thousands of repetitive cycles. Over time, electronic control components can experience aging or instability.

Several conditions can contribute to controller-board problems.

1. Long-Term Electronic Component Aging

Capacitors, connectors, integrated circuits, solder joints, and other PCB components can gradually deteriorate after extended operating periods. Aging does not always result in immediate failure. In many cases, the machine first shows intermittent alarms or unstable behavior.

2. Power Supply Fluctuation

Unexpected voltage variation, unstable power input, grounding problems, or abnormal shutdown conditions may affect electronic control boards.

A machine may continue operating after a minor electrical disturbance but later develop communication or controller-related problems.

3. Dust and Contamination

Industrial SMT environments may contain dust, solder-paste residue, or other contamination. If these materials accumulate around electronic components or connectors, electrical performance can be affected.

4. Connector or Contact Problems

Loose connectors, oxidized contacts, damaged cables, or poor connection between the controller board and peripheral devices can produce symptoms similar to board failure.

For this reason, cables and connectors should also be inspected during troubleshooting.

5. Machine Vibration

Continuous printer movement can create long-term mechanical vibration. Poorly secured connectors or aging solder joints may become unstable after extended operation.

6. Hardware Failure

If troubleshooting confirms that the existing controller board is defective, replacing it with a compatible DEK 185253 NextMove controller board can be an efficient maintenance solution.

Typical Fault Symptoms

A controller-board problem may be associated with several machine symptoms.

These symptoms do not automatically prove that the 185253 board is defective. A qualified technician should perform systematic troubleshooting before replacement.

Solution — Controller Board Replacement for Printer Maintenance

When the original printer controller has been confirmed as faulty, installing a correctly matched replacement board can help restore the control system without replacing the complete printer.

The 185253 EB0462A01 controller board is suitable for customers maintaining existing DEK production equipment and can be used as a replacement component according to the machine configuration.

A typical replacement procedure includes:

1. Record the machine model and original board identification.

2. Shut down the equipment according to maintenance procedures.

3. Disconnect the machine from its power source.

4. Observe ESD protection procedures.

5. Photograph the original board and connector positions.

6. Remove the defective controller card carefully.

7. Compare the replacement board with the original unit.

8. Confirm connector position and hardware revision.

9. Install the replacement card.

10. Reconnect all cables securely.

11. Restart the machine and check communication.

12. Test machine movement before returning to production.

Installation should be carried out by personnel familiar with SMT printer maintenance.

Specifications

Application

The DEK 185253 controller board is primarily used in SMT manufacturing environments where DEK stencil or screen printers remain in active production.

SMT Production Lines

Solder paste printing is normally the first major process in an SMT assembly line. Stable printer operation helps maintain continuous PCB flow between printing, inspection, placement, reflow, and downstream processes.

Printer Repair

Maintenance departments can use the board to replace a damaged or unstable controller after the fault has been confirmed.

Preventive Spare Parts Inventory

Factories operating older SMT printing equipment often keep important electronic boards in stock because an unexpected board failure may stop an entire production line.

Keeping a compatible controller available can reduce dependence on emergency sourcing.

Machine Refurbishment

Used SMT equipment suppliers and maintenance companies may require controller boards when refurbishing existing screen printers.

Electronics Manufacturing Services

EMS factories often operate multiple generations of SMT equipment. Maintaining suitable electronic spare parts can improve equipment availability and simplify long-term maintenance planning.

Application Industries

How It Works

The controller board forms part of the electronic control architecture of the SMT printer.

During normal printing operation, the machine control system must coordinate numerous actions in a defined sequence. Depending on machine configuration, these can include PCB transfer, board positioning, stencil-related movement, printing mechanism movement, and other controlled machine functions.

The controller processes commands from the printer control system and participates in coordinating the required machine movement.

A simplified working sequence can be described as follows:

Machine Command → Controller Processing → Motion Coordination → Mechanical Operation → Status Feedback

When the control board operates correctly, commands are processed and related components respond according to the machine program.

If the board develops an electronic or communication fault, one or more machine movements may fail to complete correctly. The equipment may stop, display alarms, or fail during initialization.

Replacing a confirmed defective board with the correct compatible controller restores the necessary hardware platform for normal machine operation.

Controller Function Overview

How To Choose

Correct board identification is especially important when purchasing electronic spare parts for older SMT equipment.

Two boards may look very similar while using different revisions, configurations, or connector arrangements.

Before ordering DEK 185253, confirm the following information.

1. Check the Main Part Number

The original board should show:

185253

This is the primary identification reference for the product.

2. Check EB0462A01

If your existing board is marked EB0462A01, send a clear photograph of the label for comparison.

Do not rely only on the appearance of the PCB.

3. Check the PCB Revision

Board revisions can differ between machines or production periods.

If your board contains REV information, provide it before ordering.

4. Confirm Machine Information

Send the machine model and, when available, machine serial number or configuration information.

This helps reduce the possibility of ordering an incompatible control card.

5. Compare Connectors

Check connector quantity, connector location, PCB layout, mounting position, and visible component arrangement.

6. Send Photos

For fastest identification, provide:

Why Accurate Identification Matters

Replacing a controller board is different from purchasing a simple mechanical spare part.

Compatibility may depend on more than one number. Hardware revision, firmware environment, machine generation, or system configuration may also affect installation.

For this reason, we recommend checking the original controller instead of purchasing according to a photograph alone.

Our identification process can be based on:

• Main part number

• Alternative PCB number

• Revision

• Machine model

• Connector arrangement

• Original board photographs

Providing this information before shipment helps improve order accuracy and reduces unnecessary replacement time.

Maintenance Recommendations

Electronic controller boards should be handled carefully during storage and installation.

ESD Protection

Use suitable antistatic protection when touching the PCB.

Keep the Board Dry

Store electronic components in a dry, clean environment.

Avoid Direct Contact

Do not touch exposed electronic contacts unnecessarily.

Check Connectors

Before replacing the controller, inspect cables and plugs for damage or contamination.

Verify Power Conditions

Abnormal supply voltage should be corrected before installing another board. Otherwise, a replacement component may experience the same problem.

Test Before Production

After replacement, test machine initialization and controlled movement before beginning normal manufacturing.

Purchasing Checklist

FAQ

Q1: What is the DEK 185253 EB0462A01 board used for?

The 185253 is a NextMove controller board used within compatible DEK SMT printing equipment. It forms part of the printer control system and supports machine control, communication, and coordinated operation during normal printing cycles.

Q2: Is EB0462A01 the same reference as DEK 185253?

EB0462A01 may appear as an alternative board reference associated with 185253. However, PCB revisions can vary, so the actual label, revision, connector arrangement, and machine configuration should always be checked before ordering.

Q3: Can I order this board using only the machine model?

Providing the machine model is helpful, but we recommend also sending clear photographs of the original controller, especially the part-number and revision labels. This provides a more reliable basis for compatibility verification.

Q4: What information should I provide for quotation?

Please provide the required quantity, DEK part number 185253, EB0462A01 reference if shown, board revision, machine model, destination country, and photographs of your original controller. This allows faster identification and quotation.

Q5: Can this controller be used to repair a printer with motion alarms?

It may be suitable if troubleshooting confirms that the existing controller board is responsible for the fault. Motion or communication alarms can also originate from cables, drives, motors, sensors, power supplies, or connections, so diagnosis should be completed before replacement.

Contact Us

Looking for a DEK 185253 NextMove EB0462A01 Controller Board for SMT printer maintenance?

Send us your original board photos, part number, revision, machine model, required quantity, and destination country. Our team can check the identification information before quotation.

We supply SMT printer control boards and related spare parts for equipment maintenance, repair, and production support.

Send your inquiry today for price, availability, condition, and delivery information.
