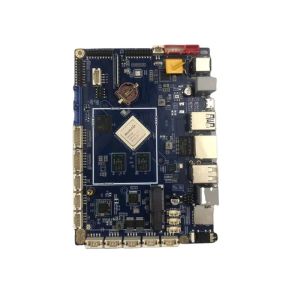

Embedded POS Machine Motherboard with 2G/4G/8G DDR4 Memory Smart
Control PCB Board
This Embedded POS Machine Motherboard is equipped with the Rockchip
Micro RK3568 high-performance processor and rich interface
configurations, providing a stable and reliable hardware core for
intelligent terminals in industries such as retail, catering, and
logistics, fully meeting the diversified needs of modern business
scenarios.
The performance cornerstone of the motherboard comes from the
RK3568 quad core Cortex-A55 64 bit processor, which can easily meet
the multitasking requirements of POS systems with a maximum
operating frequency of 2.0GHz. Whether it's product QR code
recognition, transaction data encryption, or stable operation of
multi application backend, smooth response can be achieved,
avoiding operational lag during peak hours, and creating an
efficient transaction experience for merchants and consumers. This
processor combines performance and energy efficiency advantages,
effectively controlling power consumption while ensuring computing
power, extending the battery life of terminal devices, and reducing
long-term usage costs.
In terms of USB interfaces, the motherboard has 4 built-in USB 2.0
interfaces, 2 external USB 2.0 interfaces, 1 USB 3.0 interface, and
1 OTG interface, meeting the expansion needs of POS terminals with
"one core, multiple connections". The USB 3.0 interface brings
high-speed data transmission capability, greatly improving the
efficiency of operations such as ticket printing and transaction
record export.
The motherboard provides a total of 7 serial ports, supporting
various types of combinations such as TTL (1-7), RS232 (0-6), RS485
(0-2), etc. This flexible configuration can accurately match the
communication needs of different industry peripherals, whether it
is connecting industrial grade sensors for inventory monitoring or
connecting with traditional cash register devices for data
exchange, it can seamlessly adapt and reduce the compatibility cost
of device upgrades.
Key Features
- Product Name: POS Motherboard
- SPI Interface Support
- RAM Capacity: 2G/4G/8G DDR4 Optional
- Power Supply: DC 12V-24V Input
- Video Output: HDMI
- Camera: USB Camera Support
Technical Specifications
| Operating Temperature | -20°C to 80°C |
| SPI | Supported |
| NPU | 1TOPS |
| Wi-Fi | 2.4G/5G WiFi with Bluetooth |
| Processor Type | RK3568 Quad-core 64-bit Cortex-A55, Max 2.0GHz |
| Camera | USB Camera |
| GPU | ARM G52 2EE with OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
| Audio Output | Stereo with Dolby Sound Effect |
| Audio Ports | 3.5mm Headphone Jack, 2P2.0 Microphone, 4P2.0 Speaker |
| RTC | Power-off Clock Memory with Automatic Power On/Off |
Applications
As the hardware core for intelligent cash registers, this POS
motherboard with high-speed transmission and integrated MIPI
interface design is essential for retail digital transformation.
Widely used in supermarkets, convenience stores, and self-service
terminals, it supports MIPI-DSI screen interface with single and
dual screen configurations, delivering 1080P high-definition
display with smooth touch response and vertical screen
customization options.
Featuring quad-core RK3568 processors (maximum 2.0GHz) and
integrated communication modules (WiFi, Bluetooth, 4G), the
motherboard adapts to networks of over 200 operators worldwide.
Support and Services
- Troubleshooting assistance for hardware and software issues
- Guidance on installation and setup procedures
- Firmware updates and compatibility information
- Warranty coverage and repair services
- Online resources including FAQs, user manuals, and driver downloads
Packaging and Shipping
Each POS Motherboard is carefully packaged in sturdy cardboard
boxes with protective bubble wrap to prevent transportation damage.
Orders are processed within 24 hours and shipped via trusted
carriers for fast, secure delivery.
Frequently Asked Questions
What is the brand name of the POS Motherboard?
The brand name is JEWELLED.
What is the model number of the POS Motherboard?
The model number is JLD-P01.
Where is the POS Motherboard manufactured?
It is manufactured in China.
What are the packaging details?
The motherboard is packaged in 1pc/bubble Bag, with proper quantity
in a carton.
What is the delivery time?
Sample orders typically deliver in 3-5 working days.
