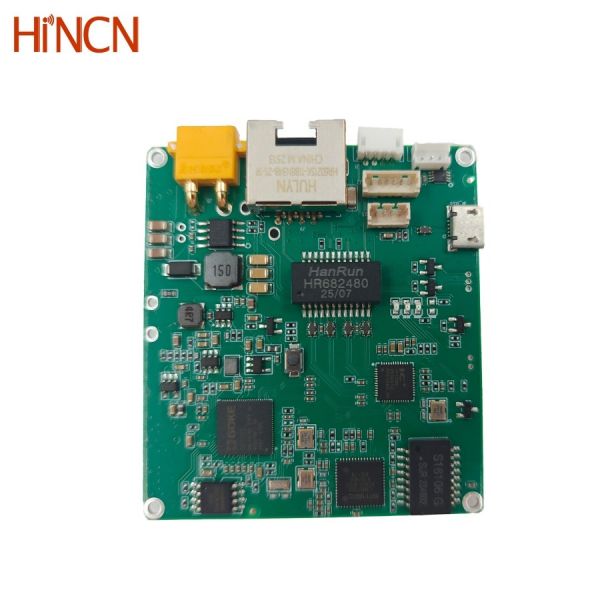

HCL5-M video data transmitter and receiver module was designed for wireless HD video transmission with dual wireless data links. This module works at 800MHz, 1.4GHz and 2.4GHz bands, the stability of signal transmission is ensured through the frequency hopping (FHSS) technology.
| Name | Latest COFDM MIMO Video Data Transmitter and Receiver Module Integrated TRX Systems |
|---|---|
| Modulation | TDD OFDM |
| Model number | HCL5-M |
| Frequency | 806~826MHz, 1428~1468MHz, 2402~2482MHz |
| FHSS | Support |
| Bandwidths | 1.4/3/5/10/20MHz |
| Throughput | Maximum 30Mbps@20MHz |
| RF Transmission Power | 25±2 dBm+10W external power amplifier |
| Constellation | QPSK, 16QAM, 64QAM self adaption |
| Sensitivity | -106dBm (2.4GHz 1Mbps), -108dBm (1.4GHz 1Mbps), -108dBm (800MHz 1Mbps) |
| Ethernet ports | 2 * Ethernet ports for IP data transmission |
| Serial ports | 3 * RS232/3 * TTL for serial data transmission |
| Transmission Range | Up to 150km LOS (UAV-to-ground) |
| Management | Web UI and Control Uart |
| Encryption | AES128 |
| Networking Mode | Point to Point, Point to Multipoint, Relay, Mesh |
| Power Consumption | <40W |
| Modem Dimensions | 58*64*13mm |
| Modem Weight | 32g |
| Working Temp. | -20℃ ~ +65℃ |
| Storage Temp. | -40℃ ~ +80℃ |
| Power in | XT30PW-M connector, DC in: 7~30V |
|---|---|
| Ethernet 1 | 4Pin ZH1.5mm connector |
| Ethernet 2 | RJ45 connector |
| Data uart1 | 3PIN ZH1.5mm connector, TTL 3.3V |
| Data uart2 and uart3 | 6PIN PH1.25mm connector, uart3 works as control uart and data uart, TTL 3.3V |
| Audio input and output | 4PIN PH1.25mm connector |
| USB | Micro USB connector, for software upgrading |
| Switch | TX/RX control signal for outside power amplifier |
| Main-Antenna | TX/RX antenna port, IPEX |
| Second-Antenna | RX antenna port, IPEX |
| 12V out | On board 12V out (<150mA), for cool fan power supply |
| Power Led | Red, light on when normally powered |
| Node Led | Blue, light on when the module works as central node |
| Link Led | Light off - node not linked; Red - linked with weak signal; Orange - linked with medium signal; Green - linked with strong signal |
The video data transmitter and receiver module supports two operating modes: Access Node or Central Node. It can be managed through Web UI or AT command via uart3. The module supports up to 16 Access Nodes connected to a Central Node, all sharing the maximum 30Mbps@20MHz throughput bandwidth. Uplink and downlink stream ratio can be controlled through web UI or AT command.
|
