| Categories | MIPI Camera Module |
|---|---|
| Brand Name: | Sinoseen |
| Model Number: | SNS51734-V1.0 |
| Certification: | RoHS |
| Place of Origin: | Shenzhen,China |
| MOQ: | 3 |
| Price: | 10-100USD、negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
| Delivery Time: | 2-3weeks |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Type: | 5mp camera module |
| Sensor: | 1/5 inch |
| Resolution: | 5MP 2592(H) x 1944(V) |
| Dimensions: | (customizable) |
| Lens FOV: | 80°(optional) |
| Focus Type: | fixed focus |
| Interface: | mipi camera module |
| Feature: | high-definition |
| Company Info. |
| Shenzhen Sinoseen Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

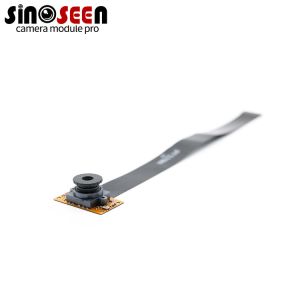

The AR0521 5MP MIPI camera module provides high-detail imaging with 2592x1944 resolution and HDR support for clear images under varying lighting conditions. It is perfect for AI vision, robotics, and embedded projects requiring precise imaging.
The module includes adjustable settings such as exposure, brightness, contrast, and white balance for optimized image quality. Its MIPI interface ensures fast and stable connection to embedded boards and single-board computers.
Designed with a fixed-focus M12 lens mount, 80° DFOV, and low power consumption, it provides reliable, long-term performance across multiple platforms including Windows, Linux, macOS, and Android.
2592x1944 resolution for high-detail imaging
HDR sensor captures a wide range of light intensities
MIPI interface for embedded and SBC integration
Adjustable exposure, brightness, contrast, white balance
Fixed-focus M12 lens mount, 80° DFOV
| Model No | SNS51734-V1.0 |
| Sensor | 1/5’’ inch |
| Pixel | 5 Mega Pixel |
| Most effective pixels | 2592(H) x 1944(V) |
| Pixel Size | 1.2µm x 1.2µm |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| S/N ratio | 36dB |
| Dynamic range | 72 dB @ 8x gain |
| Sensitivity | 690mV / lux-sec |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure |
| Lens | TTL: 23.89MM |
| Lens Size: 1/3 inch | |
| DFOV: 80° | |
| Thread Size: M12*P0.5 | |
| Audio frequency | Optional |
| Power supply | mipi |
| Power consumption | DC 5V, 200mW |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Support |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
