| Categories | Barcode Scan Engine |
|---|---|
| MOQ: | 1 |
| Price: | 10 |
| Model NO.: | DE2290 |
| Interface Type: | USB |
| Scan Speed: | 35cm/S |
| Scan Element: | CMOS |
| Resolution Ratio: | 3mil/0.076mm |
| Resolution: | 300,000 Pixel, 640*480 |
| Scan Mode: | Manual, Continuous, Auto Sense, Command Control |
| Print Contrast: | 20% |
| Power Supply: | DC 3.3V, 200mA Work |
| FFC Cable: | 5cm |
| Drop Height: | 1.2m |
| Weight: | 3.5g |
| Depth of Field: | 40-530mm |
| Dimensions: | 21.40 (L) 15.40 (W) 10.70 (H)mm |
| Motion Tolerance: | 65cm/s |
| Company Info. |
| Shenzhen DYscan Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

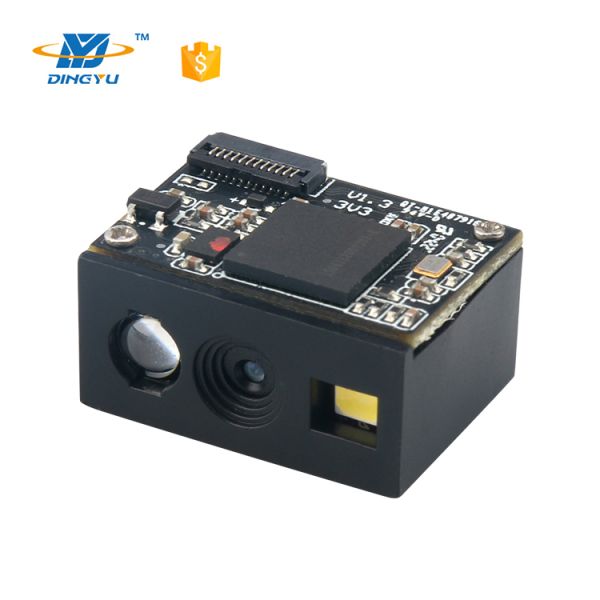

High Quality USB Fixed Kiosk 2D Good payment Barcode Scanner
Module
| Weight | 3.4g(without cable) |
| Size | 21.40±0.1mm (L) × 15.40mm±0.1mm (W) × 10.70±0.1mm (H) |
| Interface | USB,USB-com(Need driver) ,TTL (USB protocol:Full Speed ,USB 2.0) |
| Light Source | Lighting: white LED(Automatically adjust brightness according to distance) Aiming: Red LED,wavelength coverage 525nm |
| CMOS | 1280*800 CMOS |
| CUP | ARM32-bit |
| startup time | 750ms |
| Resolution | ≥3mil/0.076mm(PCS90%,CODE 39) |
| Depth of field | 30-500mm |
| Scan mode | Trigger mode,Auto sense mode, Command control |
| prompting mode | LED indicating lamp,buzzer |
| Reading angle | Roll:±360°,Pitch:±60°or greater,Yaw:±70°or greater) |
| visual angle | Horizontal 40°× Vertical 30° |
| Motion tolerance | 65cm/s |
| Power input | 3.3V~5V (DC5V is recommendation) standby current:47mA,Decoded average current:180mA |
| Print contrast | 20%PCS |
| Ambient Light | 70000Lux |
| Symbologies | 1D:Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of
5 Industrial 25 code,Matrix 2 of
5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1
databar,GS1 databar limited,GS1 databar
expanded,ISBT,MSI,Febraban(Brazil bank code) 2D:PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec |
| operating temperature | -20ºC to 55ºC |
| storage temperature | -20ºC to 60ºC |
| Humidity | 5% to 95%(non-condensing) |
| Transport vibration test | 10H@125RPM |
|
