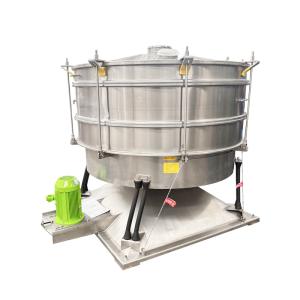

High-yield stainless steel food-grade tumbler sieve grain separator

Product Introduction

The swing sieve is an efficient and precise screening equipment. It operates based on the principle of artificial swinging and is driven by an eccentric shaft to generate three-dimensional swinging motion, which can simulate the reciprocating and bouncing actions of manual screening.
It has high screening accuracy and large processing capacity. It can be adapted to multi-layer screen meshes and can separate materials of various particle sizes. Moreover, it causes little wear to the materials and is suitable for the fine screening needs in industries such as food, medicine, and chemicals. Compared with traditional vibrating screens, it has more obvious advantages in handling materials prone to clogging the screen.

Working principle

Power drive: The eccentric shaft rotates under the drive of the motor, converting the circular motion into the inclined swinging motion of the screen body, providing the core motion source for screening;
Three-dimensional motion: Under the action of the power, the screen body simultaneously generates combined motions of forward and backward reciprocation, left and right swaying, and slight up and down jolting, allowing the materials to spread forward in a spiral pattern on the screen surface, avoiding local accumulation;
Classification and separation: During the movement, particles smaller than the sieve holes quickly pass through the sieve net and become the screened material, while particles larger than the sieve holes continue to advance along the screen surface and become the screened material. If multiple layers of sieves are configured, it can also simultaneously achieve the separation of multiple particle size grades.

Product Features

1. Precise screening: The three-dimensional oscillation enables the materials to fully contact the screen mesh, meeting the requirements for fine material screening;
2. No mesh blockage, efficient processing: The materials move in a spiral manner, with high utilization rate of the screen surface, and the problem of mesh blockage caused by cohesive and sticky materials is improved;
3. Protecting materials: The gentle movement reduces collisions, protecting the integrity of crystals and fragile materials;
4. Multi-layer efficiency: Supports 1-5 layers of screen mesh, allowing multiple particle size grades to be separated with a single feed;
5. Low noise and durable: Low operating noise, small mechanical wear, and longer service life;
6. Wide application: Suitable for fine screening scenarios in multiple fields such as food, chemical, and mining.
