| Categories | LCD Display Module |
|---|---|
| Type: | TFT |
| Display Size: | Standard, 0.96~10.1 inch |
| Supplier Type: | Industrial, Factory |
| Place of Origin: | Guangdong, China |
| Brand Name: | Genyu |
| Resolution: | / |
| Brightness: | / |
| Operating Temperature: | /, -30~+80℃(max) |
| Brand: | / |
| Display Type: | / |
| Mounting Type: | / |
| Screen Size: | / |
| Communication Interface: | / |
| Driver Ic: | / |
| Product Name: | Small TFT lcd display |
| LCD Type: | TN/ IPS |
| Panel Sizes: | 0.96~10.1 inch |
| Pixels/Resolutions: | 128x160, 176x220, 320x240, 480x320, 480x272, 800x480... |
| Viewing direction: | 6 O'clock, 12 O'clock, All |
| Driver IC: | ST/ ILI Series, optional |
| Backlight Type: | With, LEDs |
| Interface Type: | RGB, SPI/I2C, 8/16/24 bit Parallel |
| Input voltage: | 2.8~3.3 V |
| Price: | $1.20-8.60/pieces |
| Company Info. |
| Shenzhen Genyu Optical Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Products:
LCD/ TFT /OLED display, LCM, Touch screen

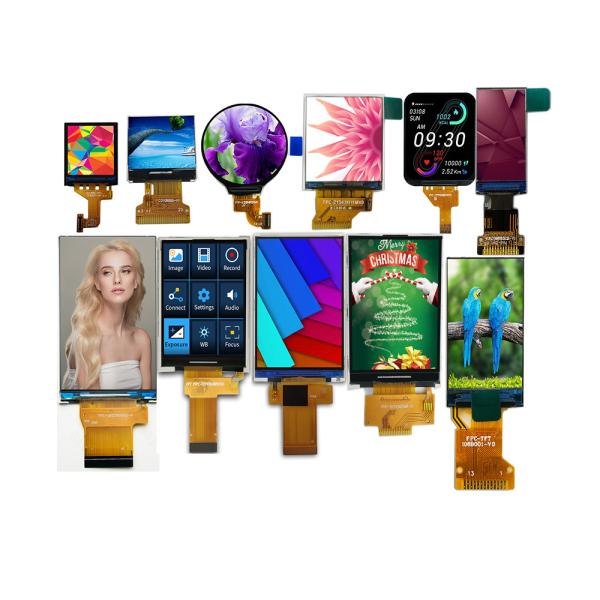

A. TFT LCD Display Specifications:
| 1 | Brand | Genyu |
| 2 | Product Name | 0.96-7.0 Inch TFT LCD, TFT Display |
| 3 | Display Mode | TN/ IPS |
| 4 | Panel Size | 0.96", 1",1.06", 1.28", 1.3", 1.44", 1.54", 1.77", 1.8", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 3.97", 4.3", 5.0", 7.0", etc. |
| 5 | Dot Matrix | 80x160, 96x128, 128x128, 128x160, 176x220, 240x240, 240x284, 240x320, 320x480, 379x960, 480x272, 480x800, 480x854, etc. |
| 6 | Viewing Direction | 6 O'clcok, 12 O'clock, All Direction |
| 7 | Components | TFT LCD, Driver IC, FPC, Backlight, Touch Panel(optional) |
| 8 | Backlight Type | LEDs, Parallel |
| 9 | Interface Type | RGB, 8/16/24-bit Parallel MCU, I2C, SPI |
| 10 | Drive IC | ST/ ILI Series, compatible |
| 11 | Connector | COG+FPC, customized |
| 12 | Luminance | 180/ 200/ 250/ 300/ 500/ 1000 cd/m2, Optional |
| 13 | Operating Temperature | -30~+80 ℃( max.) |
| 14 | Voltage | 2.8~5.0V |
| 15 | RoHS Compliant |
B. Some Models for refernece
a. TFT Display no touch
 |  |  |
| 0.96" TFT, ST7735 | 1.28" TFT, GC9A01 | 1.44" TFT, ST7735 |
 |  |  |
| 1.54" TFT, ST7789 | 1.77" TFT, ST7735 | 1.8" TFT, NV3030B |
 |  |  |
| 2.4" TFT, ST7789 | 2.8" TFT, ILI9341 | 2.95" TFT, ST7701 |
 |  |  |
| 3.13" TFT, ST7701 | 3.2" TFT, ILI9341 | 5.0" TFT, OTD9960A+OTA7001A |
b. TFT LCD with Touch
 |  |  |
| 2.4 Inch TFT with Resistive Touch | 4.3 Inch TFT with CapacitiveTouch | 7 Inch TFT with Capacitive Touch |
For more details, pls just contact us, THANKS!
Payment
T/T, Western Union. Paypal and etc...
Delivery
Items will be shipped within 3 working days after payment is
received.
By DHL/UPS/FedEx: about 5-7 working days.
By EMS/POSTNL: about 15-20 working days.
Packaging
1. Electrostatic Bag/ Anti-static Trays/ Plastic Pallet/ Air Bubble Film/
2. Suitable Carton Boxes.
The packing is able to withstand rough handling.
|
