PVC Profile Extrusion Line | Fine Control Suitable for Various Applications

Categories PVC Profile Extrusion Line
Brand Name: LB
Model Number: LB-1240
Certification: CE,ISO
Place of Origin: ZHANGJIAGANG
MOQ: 1 SET
Price: Negotiable(USD,EUR)
Payment Terms: L/C,T/T
Supply Ability: 15 SETS PER MONTH
Delivery Time: 45 WORKING DAYS
Packaging Details: STANDARD PACKAGE
Function: special for SPVC
Pipe Umbers: DOUBLE PIPE
Coolingmethod: Water cooling tank
Machinelength: 10-20 meters
Automationlevel: Semi-automatic to fully automatic
Motor: 22kw
Frame Wide: 300mm wide
Calibration Table: EIGHT MTERS LONG
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

PVC Profile Extrusion Line | Fine Control Suitable for Various Applications

PVC Profile Extrusion Line | Fine Control Suitable for Various Applications
The window and door profile production line is widely used in the decoration industry. With drawing sections of the window and door profile, tailored solutions and molds will be created to meet specific requirements.
Processing Process
The complete process flow of this production line includes:
  • PVC powder + additive → mixing

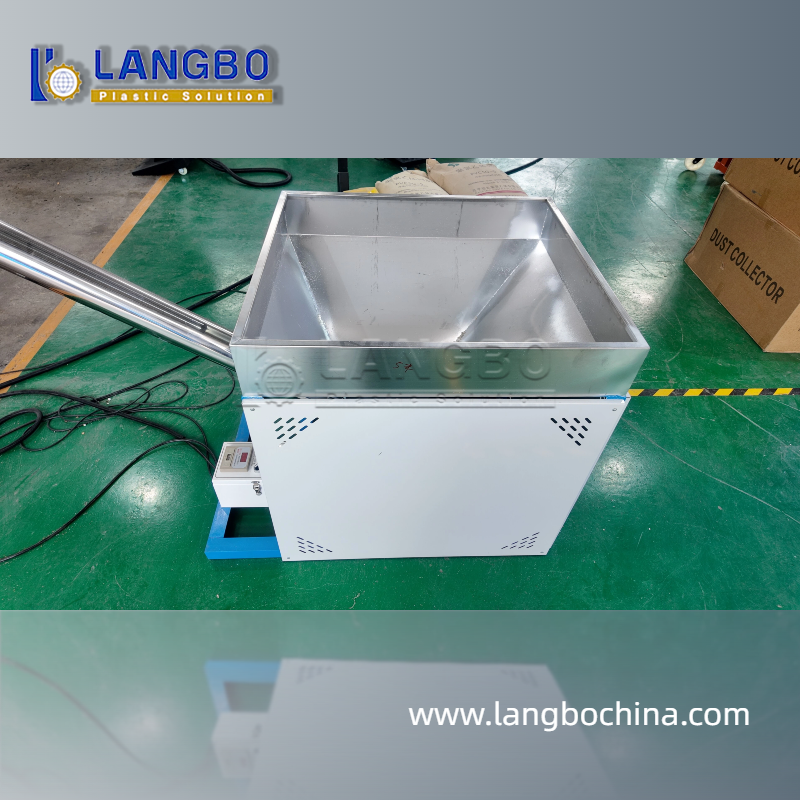

  • Material feeder → conical twin screw extruder
  • Mold and calibrator → vacuum forming table
  • Haul-off machine → cutting machine → stacker
This window and door profile extrusion line features a conical twin screw extruder suitable for both PVC powder and PVC granules. The integrated degassing system ensures excellent material plasticization, while high-speed molds significantly increase productivity.
Technical Specifications
ModelLB180LB240LB300LB600
Max width of products (mm)180240300600
Screw ModelSJ55/110SJ65/132SJ65/132SJ80/156
Motor power22KW37KW37KW55KW
Cooling Water (m³/h)57710
Compressor (m³/h)0.20.30.30.4
Total length (m)18m22m22m25m
Product Details
Mold for Window and Door Profile
Optimized channel design ensures high flow performance. Each mold undergoes rigorous inspection by experienced engineers to guarantee precision and stable operation.

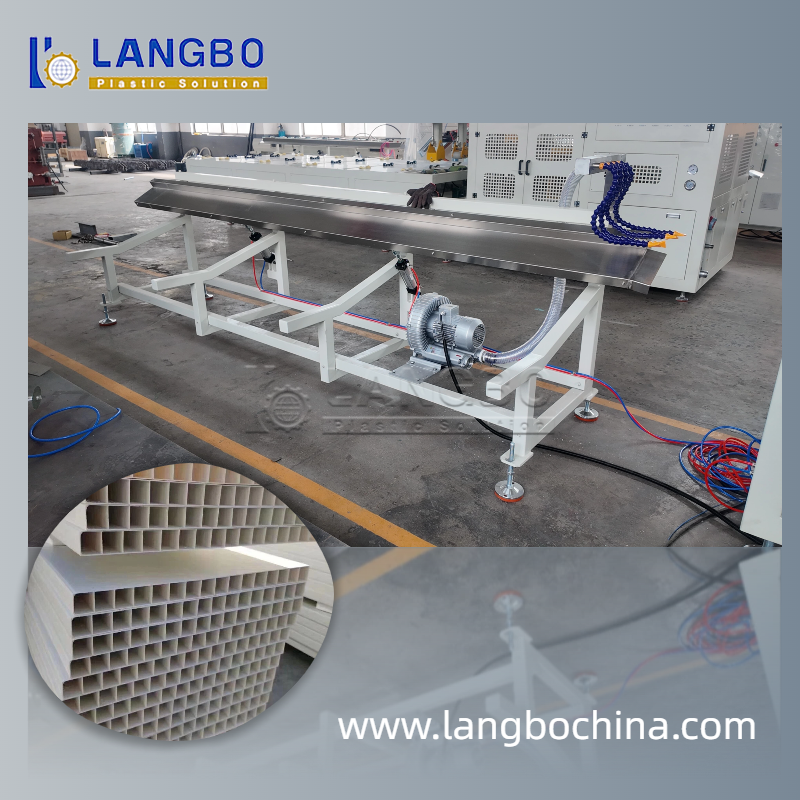

Calibration Table
Equipped with advanced water circuit and vacuum systems, the special layout enables rapid shaping and cooling to produce excellent window and door profiles. The stable steel frame and high-quality SUS 304 stainless steel construction ensure long machine lifetime. Multiple water separators are available.

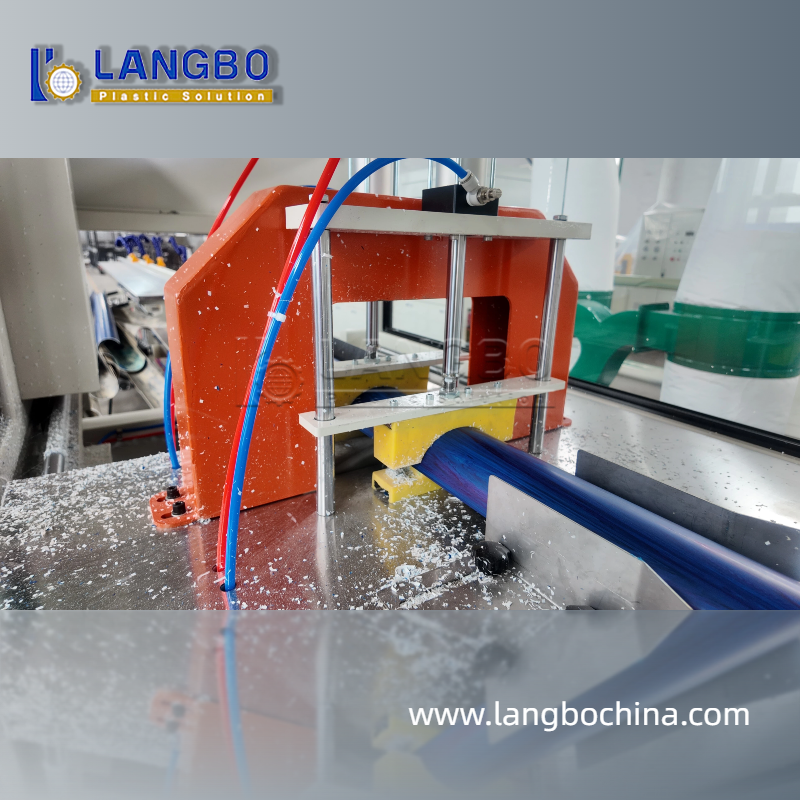

Haul-off and Cutting Unit
Each crawler track is independently motor-driven, providing sufficient hauling force with even distribution along the tracks. Highly synchronized hauling speed and force ensure consistent product quality. Direct cutting technology is applied for optimal performance.
Stacker
The automatic stacker securely holds produced window and door profiles. It operates with periodic flipping action to efficiently pull profiles down for collection.
