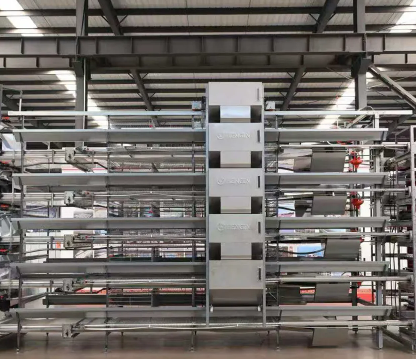

Commercial Poultry Cage System Featuring Durable Plastic Feed Pan

Basic Info.

Model NO.

FG14

Installation

Ground Installation

Application

Farm

Product Name

Layer Stacked Automatic Cage Rearing System

Feature

Practical, Durable, Cheap

Warranty

1 Year

Computerized

Install

on-Site Installation

Life Span

15-20years

Model No.

Feeding Pipe Specification

Power Source

Electric

Transport Package

Wooden Packaging

Specification

The diameter of feeding pan is 330mm;

Trademark

kxd

HS Code

84362900

Production Capacity

3000

Packaging & Delivery

Package Size

600.00cm * 200.00cm * 200.00cm

Package Gross Weight

30.000kg

Lead Time

30 days (1 - 30 Pieces)
To be negotiated ( > 30 Pieces)

Product Description

Broiler automatic feeding system include driving device, hopper,conveying pipe, auger, pans, suspension lifting device, anti-perchingdevice and feed sensor. The main function of the system is to transportthe feed from the hopper into each feeding pan to ensure the eating of thebroiler and automatically controlled by the level sensor's direction whichgive the order to motor to make it working or stop. The leveling deviceensure the different day chicken get feed freely and adjusting accordingto its size. The length of one feeding line is according the house to use one line which driving frombeginning of house or arrange two lines which driving from middle of house. The driving motor brand isfrom European. The hanging and fastening parts we use are stainless steel or hot GI.

Broiler feeding pan Applications

Applications:

Target Applications:
This system is engineered for modern, high-efficiency broiler production across various scales:

1.Large-Scale Commercial Farms: Ideal for enclosed, climate-controlled houses with 10,000+ birds, ensuring uniform feed distribution for consistent growth.
2.All-In-All-Out Operations: The height-adjustable feature and versatile pan design perfectly support single-age flock management from start to finish.

3.Farms Focused on Feed Efficiency: Dramatically reduces feed waste through its precise control and anti-spillage design, directly lowering the biggest operational cost—feed.
4.Operations Prioritizing Animal Welfare: Promotes bird health by preventing injuries and ensuring all birds have equal, stress-free access to fresh feed.

Key Benefits:

1.Labor Savings: Full automation eliminates manual feeding, drastically reducing daily labor costs.
2.Improved Feed Conversion Ratio (FCR): Consistent feed availability and reduced waste lead to better growth rates and lower cost per kilogram of meat.
3.Enhanced Bird Uniformity: Even feed distribution results in a more uniform flock size at market time.
4.Durability & Low Maintenance: Built with premium materials (European motor, stainless steel parts, anti-aging PP) for long-term reliability in harsh conditions.
Operational Flexibility: Adaptable layout and mounting options suit different house designs and management practices.

Configuration:

Core System Components & Function

Components: Driving device, hopper, conveying pipe, auger, feeding pans, suspension lifting device, anti-perching device, feed level sensor.
Primary Function: Automatically transports feed from the central hopper to each individual feeding pan, ensuring consistent feed availability for the entire broiler flock.

Control Logic: An automated feed-level sensor monitors pan status and sends signals to start or stop the European-brand drive motor, optimizing energy use and ensuring a constant feed supply.

Height Adjustment: The integrated leveling device allows the entire feeding line to be raised or lowered. This ensures easy access for birds at all growth stages, from chicks to market-ready broilers.

Layout Flexibility: The system can be configured as a single line driven from one end of the house or as two lines driven from the center, adapting to various house designs and lengths.

Construction Quality: Hanging and fastening components are made from durable stainless steel or hot-dip galvanized (GI) steel to resist corrosion in the farm environment.

Configuration:

Diameter: 330mm
Material: High-quality, anti-aging PP (Polypropylene) with added antioxidants for extended outdoor lifespan.
Feed Grills: 14 pieces per pan to regulate feeding.
Stocking Density: 40-50 broilers per pan.
Feed Control System:

Main Line Control: Features 6 adjustable feed gates on the main conveying pipe for precise regional feed management.
Pan-Level Control: Each pan has an individual feed gate switch that accurately controls the amount of feed dropped until it completely closes, minimizing waste.

Innovative Pan Design Features:

Removable Base Plate: Can be detached and placed on the floor as a starter feeder for day-old chicks.
V-Shape Corrugated Bottom: Reduces feed residue, keeps feed fresher, and discourages chicks from sitting or resting in the pan.
Tilted Inner Edge: Guides feed toward the center, significantly reducing spillage and waste.
Smooth, Inward-Angled Outer Edge: Prevents crop injuries and allows for natural, comfortable feeding posture.
Special Feed Holes: Designed to accommodate the feeding behavior and feed particle size preferences of broilers at different ages.
Mounting Options: Fixed type or 360° free-swing type for flexibility during cleaning and bird management.
Color Options: Orange & White or Red & White.

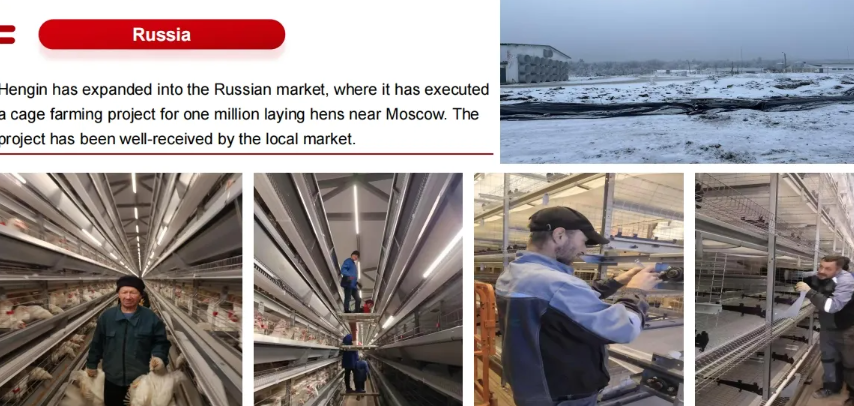

Reference Projects

Other Products

Chick cage

Egg collection system

manure removal system

After Sales Service

Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

Company Profile

Why Choose Us?

Other Products

OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions

Broiler Cage Equipment
Breeder Cage Equipment
Environmental Control Equipment
Dormitory Supporting Equipment
On-site Supporting Equipment

FAQ

Q1: What are the main components of this feeding system, and how does it work?
A: The system consists of a drive unit, hopper, conveying pipe with an auger, feeding pans, a height-adjustable suspension, anti-perching devices, and a feed level sensor. It works by automatically conveying feed from the central hopper to each pan. A sensor monitors feed levels and controls the motor to start/stop, ensuring pans are never empty while optimizing energy use.

Q2: What are the key advantages of this system over manual or chain feeding systems?
A: Key advantages include: 1) Major Labor Reduction: Fully automated operation. 2) Superior Feed Efficiency: The pan's anti-spillage design (tilted edge, V-bottom) minimizes waste. 3) Improved Bird Welfare & Uniformity: Consistent feed access for all birds reduces stress and promotes even growth. 4) Flexibility: Height-adjustable and suitable for different house layouts.

Q3: What is the pan made of, and how durable is it?
A: The pans are made of high-quality Polypropylene (PP) with added antioxidants for UV and aging resistance. This ensures they remain durable, crack-resistant, and easy to clean through multiple grow-out cycles in farm conditions.

Q4: How many birds can one feeding pan serve?
A: Each 330mm diameter pan is optimally designed to serve 40-50 broilers, ensuring adequate feeding space to reduce competition and stress.

Q5: Can the system be adapted for chicks and older birds?
A: Absolutely. 1) For Chicks: The pan's base plate can be removed and placed on the floor as a starter feeder. 2) For Growing Birds: The entire line can be raised using the suspension device, and the special feed holes accommodate different feed types and bird sizes.

Q6: How is the feed flow controlled to prevent waste?
A: Waste is minimized through a dual control system: 1) Line Control: 6 adjustable gates on the main pipe manage bulk flow to different sections. 2) Pan Control: Each pan has an individual gate that precisely meters feed until it closes, coupled with the physical anti-spillage design of the pan itself.

Q7: What are the installation options for the pans?
A: Pans can be installed in two ways: Fixed Type for stable positioning, or 360° Free-Swing Type, which allows pans to move if bumped, facilitating easier cleaning underneath and accommodating bird movement.
