CE Certified Juice Disc Stack Centrifuge Separator
High-performance disc stack centrifuge separator specifically
designed for the food industry, CE certified from China's leading
manufacturer.
Technical Specifications
| Drive | gear / belt |
| Bowl speed | 4000 - 10000 rpm |
| Centrifugal force | > 10,000 g |
| Bowl volume | 8 - 300 L |
| Bowl weight | 50-15000 Kg |
| Solids holding space | 2 - 50 L |
| Inlet pressure | 0-0.1 Mpa |
| Liquid outlet pressure | 0.2-0.6 Mpa |
| Starting time | 5 - 30 mins |
| Stopping time (no brakes) | > 40 mins |
Company Overview
Huading Separator brings over 60 years of tradition and expertise
in mechanical separating technology. As China's leading
manufacturer since 1954, our centrifuges serve diverse industries
including beverage, dairy, oils and fats processing, chemicals, ,
biotechnology, starch technology, marine engineering, energy, oil
fields, and environmental technology. We develop customized
centrifuges and complete process lines tailored to customer
requirements.
Certifications & Standards
Quality Assurance
- JB/T 8103 standards - Chinese national standard of disc centrifuge
- 2006/42/EC (Machinery)
- 2014/35/EU (Low Voltage)
- 2014/30/EU (Electromagnetic Compatibility)
- ISO9001-2000 Quality Management System
Centrifugal Separation Technology
The disc stack separator efficiently separates solids and one or
two liquid phases in a continuous process using extremely high
centrifugal forces. Denser solids are forced outward against the
rotating bowl wall while less dense liquid phases form concentric
inner layers. The interface position between phases can be adjusted
for maximum separation efficiency. The specialized disc stack
plates dramatically accelerate separation by providing additional
surface settling area, enabling continuous separation of various
solids from liquids.
2-Phase Separation Process
Separation occurs inside a rotating bowl where feed material enters
via a stationary inlet pipe. After acceleration in the distributor,
the material enters the disc stack where liquid-solid separation
takes place. The liquid phase moves through the disc stack to the
center and is pumped out via a built-in paring disc. Solids collect
in the periphery and are discharged intermittently through a
hydraulic system that opens solids ports at predetermined
intervals.
3-Phase Separation Process
In three-phase separation, the suspension enters the separator bowl
through a feeding pipe into the disc stack. The heavy phase and
sludge move toward the bowl periphery while the light phase flows
toward the center for pumping and further processing. Solids
collect in the sludge space and discharge intermittently via a
hydraulic system that opens solids ports, with collected solids
exiting through a cyclone.
Why Choose Huading Separator
OUR ADVANTAGES
Huading Separator is a market leader in centrifugal separating
technology with over six decades of development and manufacturing
expertise.
60+
Years Experience developing and manufacturing disc stack
centrifuges
40000+
Installations across 50+ countries since 1954
100+
Centrifuge models to satisfy diverse industry demands
Global
References from leading food and pharmaceutical manufacturers
Quality Certifications
All products meet rigorous inspection standards including CE and
ISO certifications with 100% quality assurance.

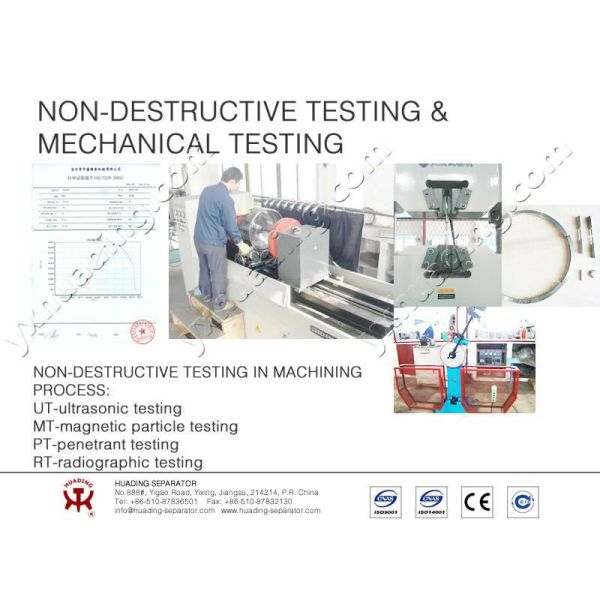

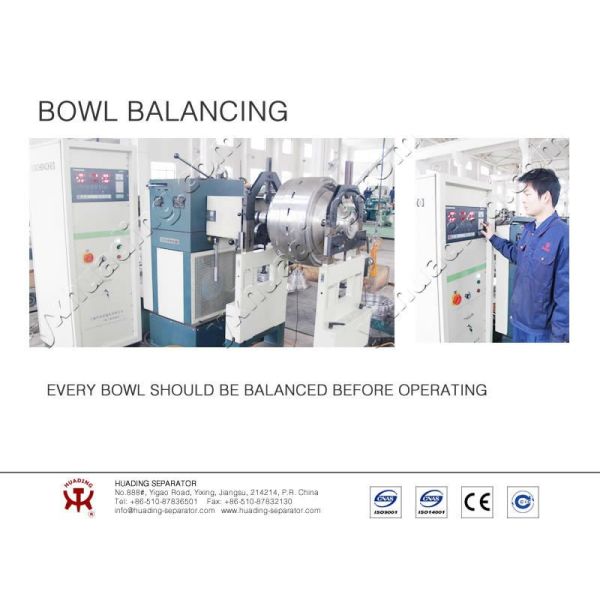

Manufacturing Excellence
Packaging & Shipping
PACKAGE
Standard export carton packing for secure transportation.
DELIVERY TIME
30-90 days after order confirmation, with specific delivery dates
determined by production season and order quantity.
