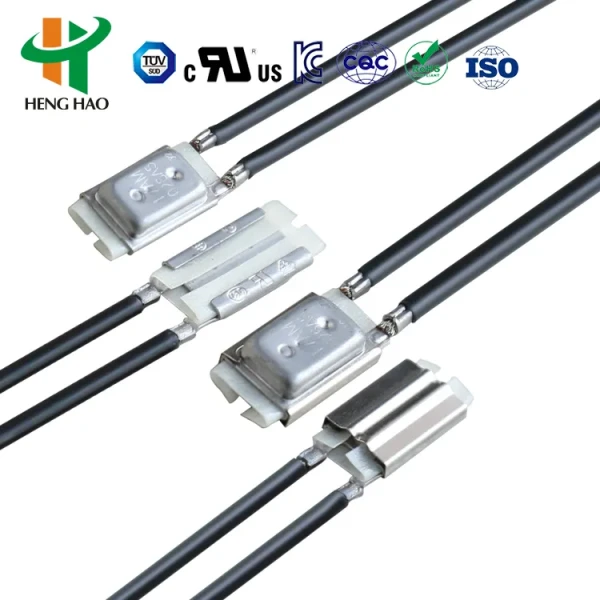

Temperature Controller Switch for Transformer 17am038A5 17am039A5

Categories	17AM Thermal Protector
MOQ:	1,000
Price:	0.35
Model NO.:	17AMH
Contact Type:	Normally Closed or Normally Open
Switch Type:	Auto Reset or Manual Reset
Electrical Rating:	AC-125V 15A; AC-250V 10A, DC-16V 20A
Contact Life Cycles:	AC-125V 15A, AC-250V 10A more than 10,000 Cycles; AC-125V 5A more than 100,000 Cycles
Operating Temperature:	50-180°C
Temperature Tolerance:	±2°C±3°C±5°C
Reset Temperature:	10~45 degrees in off temperature decline
Working Times:	Over 10000 times
Trip Off Temperature:	55°C to 180°C (see code table)
Terminal Direction:	Same or Opposite
OFF Temperature Tolerance:	Code 5
Connecting Wire Types:	A, B, C, D...Z
Transport Package:	1000 PCS Per Carton
Production Capacity:	100000000000 Pieces/Year

Contact Now

Add to Cart

Company Info.

Dongguan Heng Hao Electric Co., Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Temperature Controller Switch for Transformer 17am038A5 17am039A5

17AMH Thermal protector / 17AMH Thermostat / 17AM temperature protector / instead of KLIXON 17AM thermal protector

17AMH thermostat's Principle and structure

17AM is an excess-current thermal protector with compact design, Quick and accurate action, we can rivet different types of leads according to customers' requirements.

17AM thermal protector's Specification
1. Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A
2. Contact life cycles: AC-125V 15A, AC-250V 10A more than 10,000 Cycles; AC-125V 5A more than 100,000 Cycles
3. Operating temperature range: 50-180°C
4. Temperature tolerance: ±2°C±3°C±5°C
5. Reset temperature: 10~45 degrees in off temperature decline.
6. Working times: Over 10000 times
7. Code syste

17AM XXX A / B 5 A,B,C,D...…..Z
(17AMH): The number of product series
(XXX): Trip off temperature in °C Code
(A / B): A: Terminals in the same direction / B: Terminals in the opposite direction
(5): OFF Temperature Tolerance Code
(A, B, C, D...…..Z): Different type of connecting wire

1. Trip off temperature in °C Code

Degrees °C	Code	Degrees °C	Code	Degrees °C	Code	Degrees °C	Code
55°C	018	90°C	025	125°C	032	160°C	039
60°C	019	95°C	026	130°C	033	165°C	040
65°C	020	100°C	027	135°C	034	170°C	041
70°C	021	105°C	028	140°C	035	175°C	042
75°C	022	110°C	029	145°C	036	180°C	043
80°C	023	115°C	030	150°C	037
85°C	024	120°C	031	155°C	038

1. Product Drawing

17AM temperature protector's Application

17AM thermal protector is applicable to all kinds of Motor, commentator for fluorescent lamp, transformer, Laminator, lamps and lighting, transformers, cover sealing machine & various of household appliances

17AM thermostat's A/°C and A/T Graph:

The product UL,CQC,VDE and RoHS certification approval.
