Boost Productivity With The Danfoss OMS100 151F2309 Hydraulic Motor For Medium To Heavy-Duty Applications

Categories Hydraulic Motor
Brand Name: Danfoss
Model Number: OMS100 151F2309
Certification: cc
Place of Origin: Germany
MOQ: 1pc
Price: RMB/100-10000/PC
Payment Terms: T/T
Supply Ability: 10PCS/days
Delivery Time: 3 work days
Packaging Details: wooden case/carton
Fuel: Hydraulic Oil
Shipping Date: Within 3 Days After Payment
Operating Temperature: -20°C to 80°C
Local Service Location: None
Standard: International Standard
Warranty: 1 Year, one year
After Warranty Service: Online support
Mounting Type: Flange
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Boost Productivity With The Danfoss OMS100 151F2309 Hydraulic Motor For Medium To Heavy-Duty Applications

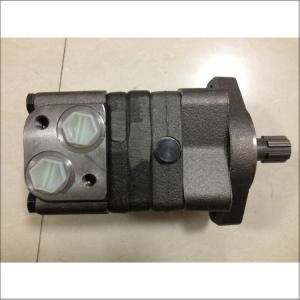

Danfoss OMS100 151F2309
The Danfoss OMS100 151F2309 is a hydraulic orbital motor designed for medium to heavy-duty applications. Below are its key specifications and features:

Technical Specifications

  • Displacement: 100 cm³/rev
  • Maximum Continuous Speed: 750 rpm
  • Shaft Type: Splined 1" SAE 6B
  • Flange Type: SAE A 2-hole
  • Mounting Bolt Circle Diameter (PCD): 106.4 mm
  • Port Style: UNF threaded
  • Material: Cast iron
  • Color: Black (RAL 9005)
  • Weight: Approximately 10.0 kg (22.1 lbs)

Features

  • Smooth Operation: Runs smoothly over the entire speed range.
  • Constant Torque: Maintains constant operating torque over a wide speed range.
  • High Starting Torque: Provides high starting torque.
  • High Return Pressure: Capable of handling high return pressure without the need for a drain line.
  • Robust Design: Built for durability and reliability in demanding environments.
  • Versatile Applications: Suitable for a wide range of industrial and mobile hydraulic systems.

Applications

The OMS100 151F2309 is widely used in various industrial and mobile hydraulic applications, including:
  • Agricultural Machinery: For applications requiring high torque and reliability.
  • Construction Equipment: Suitable for heavy-duty construction machinery.
  • Material Handling: Ideal for forklifts and other lifting equipment.
  • Forestry Equipment: Used in forestry machinery for heavy-duty operations.
  • Lawn and Turf Equipment: Suitable for landscaping and maintenance machinery.
For more detailed information or specific inquiries, please refer to the technical data provided by Danfoss or contact the manufacturer directly.
AttributeValue
Process ConnectionM20X1.5, G1/4, 1/4NPT
PressureLow Pressure
Pressure sensing elementDiaphragm
Media compatibilityAir, gas, water, oil
TypeMechanical
Condition100% NEW
Comprehensive Accuracy±0.5%FS
PackageBox
Bosch Rexroth 4WE6D62 OFEG220N9K4 Proportional Valve
