Free Sample High Brightness Mini Intelligent Countdown Timer LED Traffic Light Module 100mm

Categories	100MM & Module Traffic Light
原产地:	Henan, China
品牌:	HOAN
外壳材料:	PC
颜色:	红色绿色黄色
尺寸:	100mm

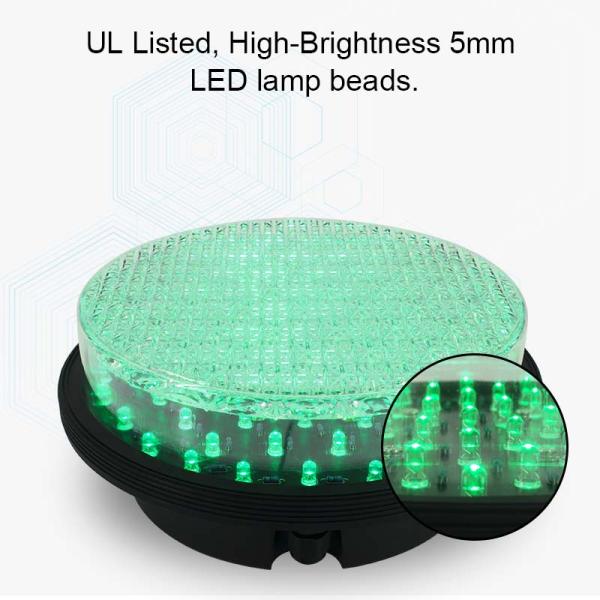

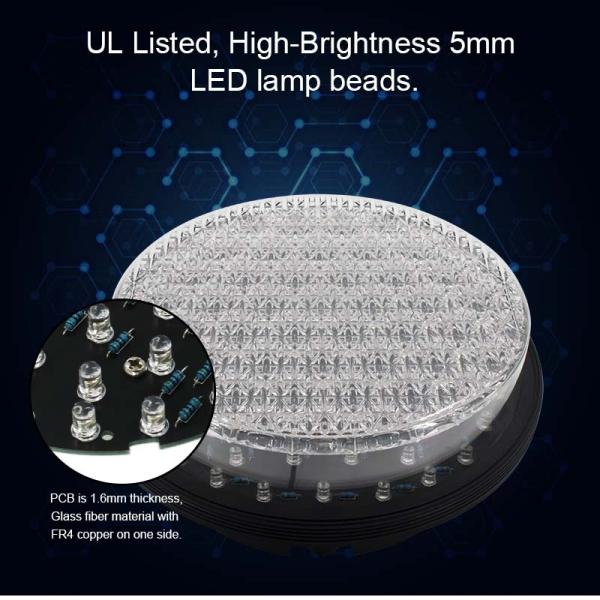

光源:	5mm led二极管
工作电压:	DC12V
亮度:	> 4000cd
证书:	CE ROHS
寿命:	≥ 70，000小时
防水:	IP 66
保修:	1年

Contact Now

Add to Cart

Company Info.

Henan Hoan Traffic Facilities Co., Limited

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Free Sample High Brightness Mini Intelligent Countdown Timer LED Traffic Light Module 100mm

Shell	PC	IP rating	IP65
Ambient temperature:	-40℃~+80℃	Size	100/200/300/400mm customizable
Rated voltage	220 (V)	Lamp holder model	round
rated power	8 (W)	Warranty	1 year

Technical parameters of Ф300 red, yellow and green high-power wick

Red light: 9 LEDs, Φv: 30～50Lm, wavelength: 625～630nm, wick brightness: 570cd, power: ≤10W.

Yellow light: 12 LEDs, Φv: 20～50Lm, wavelength: 590～595nm, wick brightness: 425cd, power: ≤13W.

Green light: 9 LEDs, Φv: 40～70Lm, wavelength: 500～505nm, wick brightness: 950cd, power: ≤15W.

Working voltage: AC85V-265V, 60HZ/50HZ

Visual distance≥300m

Technical parameters of Ф300 red, yellow and green double lens wick

Red full plate: 91 LEDs, single brightness: 3500~5000mcd, wavelength: 625±5nm, left and right up and down viewing angles: 30°, power: ≤9W.

Yellow full disk: 91 LEDs, single brightness: 4000~6000mcd, wavelength: 590±5nm, left and right up and down viewing angles: 30°, power: ≤9W.

Green full disk: 91 LEDs, single brightness: 7000~10000mcd, wavelength: 505±5nm, left and right up and down viewing angles: 30°, power: ≤9W.

Working voltage: AC176V-265V, 60HZ/50HZ

Visual distance≥300m

Technical parameters of Ф300 red, yellow and green full disk without lens wick

Red full disk: 168 LEDs, single brightness: 3500~5000mcd, wavelength: 625±5nm, left and right up and down viewing angles: 30°, power: ≤15W.

Yellow full plate: 168 LEDs, single brightness: 4000~6000mcd, wavelength: 590±5nm, left and right up and down viewing angles: 30°, power: ≤15W.

Green full plate: 168 LEDs, single brightness: 7000~10000mcd, wavelength: 505±5nm, left and right up and down viewing angles: 30°, power: ≤15W.

Working voltage: AC176V-265V, 60HZ/50HZ

Technical parameters of Ф200 red, yellow and green double lens lamp wick

Red full plate: 61 LEDs, single brightness: 3500~5000mcd, wavelength: 625±5nm, left and right up and down viewing angles: 30°, power: ≤7W.

Yellow full disk: 61 LEDs, single brightness: 4000~6000mcd, wavelength: 590±5nm, left and right up and down viewing angles: 30°, power: ≤7W.

Green full plate: 61 LEDs, single brightness: 7000~10000mcd, wavelength: 505±5nm, left and right up and down viewing angles: 30°, power: ≤7W.

Working voltage: AC85V-265V, 60HZ/50HZ

Visual distance≥300

Q1. Can I have a sample order for traffic light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Samples within 3 days, big order within 1-2 weeks.
Q3. Do you have any MOQ limit for traffic light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
