| Brand Name: | YingMi |
| Model Number: | 008B |
| Certification: | CE,RoHs |
| Place of Origin: | China |
| MOQ: | 50pcs |
| Price: | negotiation |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs for one month |
| Delivery Time: | 3-7 days |
| Packaging Details: | packed in carton box |
| Brand: | YingMi |
| Working frequency: | 746-823MHz |
| Channel quantity: | 23CH |
| Channel spacing: | 250KHz |
| Dimensions: | 86×60×19mm |
| Separation factor: | 70dB |
| Working distance: | >=250m |
| Warranty: | lifetime |
| Input: | 3.5mm microphone |
| Transmitter power: | 15dBm |
| Company Info. |
| HEFEI HUMANTEK. CO., LTD. |
| View Contact Details |
| Product List |

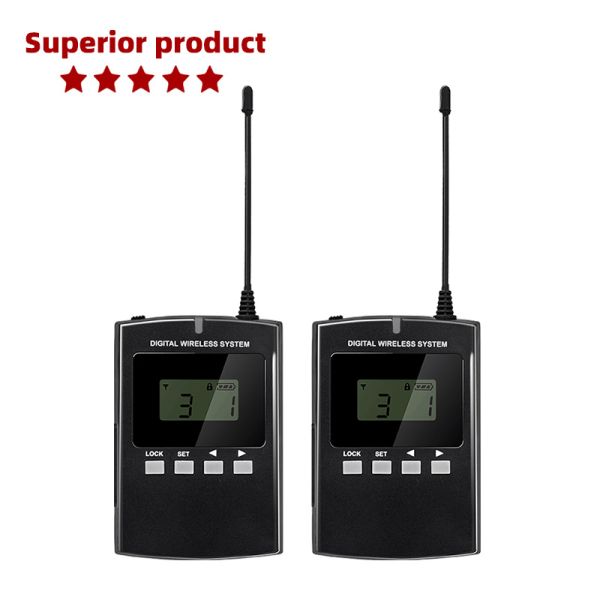

008B Is Used For Reception Occasions And Has The Function Of Two-Way Communication

| Name | Value |
| Working frequency: | 746-823MHz,Broadband,the sound quality is better; |
| Channel quantity: | 23CH; |
| Channel spacing: | 250KHz; |
| Transmitter power: | 15dBm; |
| Receiving sensitivity: | -110dBm(typical); |
| Working voltage: | 3.0-5.0VDC,recycle polymer lithium battery; |
| Input: | Input(Transmitter):3.5mm microphone; |
| Output: | Output(receiver):3.5mm headphone; |
| Separation factor: | 70dB(typical); |
| Frequency offset: | <3k; |
| Distortion factor: | <1%; |
| Oscillation frequency: | +/-2ppm; |
| Working current: | Transmitter:≤80mA; Receiver:≤50mA; |
| Working distance: | >=250m; |
| Working temperature: | -20℃—+70℃; |
| Dimensions: | 86*60mm*19mm; |
| Weight: | Transmitter:100g(include battery); Receiver:100g(include battery); |

008B Audio guide device feature :
1) Adopts wireless frequencies used in all countries of the world;
2) Adopts advanced modulation methods, with strong
anti-interference ability;
3) Multiple channels with memory;
4) Digital wireless simultaneous interpretation system in multiple
languages;
5) Supports self-service manual frequency matching, one-button
shutdown, and volume adjustment;
6) Compatible with all current audio format inputs;
7) 008B supports multi-party intercom (tourists can ask questions
and interact with the guide in the channel)
There are times when easily initiated, two-way audio guide device communication is essential during a plant visit. Some of the scenarios for these collaborative group activities include:


Microphone wih headphone
Charger (1 for 10)
Packing
Packaging Details: Standard export packing. One unit with one
independent box.
Shipping
DHL/FedEx/UPS/EMS: 3-7 workdays
Customized Logo
Free logo printing will be offered if order quantity is above 300pcs.
Our Warranty
Lifetime warranty for all Transmitter & Receiver.
Spare Parts
A proportion of spare parts will be shipped along with formal
orders




FAQ
Q1: How many receivers can be used with a transmitter?
A1: Number of connected receivers no limited
Q2: What are the frequencies in which they work?
A2: Usually is 796-821 , others can be customize .
Q3: What is your range for such tour guide system/interpretation system?
A3: Up to 200 meters.
Q4: How many channels for this tour guide system?
A4: 150 channels
Q5: How many tour groups/teams can use in one tour place?
A5: It depends on the number of channels – the more channels there
are ,
the more different number of groups can work in the same time.
Q6: How about your warranty?
A6: lifetime
Q7: How about your production time?
A7: 3-5 working days for orders below 300 pcs.
5-8 working days for orders below 1000 pcs.
Q8: How about your charge time?
A8: It takes about 2~3 hours to be fully charged.
|
