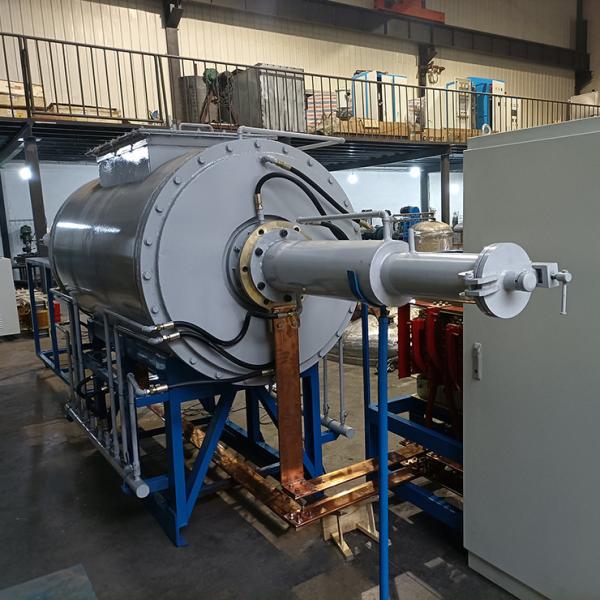

Graphite Powder Continuous Sintering Furnace With Auto Discharging And Reversing System

On-line temperature measurement and control auto discharging and reversing system graphite powder sintering industrial furnace

Product Description

Graphite Boat Pushing Furnace

It is used for continuous high temperature

graphitization purification of graphite powder and products, and can realize the purification process combining high temperature
method and chemical method. Its operating temperature can reach 2600℃, and can work continuously for a long time.

Model	JT-ZTL-10	JT-ZTL-20	JT-ZTL-30
Capacity(kg/d)	200	400	700
Max. Temperature(℃)	2800
Temperature Control Method	PID auto control
Protective Gas	Ar
Rated Power(kw)	120	180	220
Voltage(V)	three phase 380v
Temperature Measurement Method	infrared measurement
Working Method	push boat intermittent feeding
Boat size	Φ120*320mm	Φ150*400mm	Φ200*420mm
Cooling Mode	cooling by circulating water

(1) Adopting new heating technology, high service temperature and long service life;
(2) Long service life of furnace tube, continuous production 20-30 days without stop;
(3) Continuous material in and out, good sealing performance, less gas consumption;
(4) Adopting push-boat production mode, continuous production;
(5) Automatic boat loading, pushing, discharging and reversing mechanism, stable product quality and low labor intensity;
(6) The length of furnace body can be increased or decreased according to the actual situation;
(7) With remote control, fault diagnosis and software upgrade;
(8) Three-phase power supply, three-phase power balance, stable performance.

Company Profile

Qualification and Patents

Production process

Customer Photos

Customer Cooperation Cases

Logistics System

FAQ

Are you a factory or trading company?

Q: Are you a factory or trading company?

A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.

Do you have customization or OEM service?

Q: Do you have customization or OEM service??

A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

What's your advantages?

Q:What's your advantages?

A:Quick response to your enquiry

High quality control

Stable supply chain in the domestic maket

Timely delivery

Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.

    Hunan Jingtan Automation Equipment Co., Ltd. was founded in 2021, the production base Zhuzhou Guangjichang Technology Co., Ltd. was founded in 2014, is a high-tech enterprise integrating research and development, production, sales and service, and has become a famous leading manufacturer of thermal equipment in China.Now it has two factories,which covers 3500m2. The main products are vacuum sintering furnace, silicon carbide sintering furnace, high temperature graphitization furnace, vapor deposition furnace, high temperature carbon tube furnace, vacuum carbonization furnace, vacuum hot press furnace, vacuum induction melting furnace, etc. The equipment produced by our company is widely used in aerospace, electronics, transportation, machinery, metallurgy, cemented carbide, refractory metal, special ceramics, carbon carbon composite materials, semiconductor materials and solar cells and other dozens of processing and manufacturing industries and fields, and has won the trust and praise of the majority of users with high-quality products and perfect service.

     We have always adhered to the science and technology enterprise, continuous innovation, pay attention to cooperation with scientific research institutions and major universities, and develop a number of high-tech thermal equipment with the industry's leading level. Our company can design and manufacture non-standard thermal equipment according to user requirements, and provide customers with corresponding process technical support, so as to relieve all worries for users.

   The company has a number of utility model patent certification, and has ISO9001:2015 quality management certificate, can provide CE, UL and other product certificates for the equipment. In order to continuously meet customer needs, to provide "directional application, focus on development, Customized per customer’s requirements" efficient characteristic services. Our company has a number of domestic first cases, such as: chlorine gas sintering furnace (can make the product purity of 99.9999%), ultra-high temperature graphitization furnace temperature up to 3200 degrees, vacuum hot press furnace weight up to 800 tons.

    "Customer first, the pursuit of quality, continuous innovation, continue to lead!" It is the service purpose of Jingtan company;" Based in Zhuzhou, radiating China, facing the world "is our company's service concept. At present, our products are mainly exported to Europe, Middle East, Southeast Asia and other countries; in the domestic market has also won the praise of the majority of users, has been highly recognized by the industry. Hunan Jingtan Automation Equipment Co., Ltd. strives to become your most trusted manufacturer of high temperature equipment.
