| Place of Origin: | Guangdong, China |
| Brand Name: | CHIPSEN |

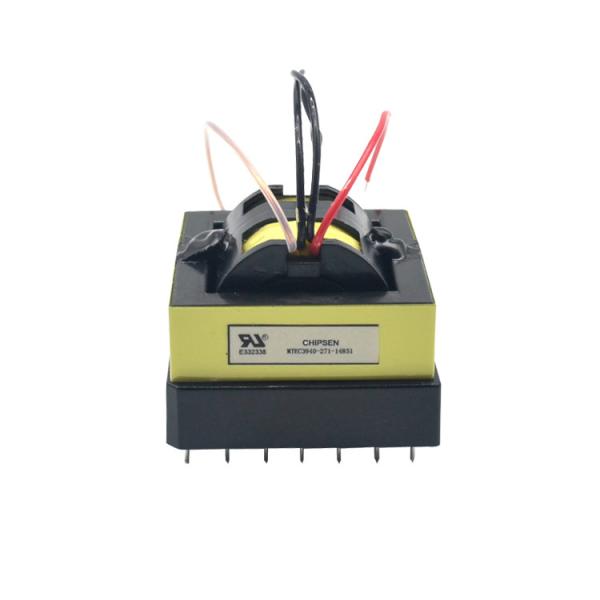

| Model Number: | EC39 |
| Specification: | As per demands |
| Packaging Type: | encapsulated/ unencapsulated |
| Application: | Power, Electronic, High Frequency, Lighting |
| Operating Temperature: | -40℃ to 125 ℃ |
| Package / Case: | through hole / surface mount |
| Series: | EC Series |
| Features: | high frequency |
| Size / Dimension: | Customized |
| Description: | HIGH FREQUENCY TRANSFORMER |
| Manufacturing Date Code: | / |
| Frequency: | High Frequency |
| Certification: | UL ROHS |
| Coil Number: | AUTOTRANSFORMER |
| Material: | 100% Copper Wire |
| Input Voltage: | 85V~265V/AC |
| Output Voltage: | 3.3V~36V/DC |
| Working Frequency: | 30kHZ-150KHZ |
| Phase: | Single |
| Power: | 3000W Max |
| Customized Service: | Acceptable |
| MOQ: | 500 pieces |
| Price: | CN¥4.80/pieces 500-999 pieces |
 | Model No. | High frequency transformer EC39 |
| Working Frequency Range | 1KHz-1MHz | |
| Output Power | 1W-3000W | |
| Output Voltage | 0.5V-15000V | |
| Output Current | 0.01A-100A | |
| Storage Temperature | +5℃ to +95℃ | |
| Working Temperature | -40℃ to +125℃ | |
| Storage Humidity | 30% to 70% | |
| Certifications | ISO9001:2015, ISO14001:2015, IATF16949, UL/cUL, ROHS, REACH, CQC | |
| Designing Information | operating frequency | |
| circuit topology | ||
| input voltage range | ||
| output power (V/A) | ||
| mounting dimensions | ||
| safety requirements | ||
| product application |
How to get samples?
Chipsen Sample Policy
How long the sample can be ready?
Shipping for samples Customer afford freignt cost, we can help customer to use the cheapest way.
|
