| Categories | Wire Rope Vibration Isolator |
|---|---|
| Brand Name: | Hoan |
| Model Number: | JGX-0160A-2A |
| Certification: | ISO9001:2015 |
| Place of Origin: | Shaanxi, China |
| MOQ: | 4 piences |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 4,pience,7 |
| Delivery Time: | 7 |
| Length: | 50mm |
| Shock Resistance: | 30g/11ms |
| Port: | Xi'an |
| Certifications: | ISO 9001, RoHS |
| Max Static Load: | 20-47N(2kg-4.8Kg) |
| Maximum Deflection: | 0.5-1.5 inches |
| Packing: | Standard Packing |
| Installation: | Wall Mounted |
| Characteristic: | wide working frequency, long life span |
| Maximum Load Capacity: | 2.7kg |
| Weight: | 0.2kg |
| Natural Frequency: | 7Hz-15Hz |
| Temperature Range: | -40°F to 200°F |
| Core Components: | Wire rope |
| Application: | Vibration Isolation for Mechanical Equipment |
| Company Info. |
| Xi'an Hoan Microwave Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

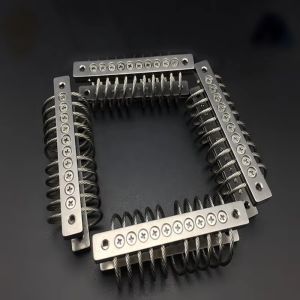

JGX-0160 Series
The wire rope vibration isolators of Xi'an Hoan Microwave Co., Ltd., with the advantages of three-dimensional vibration isolation, fatigue resistance, shock resistance, etc., have become the preferred products in the industrial vibration damping field. Compared with traditional rubber vibration isolators, wire rope vibration isolators have a longer service life and can operate stably in extreme temperatures (-60°C to 200°C) and corrosive environments.
The products adopt a multi-strand helical structure, which can effectively absorb both high-frequency and low-frequency vibrations, and are suitable for high-end fields such as aerospace, electronic equipment, and energy machinery. Hoan Microwave offers a variety of specifications to meet different load requirements, ensuring that the equipment operates more smoothly and quietly.
Product Performance

| No | Model | Max Static Load (kg) | Max Deflection (mm) | KV(Vibration) (KN/m) | KS(Shock) (KN/m) |
| 1 | JGX-0160A-4.8A | 4.8 | 8.6 | 36 | 22 |
| 2 | JGX-0160A-3.6A | 3.6 | 9.7 | 25 | 16 |
| 3 | JGX-0160A-3.2A | 3.2 | 14.7 | 17 | 8.8 |
| 4 | JGX-0160A-2.7A | 2.7 | 17.8 | 12 | 6.1 |
| 5 | JGX-0160A-2.2A | 2.2 | 18.8 | 11 | 5.3 |
| 6 | JGX-0160A-2A | 2.0 | 21.8 | 7.9 | 3.9 |

| No | Model | Max Static Load (kg) | Max Deflection (mm) | KV(Vibration) (KN/m) | KS(Shock) (KN/m) |
| 1 | JGX-0160A-4.8A | 3.4 | 11.7 | 20 | 11.4 |
| 2 | JGX-0160A-3.6A | 2.4 | 14.7 | 14 | 7.0 |
| 3 | JGX-0160A-3.2A | 2.4 | 20.8 | 11 | 4.7 |
| 4 | JGX-0160A-2.7A | 1.8 | 24.9 | 7.0 | 3.0 |
| 5 | JGX-0160A-2.2A | 1.8 | 26.9 | 6.1 | 2.6 |
| 6 | JGX-0160A-2A | 1.6 | 31.0 | 5.3 | 1.9 |

| No | Model | Max Static Load (kg) | Max Deflection (mm) | KV(Vibration) (KN/m) | KS(Shock) (KN/m) |
| 1 | JGX-0160A-4.8A | 2.2 | 8.6 | 14 | 14 |
| 2 | JGX-0160A-3.6A | 1.8 | 10.7 | 8.8 | 8.8 |
| 3 | JGX-0160A-3.2A | 1.6 | 15.7 | 5.3 | 5.3 |
| 4 | JGX-0160A-2.7A | 1.3 | 18.8 | 3.9 | 3.9 |
| 5 | JGX-0160A-2.2A | 1.3 | 19.8 | 3.2 | 3.2 |
| 6 | JGX-0160A-2A | 1.1 | 22.8 | 2.3 | 2.3 |
