Modular Design SMT PCB Reject Conveyor For SMT Assembly Line With SMEMA And PLC Control

PCB Reject Conveyor:

This unit provide the OK and NG board selection function on the smt production line. It can be used when visual inspection of PCBs required. PCBs will continue to run, thus without interrupting the normal PCBs flow.

Features:

• Reject, inspect and by-pass modes all available.
• Modular design.
• Stability enhanced by robust design.

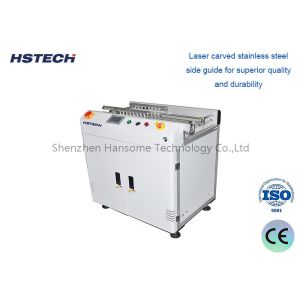

• Laser carved stainless steel side guide for superior quality and durability.
• Ergonomic design arm rest.
• Smooth and parallel width adjustment(lead screw).
• Different lengths available upon request.
• Variable speed control.
• SMEMA compatible.

Specification:

Application:

Defective product detection and separation:
On the production line, PCB Reject Conveyor is used in conjunction with AOI (Automatic Optical Inspection) equipment.
When the AOI system detects defective PCB boards, it will trigger the Reject Conveyor to automatically separate them from the main production line.

Rework and redo processing:
PCB boards that need to be reworked after AOI inspection can be transferred to a special rework area through the Reject Conveyor.
This ensures that good and defective products are effectively isolated to avoid confusion.

Special process processing:
PCB boards with certain special specifications or processes can be separated from the main line by the Reject Conveyor.
Sent to other special equipment for special processing or testing.

Sample test classification:
The sample PCB boards collected during the production process are transferred to the test area through the Reject Conveyor.
Effective separation of samples from normal assembly line products is achieved to avoid interference with production caused by testing.

Production data collection:
The use of the Reject Conveyor and the data of the separated PCB boards can be recorded in the production management system.
It is helpful to analyze indicators such as defective rate and rework rate in production and optimize the production process.
