State-of-the-Art CNC Flame and Plasma Pipe Cutting Machine for Pipeline Construction

WINCOO ENGINEERING CO.,LTD

Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipment for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction, industrial production lines, clean energy project and other industrial field.

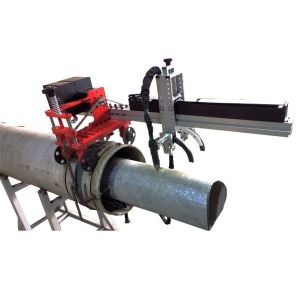

The cutting machine will creep on pipes and send the high- precision location information to control system, and then follow the cutting line immediately. This cutting method is totally different from the traditional large scale pipe intersection line cutting method.

The unique portable & bevel profile cutting machine can be used in factory and on-site, almost suitable for all pipes with
different sizes. Its cutting accuracy could reach 1mm with build-in program & parameterized input interface. The whole machine is delicate and can be operated, delivered & stored easily. Additionally, the program can be updated.

No need for importing CAD, parameterized input interface, one person could operate it, complete model bases, providing model custom service.

Main Frame

1- Lines box2- Sensor box
3- Machine base part
4- Single axis arm
5- Torch clamp

Control box

1- Protective mask

2- Control box
3- Control panel
4- Air filter

Anti-skid Chain

1- Anti-skid chain

2- Chain union
3- Flat pin

Orbital Track

Right to left:

STG1,STG2,STG3,STG4,STG5,STG6

Claw Connector

1- Hole

2- Hook
3- Long hexagonal bolt

Product Parameter
Table 1. Equipment Lectotype
Type	Model	Software	Pipe Diameter	Horizontal Adjustment
Simplified Machine	TP1-JH	01/07	<320mm	200mm
Basic Machine	TP1-JB			<680mm	400mm
Standard Machine	TP1-BZ			<1020mm	600mm
Classic R Machine	TP1-R80B	01/02/03/05/06/07/08	<1800mm	800mm
Classic X Machine	TP1-X80B	01/02/03/05/06/07/08/09/10/11/12	<3000mm	800mm
Tie-In Machine	TP1-PSK	07	320-1420mm	200mm

Orbital Track
Table 2.Cutting Machine Orbital Details
NO.	Model	Length/m	Adjustable range/m	Claw with contributory posterior adjustment range
1	STG1	0.98	0.54~0.71	0.68~0.86
2	STG2	1.23	0.79~0.96	0.93~1.14
3	STG3	1.38	0.91~1.16	1.06~1.30
4	STG4	1.72	1.16~1.45	1.30~1.60
5	STG5	1.90	1.46~1.63	1.60~1.81
6	STG6	2.50	2.06~2.23	2.20~2.41

Table 3.Orbit Matching Option
No.	Pipe OD/mm	Suggested Orbits
1	320-400	STG3
2	400-495	STG4
3	495-550	STG5
4	550-680	STG1+ STG 3
5	630-770	STG1+ STG 4
6	730-830	STG1+ STG 5
7	810-915	STG2+ STG 5
8	915-1020	STG1+ STG 6
9	1000-1100	STG2+ STG 6
10	1040-1160	STG3+ STG 6
11	1120-1250	STG4+ STG 6
12	1219-1310	STG5+ STG 6
13	1270-1480	STG3+ STG 4+ STG 5
14	1410-1500	STG6+ STG 6
15	1450-1595	STG2+ STG 5+ STG 6
16	1520-1675	STG6+ STG 6+ STG 1

Table 4.Control Box
Display	111mm×62mmLCD
Button No.	20pcs
Power-off Protection	10years
Working Temperature	-10℃～ +55℃
Voltage	220V AC
Power	600 W
Main kit Weight	5KG
Size	400（L）×200（W）×200（H）mm

Product Advantages

1, Theoretical innovation

The sensor technology is used to realize the trajectory control. The intersecting line cutting machine climbs on the pipe, sends the high-precision real-time position information to the control system, and then follows the cutting curve in a very small time.This control method is completely different from the traditional bench pipe intersecting line cutting.

2, Structural innovation

It is the first time to put forward a complete solution of on-site cutting of pipeline intersecting line. By using the crawling

cutting method around the pipe, the volume and weight can be significantly reduced, which is easy to carry to the site, does not occupy the resources of the workshop, and can realize the flexible production line layout.
