| Categories | Helium Leak Detector |
|---|---|
| Brand Name: | Wayeal |
| Model Number: | SFJ-16C |
| Place of Origin: | Anhui, China |
| Certification: | CE |
| MOQ: | 1 Unit |
| Price: | Negotiate |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 days |
| Payment Terms: | T/T, VISA |
| Supply Ability: | 200 Units/Month |
| Operating temperature: | 0~40°C |
| Leak detection port: | DN25KF |
| MES Interface: | Standard |
| Detectable Quality: | 2, 3, 4 (H2, He3, He4) |
| I/O Input output interface: | 8 Inputs, 8 Outputs |
| Communication Interface: | RS232/485, LAN |
| Diamension: | 475 * 714 *1168mm |

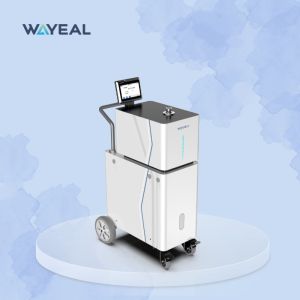

| Product Name: | Helium Leak Detector |
| Company Info. |
| Anhui Wanyi Science and Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Introduction of Helium Leak Detector:
A helium leak detector works by detecting helium gas that is escaping from a leak in a system. The detector is connected to the system being tested and helium gas is introduced into the system. If there is a leak, the helium gas will escape from the system and be detected by the helium leak detector. The detector will then alert the operator of the leak.
Technical Parameters of Helium Leak Detector:
| Product Name | Helium Leak Detector |
| Mini Leak Detection Rate(Pa·m3/s)/Vaccum Mode | 5*10-13 Pa·m3/s |
| Communication Interface | RS232/485, LAN |
| Max Allowable Leak Detection Pressure (Pa) | 1800Pa |
| Response Time(s) | <1s |
| User Interface | 7inch Color Touch Screen |
| Mini Leak Detection Rate(Pa·m3/s)/Sniffer Mode | 2.5*10-9 Pa·m3/s |
| Dimension | 755 * 467 * 1180mm |
| Detectable Quality | 2, 3, 4 (H2, He3, He4) |
| Start Time (min) | ≤1.58min |
| Ion Source | 2pcs, Iridium coated yttrium oxide, automatic switching |
| Backing Pump | Rotary Vane Vacuum Pump |
| Leak Detection Port | DN25KF |
| Power Supply | AC220V, 50Hz/60Hz |
| Operation Temperature | 0~40°C |
| Language | English/Chinese |
Applications of Helium Leak Detector:
The helium leak detector is an essential tool for a variety of applications and scenarios. It is widely used in industries such as refrigeration, aerospace, and automotive to detect leaks in critical components such as heat exchangers, valves, and fuel tanks. It is also used in the semiconductor industry for detecting leaks in vacuum systems and chambers.
Methods of Helium Leak Detection (Helium Leak Detector)
Helium Vacuum Method

Sniffer Method
 Helium Hood Method
