90L HFC227ea Fire Suppression System

90L HFC227ea fire suppression system

• Cabinet automatic HFC-227ea/FM200(Heptafluoropropane) fire suppression system uses the solenoid valve as the starting mode with the elegant appearance design. The cylinder is placed in the cabinet. For different protection zone, according to the different volume zone to match different size cylinder, which can reduce the occupied area.

• According to different volume size, different extinguishing agent, different starting mode to assemble.

• Independent sets, flexible installation, good appearance.

• Without cylinder room, can install in the protection zone, handy and romovable.

• Automatic HFC-227ea/FM200(Heptafluoropropane) fire extinguishing system is a set of fire extinguishing, automatic control and fire detection in one system which is the modern intelligent automatic fire extinguishing device.

• HFC-227ea/FM200 (Heptafluoropropane) is a kind of colourless, tasteless, not conduct electricity and no secondary pollution gas. It belongs to a kind of clean extinguishing agent.

• The ozone-depleting potential value is zero.

• Cleanness, low toxicity, good electrical insulation, higher fire extinguishing efficiency.

• It is currently an ideal substitute for the halon extinguishing agent.

Parameters

Cabinet Size

Compositions:

The cabinet type HFC-227ea/FM200 fire suppression system is very easy to install because of a few components. A system is usually divided into two parts, one is the fire extinguishing device part, and the other is the electrical elements part. Because there is a sole part for introducing the electrical part, so the following words are only for talking about the fire extinguishing device part.

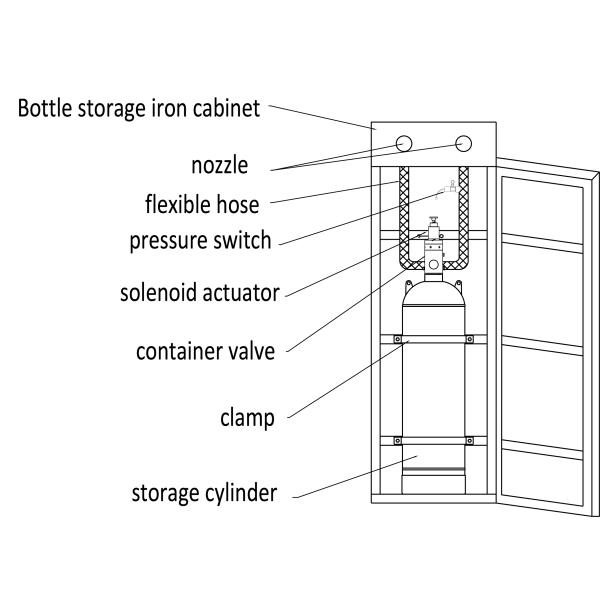

The cabinet type fm200 fire extinguishing device consists of fm200 agent, fm200 cylinder, container valve, flexible hose, liquid flow check valve, nozzle and the cabinet.

Working principle

Here is the illustration of working principle to whole system

Application

The pipe network type HFC-227ea/FM200 fire suppression system is suitable for a lot of places and several kinds of fires. The followings are some examples for customer as reference:

- Telecommunications and data processing

- Switch gear rooms

- Defense applications and cell sites

- High-tech medical application

- Computer rooms

- Telecommunication centers

- Records and data archives

- Testing/imaging equipment

- Reference material

- Chemical laboratories

Competitive Advantage

Cabinet HFC-227ea/FM200 fire suppression system has a large number of advantages, and here is going to have a brief explanation:

1/ Swift response. Since there is no long distance transportation of pipes, so fm200 gas can be directly discharged into protection zone. Meanwhile, its spraying time is less than 8 second. So it will save more time relatively when the fire happens.

2/ Convenient installation. Compared with pipe network system, cabinet system would be relatively simple to conduct installation. After installation of control panels and electric components, left work is just to connect it with one cabinet fire extinguishing device or devices. But one room should not be matched with more than 4 pieces of it because of the limitation of the output current of a control panel.

3/ Lower cost. Obviously, the price would be cheaper than pipe network type for the protection zone which just needs one single cylinder, because there is no need to consider about the expense of pipes and pipe fittings, also the cost of manpower for this part.

Packages

We pack products with first polyfoam and then the wooden cases. Once products are too big or customers require a pallet for products, we will make products a pallet. The following pictures are the common packing of products:

Introduction:

Guangdong Air Giant Fire Equipment Co., Ltd. is an enterprise integrating research and development, design, manufacturing and marketing services, which is specialized in the production of HFC-227ea (pipe network type, piston flow type, cabinet type, hanging type, server-rack fire suppression unit) fire extinguishing device, IG series fire extinguishing system, automatic pressure relief device, fire trace tube, automatic fire suppression tube and so on, and these products have passed the inspection of the National Quality Supervision and Inspection Center for Fixed Fire Extinguishing Systems and Fire-resisting Components.

Location:

Guangdong Air Giant Fire Equipment Co., Ltd. has a subsidiary called Guangzhou Zibda Trade Co.,Ltd. This two companies locate in different places. Guangdong Air Giant Fire Equipment Co., Ltd. sets itself at Factory 101, Building 2, No. 2, Shaxing Road, Lanhe Town, Nansha District, Guangzhou and its subsidiary locates at No. 2-2, Shaxing Road, Shajiao Village, Lanhe Town, Nansha District, Guangzhou City.

Factory Overview:

The company's office and factory are located in the same location, with the first floor for factory use, mainly used for the production of fire extinguishing equipment and product storage. The second floor is for office use. The factory has a high-quality production team, professional design team, and advanced production equipment, which can produce high-quality and high-performance fire extinguishing equipment and fire prevention equipment, providing comprehensive solutions and high-quality after-sales service for users. In the future, the factory will continue to adhere to the concept of "high quality, high performance, and high service", continuously innovate and expand the market, provide customers with more comprehensive and high-quality fire prevention equipment and services, and contribute its own strength to the safe development of society.

• Factory appearance display

• Bottle storage room

• Cylinder cleaning and pressure testing room

• Agent filling room

• Accessories testing room

• Accessories warehouse

• Product shipment

Products:

Our company's main products are the fm200 series. At the same time, we also sell other fire-fighting equipment, such as gas mask, fire rolling shutters, etc.

The FM200 fire extinguishing series is divided into three types. They are pipe network type fm200 fire extinguishing system, cabinet type fm200 fire extinguishing system, and suspended type fm200 fire extinguishing system. This type of product has been widely recognized as the best substitute for the Halon series.

In addition, our company also has IG series products, such as IG100, IG541, and IG55. These inert gases are environmentally friendly, green, and highly safe.

Main Markets:

Our target customers are countries all over the world that need fire suppression systems. At present, our main markets are located in African and Asian countries and some European countries. Our products have a certain influence in Vietnam and Myanmar and are recognized by local customers. In the future, we will continue to open up markets all over the world to allow more places to recognize our products.
