| Categories | Online Uninterruptible Power Supply |
|---|---|
| Brand Name: | COOLNET |
| Model Number: | AC020/10 |
| Certification: | CE,ROHS |
| Place of Origin: | CHINA |
| MOQ: | 1 Set |
| Price: | USD2000-18000per unit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000 units per month |
| Delivery Time: | 10 days |
| Packaging Details: | Standard export packages |
| Rate Voltage: | 380/400/415VAC(L-L),220/230/240VAC(L-N) |
| Rate Freq: | 50/60Hz |
| Battery Rate Voltage: | ±240VDC(adjustable for 32-44 sections) |
| System Display: | LED + 7 inch touch LCD |
| Input PF: | >0.99 |
| Environment: | 0-40℃(operation);-25~70(storage);0-95% (Humidity,non-condensing) |
| Noise(dB)(1 meter): | 65dB @ 100% load, 62dB @ 45% load |
| Warranty: | 12 months |
| Battery Rate voltage: | ±240VDC |
| Battery Charging Accuracy: | ±1% |
| System Efficiency: | Normal Mode≥96%;BaƩ ery Mode≥96% |
| IP Degree: | IP20 |
| Company Info. |
| Hefei Coolnet power Co., ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

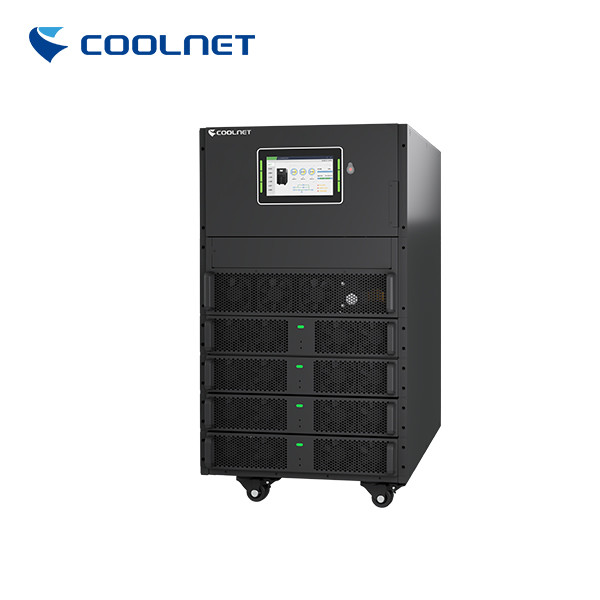

Modular UPS Powers The Future With Efficiency And Reliability
Product Description
The CNM series modular UPS is a next-generation power protection solution designed to meet the evolving needs of modern businesses. With its industry-leading efficiency, unmatched scalability, and robust reliability features, the CNM series empowers businesses to achieve their sustainability goals while ensuring uninterrupted uptime for their critical operations. |  |
Product Feature
 |
Up to 99% efficiency reduces energy consumption and operating costs, contributing to a greener future.
Modular architecture allows for seamless expansion of power capacity as your business grows, eliminating the need for costly overprovisioning.
Built with high-quality components and rigorous testing, the CNM series delivers a mean time to failure (MTTF) of over 1 million hours, maximizing uptime and minimizing disruptions.
N+1 redundancy ensures continuous operation even in the event of a power module failure, providing unparalleled resilience for your critical applications.
Equipped with a comprehensive suite of management features, including SNMP, web interface, and CLI, the CNM series offers comprehensive remote monitoring and control, empowering you to optimize your power infrastructure. |
Product Advantages
The CNM series' exceptional efficiency significantly reduces energy consumption and carbon emissions, helping businesses achieve their sustainability goals and contribute to a cleaner environment.
The modular design allows for flexible expansion of power capacity as your business grows, eliminating the need for costly investments in new UPS systems and ensuring a future-proof power solution.
The CNM series' high reliability and redundancy features minimize downtime and disruptions, maximizing uptime and protecting your critical applications from costly outages.
N+1 redundancy ensures continuous operation even in the event of a power module failure, providing unparalleled resilience and protecting your mission-critical operations from unexpected disruptions.
The advanced management features offer comprehensive remote monitoring and control, empowering you to optimize your power infrastructure, enhance efficiency, and proactively address potential issues. |  |
Data Sheet
| Model CNM | 100/25 | 120/30 | 150/25 | 180/30 |
| Rate Power | 100KVA/100KW | 120VA/120KW | 150VA/150KW | 180KVA/180KW |
| Main input | ||||
| input | 3P5W(3P+N+PE) | |||
| Rate Voltage | 380/400/415VAC(L-L);220/230/240VAC(L-N) | |||
| Rate Freq | 50/60Hz | |||
| input PF | >0.99 | |||
| Current Distortion | THDi<3%(100%Linear load) | |||
| Voltage Range | 304-478VAC(L-L)full load;304-228VAC(L-L)power derate from 100%to 75% | |||
| Freg.Range | 40-70Hz | |||
| Battery | ||||
| Rate voltage | ±240VDC | |||
| Charging Capacity | 20%*Pout | |||
| Charging Accuracy | ±1% | |||
| Bypass | ||||
| Rate Voltage | 380/400/415VAC(L-L);220/230/240VAC(L-N) | |||
| Voltage Range | Range:-40%-+25%,Settable,default-20%~+15% | |||
| Overload | 110%,long time operation;110%<load<125%,5 mins 125%<load<150%,1min;>150%,1second | |||
| Inverter | ||||
| Rate Voltage | 380/400/415VAC(L-L);220/230/240VAC(L-N) | |||
| Rate Freq | 50/60Hz | |||
| Output PF | 1 | |||
| Voltage Accuracy | ±1.0% | |||
| Load Response | <5%(20%-80%-20%step load) | |||
| Recovery Time | <20ms(0%-100%-0%stepload) | |||
| Output THDu | <1%(linear load),<5%(non-linear load according to IEC 62040-3) | |||
| Overload | 110%,1 hour;125%,10 mins;150%,1 min;>150%,200ms | |||
| Frequency Accuracy | 0.1% | |||
| Synchronize Window | Settable,+0.5Hz-±5Hz,default+3Hz | |||
| 5lew Rate | Settable,0.5Hz/5-3Hz/5,default 0.5Hz/S | |||
| Crest Factor | 3:1 | |||
| Phase Accuracy | 120⁰ ±0.5° | |||
| System | ||||
| Efficiency | Normal Mode296%;Battery Mode296% | |||
| Display | LED+7 inch touch LCD | |||
| Certification-Safety | EC62040-1,IEC60950-1 | |||
| Certification-EMS | EC62040-2;IEC61000-4-2(ESD);IEC61000-4-3(RS);IEC61000-4-4(EFT);IEC61000-4-5(Surge) | |||
| P Degree | IP20 | |||
| Configuration | USB,RS232,RS485,Dry contact,Cold start | |||
| 0ption | SNMP card,A5400 card,Parallel kit,LBS,Airfilter,Bottom entry kit,Wheels kit | |||
| Environment | 0-40°℃(operation);-25~70(storage);0-95%(Humidity,non-condensing) | |||
| Noise(dB)(1meter) | 65dB@100%load,62dB @45%load | |||
| Dimentio | ||||
| Cabinet(W*D*H)mm | 482*816*796(18U,wheels not included | 482*816*1018(23U,wheels not included | ||
| Module(W*D*H)mm | 440*678*85(2U) | |||
