| Categories | Network Switch |
|---|---|
| Brand Name: | H3C |
| Model Number: | H3C S6720-30c-Ei-24s-DC Switch |
| Place of Origin: | Fujian, China |
| Price: | $1,300.00/pieces 1-9 pieces |
| MOQ: | 1 unit |
| Private Mold: | NO |
| Products Status: | Stock, Used, Stock |
| Ports: | ≥ 48 |
| Transmission Rate: | 10/100/1000Mbps |
| Function: | LACP, SNMP |
| Communication Mode: | Full-Duplex & Half-Duplex |
| Switch Capacity: | 56 Gb/s |

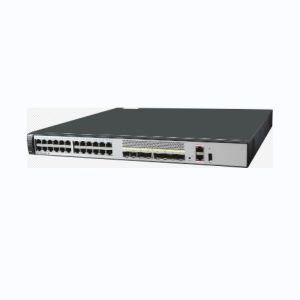

| Product Name: | H3C S6720-30c-Ei-24s-DC Switch |
| Type: | Rack |
Item | H3C S6720-30c-Ei-24s-DC Switch |
Memory (RAM) | 2 GB |
Flash | 512 MB in total. To view the available flash memory size, run the
display version command. |
Mean time between failures (MTBF) | 80.60 years when no interface card is configured; 70.79 years when
a 4-port 40GE interface card is configured |
Mean time to repair (MTTR) | 2 hours |
Availability | > 0.99999 |
Service port surge protection | NA |
Power supply surge protection | * Using AC power modules: ±6 kV in differential mode, ±6 kV in
common mode * Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode |
Dimensions (W x D x H) | 442.0 mm x 420.0 mm x 44.4 mm (17.4 in. x 16.5 in. x 1.74 in.) |
Weight (including packaging materials) | 9.8 kg (21.61 lb) |
Stack ports | * Any 10GE SFP+ ports on the front panel (a maximum of 16 physical
ports) * Any 40GE QSFP+ ports (a maximum of 6 physical ports) |
RTC | Supported |
RPS | Not supported |
PoE | Not supported |
Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC |
Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz -38.4 V DC to -72 V DC |
Maximum power consumption (100% throughput, full speed of fans) | 212.5 W |
Typical power consumption (30% of traffic load) * Tested according
to ATIS standard * EEE enabled * No PoE power consumption | 50.1 W (without card) |
|
