| Categories | Servo Electric Gripper |
|---|---|
| Brand Name: | RobustMotion® |
| Model Number: | RM-GB-17-60-2-1-H-ITG |
| Certification: | CE, RoHs |
| Place of Origin: | China |
| MOQ: | 2 pieces/sets |
| Price: | Negotiable |
| Payment Terms: | Bank transfer |
| Supply Ability: | TBC |
| Delivery Time: | 5-15work days |
| Outlet Direction: | Side Wiring |
| Outgoing Line Method: | Horizontal Wiring |
| Stroke (mm): | 60 |
| Max.Gripping Force (N): | 175 |
| Max.speed (mm/s): | 100 |
| Repeat Positioning Accuracy (mm): | ±0.05 |
| Backlash (mm): | < 0.1 ( Single-Side） |
| Permissible Load Torque (N.m): | MR:58.5,MP:15.0,MY:25.5 |
| BUS Control: | Modbus RTU |
| Interface: | Input 2 Points(NPN), Output 3 Points(NPN) |
| Rated Voltage （V）: | DC24±10% |
| Rated Current (A): | 4 |
| Weight (kg): | 2.3 |
| Usage Environment: | 0~40℃、< 85%RH ( Without condensation) |
| Protection Class IP: | IP40 |
| Company Info. |
| Foshan Augmented Intelligence Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

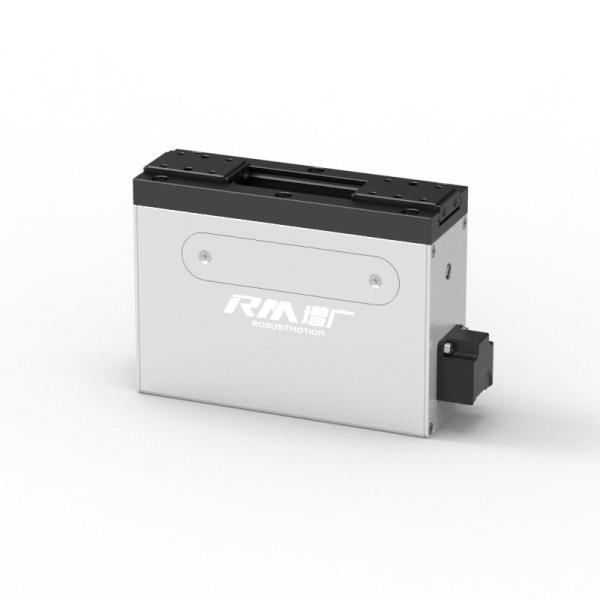

The servo gripper jaw (RM-GB-17-60-2-1-H-ITG) is designed to
provide excellent performance and efficiency in various complex
working environments. Its high rigidity, high load capacity, and
high precision enable it to handle items of different weights with
ease.
One of the key advantages of this gripper is its adaptability to
different types of robots, including collaborative robots and
industrial robots. It can be used for a wide range of processes
such as assembly, transport, and palletizing.
The RM-GB-17-60-2-1-H-ITG has a clamping stroke of 60mm, allowing
it to firmly grip objects. It also has a guide range of 2,
providing precise control over the gripping action. With a side
exit position and horizontal exit mode, it offers flexibility in
handling items.
The gripper's controller-built design, known as RM-GB, sets it
apart from similar products. It has a maximum payload capacity of
up to 7kg, which is 2-3 times its own weight. This capability
allows it to handle heavy and bulky items effortlessly.
The maximum clamping force of the RM-GB-17-60-2-1-H-ITG is 175N,
making it one of the most powerful grippers in its category. This
force ensures a strong grip even on delicate miniature items,
making it suitable for a wide range of applications.
Furthermore, the gripper has a remarkable service life of up to 10
million cycles. It is built to withstand extreme loads without
failure, ensuring its long-term reliability in demanding industrial
environments.
In summary, the servo gripper jaw (RM-GB-17-60-2-1-H-ITG) stands
out for its strong clamping force, efficient control, and
adaptability to different robots. With its high rigidity, load
capacity, and precision, it can handle various items from miniature
to heavy-duty types. Its durability and stability make it a
reliable choice for assembly, transport, and palletizing processes.
|
