| Categories | CPU Thermal Pad |
|---|---|
| Brand Name: | Ziitek |
| Model Number: | TIF160-50-11US thermal pad |
| Certification: | UL |
| Place of Origin: | China |
| MOQ: | 1000 pcs |
| Price: | 0.1-10 USD/PCS |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Delivery Time: | 3-8 work days |
| Packaging Details: | 25*24*13cm canton |
| hardness: | 20 shore00 |
| KEYWORD: | gray silicone rubber pads |
| name: | Led Controller 1.5mmt Cpu Pad Available In Varies Thicknesses |
| part number: | TIF160-50-11US |
| material: | silicone |
| Company Info. |
| Dongguan Ziitek Electronical Material and Technology Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

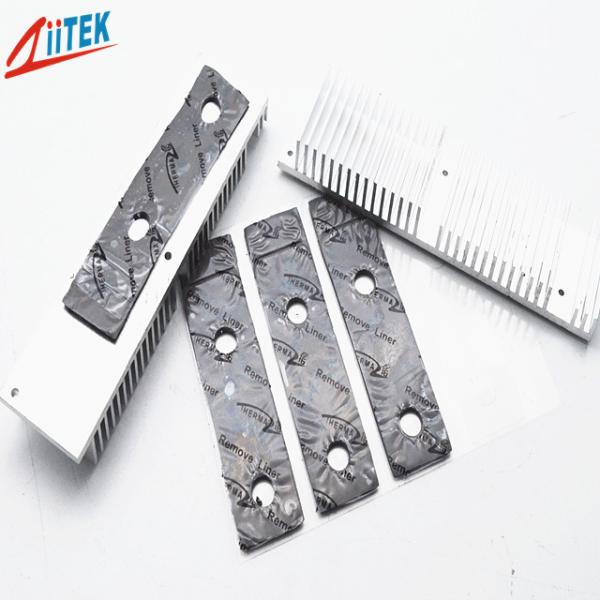

Available in varies thicknesses Outstanding thermal performance silicone sheets for LED Controller ,1.5mmT
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
<Moldability for complex parts
<Outstanding thermal performance
<High tack surface reduces contact resistance
<LED Power Supply
<LED Controller
<LED Ceilinglamp
<Monitoring the Power Box
<AD-DC Power Adapters
<Rainproof LED Power
Typical Properties of TIF160-50-11US | |||
Product Name | TIF160-50-11US Series | ||
Colour | gray | ||
Construction & Compostion | Ceramic filled silicone elastomer | ||
Specific gravity | 2.9 g/cc | ||
Thickness | 1.5mmT | ||
Hardness | 20 Shore 00 | ||
Dielectric constant@1MHz | 4.2 MHz | ||
Continuos Use Temp | -40to 160℃ | ||
Dielectric Breakdown Voltage | >5500 VAC | ||
Thermal conductivity | 5.0 W/mK | ||
| Volume Resistiviyt | 1.0*1012 Ohm-cm | ||
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
FAQ
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
|
