| Categories | Rail Transfer Cart |
|---|---|
| Brand Name: | steerable dies rail transfer carts |
| Model Number: | steerable dies rail transfer carts |
| Certification: | CE ISO SGS |
| Place of Origin: | China(Mainland) |
| MOQ: | 1 set |
| Price: | USD 2000~7500 SET |
| Supply Ability: | 100 SETS MONTH |
| Delivery Time: | 20 work days after received balance payment |
| Packaging Details: | trap and wooden case |
| Product Name: | steerable dies rail transfer carts |
| Usage: | Heavy Duty |
| Application: | Transfer Materials |
| Running speed: | 0-20m/min |
| Certificates: | CE ISO SGS |
20ton cable drum power rail traveling ladle transfer cart

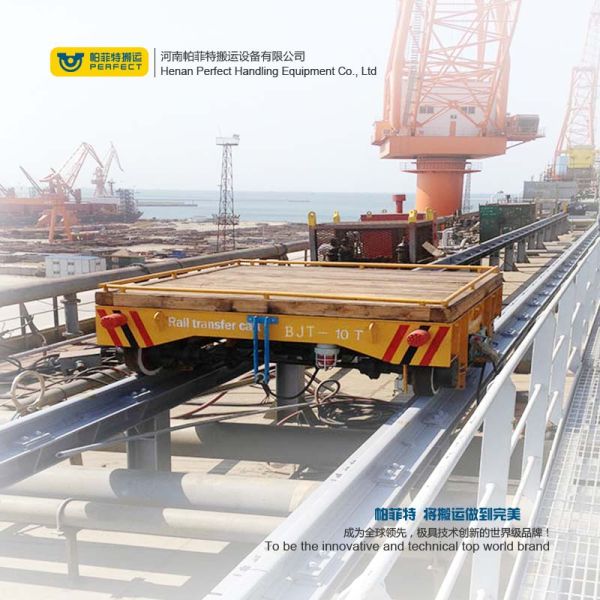

This steerable dies rail transfer carts is usually used at ship yard, plant and factory, certain production line. The ladle transfer cart is powered by the cable drum. The steerable dies rail transfer carts was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities. ladle transfer cart construction is based on our world renowned steerable dies rail transfer carts and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress. Our steerable dies rail transfer carts is available in a number of configurations specifically designed to suit the needs of our customers.
NOTES:
| Model | BJT-2t | BJT-20t | BJT-50t | BJT-100t | BJT-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 500 | 600 | 700 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) | 25 | 30 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.5 | 5.6 | 7.8 | 14.1 | 26.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
|
