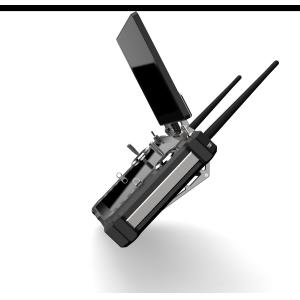

T30S all-in-one hand-held GCS is perfectly suitable for small and medium-range drones with dual 10.1inch display screen

The T30s all-in-one hand-held GCS is a portable lightweight and rugged ground computer station with dual-screen FHD sunlight readable touch screen displays, integrated industrial-grade PC system, video& data link and remote control system.T30s provides the function such as mission planning, attitude control,payload control,remote monitoring,real-time video display,etc. With Windows/Linux platform, T30s supports the most ground control station software.Easy operation and carrying.

Product Features

• Dual high brightness touch screens, support the main and secondary screen settings.

• The max resolution of the HD screen is 1920*1200, and the max brightness can reach 800nit.

• Common platform,adaptation in most of the flight control system on the market;

• 3 frequency bands integrated into one(800MHz, 1.4GHz,2.4GHz),it can be modified in the software, communication range: 10km+

• Multiple external expansion ports: TTL, RS232;Extensible aviation plug port.

• The upper screen can be inputted the HDMI video, also can be used for computer screen expansion.

• Universal platform, compatible with most of the flight control systems on the market

• High integration of video&data&RC link, highly convenient for individual operation in the field

• Self-developed dual independent SBUS output with every channel programmable enables to control the drone and the payload together.

• WiFi, Bluetooth,4G,Gigabit LAN port, HDMI output, built-in hi-fi, able to connect headphones.

Product Parameters

FAQ:
Q: Who we are?

A: We are a world-leading high-tech enterprise specializing in the R&D and production of dual-screen ground control stations, portable ground control stations, military ground control stations and data link modules.

Q: Could you support OEM&ODM ?

A: We are able to offer you the best solutions on market by providing you OEM/ODM service.

Q. How long is the delivery time ?.

A: Normally small quantity orders will be dispatched within 2-5 working days after receiving payment. For bulk order, we will ship out within 10-15 days..

Q. How do we make a business long term and good relationship with you?

A. We will protect our partner's profit by providing them with good quality products and competitive prices. We treat every customer as a friend and do business with everyone sincerely. no matter where they come from.

Q: How can you guarantee quality?

A: For all systems before shipment, will undergo a series of tests, including vibration testing, test for functional interface&RF indicators&sensitivity&parameter settings, high and low temperature testing, trial aging testing, test the interface and all wiring, field testing outsides etc.

Chinowing has a label as the leading developer of the portable and handheld ground control system in China. Yes, indeed! We love this label.

In an earlier time, the Chinowing team was in the development of UAVs. Each time, the team went out for the flight test and demo, a bulky ground control station was needed to carry, or a 3rd party video&data link with all kinds of wires, remote controller and the computer. Long deployment time, easy failure. If there is a portable all-in-one system that can do command&control, check the real-time video and be free of all kinds of connection wire, that would be too fine.

At that time, there was rarely any handheld GCS used, not any developers in our market. Chinowing CTO, Mr Hu Yanbin, with over 8 years experience in control system development and 5 years experience in the unmanned domain, began the adventure in 2015 to develop handheld GCS, all-in-one video&data&RC link with the brand Chinowing and have realized the high integration. Since the foundation, we have set out to develop high-performance products which are easy to use and integrate, with high criteria to meet the professional standards.

Until now, the Chinowing team has developed eight generations of portable GCS to cater to different application scenarios. The domestic origination dual SBUS output with each channel programmable enables remote control of the drone and the payload together, the user can self-define each channel. With the feature of being user-friendly, our devices have been widely used as remote control devices for UAV, UGV, robots, etc in defence, industrial applications.

Being a customer-obsessed business, we will and continue to invest heavily in R&D and be preoccupied with the wants and needs of customers.
