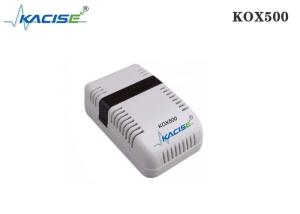

KOX500 Series O2 Sensor ABS Shell High Measurement Accuracy

Name: KOX500 Series O2 Sensor ABS Shell High Measurement Accuracy
Brand: Kacise
Price: 124 USD

KOX500 Series O2 Sensor ABS Shell High Measurement Accuracy

Categories	Gas Detector Sensor
Brand Name:	Kacise
Model Number:	KOX500
Place of Origin:	China
MOQ:	1
Price:	124~144USD/pc
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100+
Delivery Time:	5-8 work days
Packaging Details:	carton About 80 g
Measurement accuracy:	± (0.3%VOL+ 5%FS)
Measuring range:	0 ~ 25% VOL
Response time:	<15s
Signal output:	4 ~ 20 ma / 0 ~ 10 v UART RS485
Signal type:	RS485 serial port output
RS485 type:	Multiple, half duplex
Connection:	2 wire system, maximum communication distance 1200 meters, cable direct connection
Power supply:	12VDC±10% 220VAC 50HZ
The shell:	ABS(grey)

Contact Now

Add to Cart

Company Info.

Xi'an Kacise Optronics Co.,Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

KOX500 Series O2 Sensor ABS Shell High Measurement Accuracy

First-class quality & Professional service

Production Introduction

The sensor module adopts high precision detection technology and the core sensor adopts electrochemical sensor. The module uses a high-performance microprocessor and is equipped with different gas sensors to measure the corresponding gas. With digital output and analog voltage output, convenient for users to use and debug, greatly shorten the user's design and development cycle. It combines electrochemical sensor and circuit perfectly to meet the needs of customers for different gas detection occasions.

The module provides 4-20MA, 0-10V, RS485 output, suitable for a variety of customer application scenarios.

Features

Ø Different gas sensors can be mounted to measure the corresponding gas

Ø Advanced circuit design, high measurement accuracy, stable performance

Ø Lightweight case for easy field installation

Ø Rich interface, convenient for customers to choose

Ø Provide zero point calibration

Application

Ø Air quality monitoring

Ø Smart Buildings

Ø Granary air detection

KOX500 size structure chart

Sensor size (unit mm)

KOX500 technical parameters

Class	Performance	Parameter
O2	Sensor type	Electrochemical principles
	Measurement accuracy	± (0.3%VOL+ 5%FS)
	Measuring range	0 ~ 25% VOL
	Response time	<15s
	Calibration	Standard calibration
output parameter	Signal output	4 ~ 20 ma / 0 ~ 10 v UART RS485
485 parameter	Signal type	RS485 serial port output
	RS485 type	Multiple, half duplex
	Connection	2 wire system, maximum communication distance 1200 meters, cable direct connection
	Address	1-254, through software Settings, broadcast address 255, default address 32
	Communication Protocol	MODBUS-RTU,
	Data Format	1 start bit, 8 data bits, no oddity, 1 stop bit
	Baud rate	The default value is 9600bit/s
The energy consumption	Power supply	12VDC±10% 220VAC 50HZ
Connection mode	Terminal	2.54mm four-core socket
The environment	Working environment	Temperature -20...+ 50 ℃ Humidity 15...90%RH, no condensation
The environment	Storage environment	Temperature 10...+ 30 ℃ Humidity 0-90%RH, no condensation
Protection grade	Enclosure protection class	IP30 Refer to IEC 529 -- 598/GB 700 -- 86/ GB 4208
Materials and Colors	The shell	ABS(grey)
Materials and Colors	Weight	About 80 g

Ordering information

Ordering Information Selection Table
Product	Power supply	Cable length	Signal output
KOX500	O2 Gas Sensor
	12VDC	The power supply is 12VDC (Default)
	220V/110VAC	The power supply is 220/110VAC
		Cable length
		XXm	The default is 5meters the longest is 500m
			4-20mA	4-20mA output without RS485 output
			RS485	RS485 output without 4-20mA output (Default)
			ARS485	4-20mA output with RS485 output
				Modbus-RTU	protocol of RS485 output is Modbus-RTU (Default)
				Modbus-ASC	protocol of RS485 output is Modbus-RTU
				customized	Support OEM
KOX500	DC12V	5m	RS485	Modbus-RTU

Matters needing attention

Ø In environments with EMC problems, shielded cables must be used.

Ø When the module is started cold, the preheating time should not be less than 2 minutes.

Ø The sensor should be calibrated regularly, and no more than 3 months is recommended.

Ø Do not use the sensor in a dust dense environment for a long time.

Ø Please pay attention to the wiring of the positive and negative terminals of the power supply and the signal output terminals. Do not connect backward.

Ø High concentration of chemical pollution will lead to the damage of sensor polymerization layer, therefore, the product should be kept and used away from chemical pollution sources.

Ø Please refer to the relevant national product installation standards for the installation process.

Summary appendix

Abbreviation	Paraphrase
VOL	100PPM
O2	Oxygen molecular formula
LCD	Liquid Crystal Display
RS485	asynchronous serial
DC	Direct Current
AC	Alternating Current
PVC	Polyvinyl chloride
