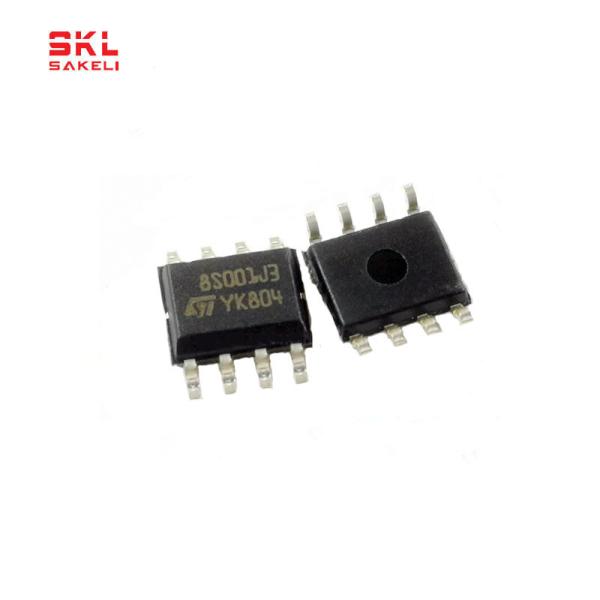

STM8S001J3M3TR 8-SOIC MCU Microcontroller Unit with High Performance and Low Power Consumption

STM32F769NIH6 MCU Powerful Microcontroller for High Performance Applications

Features
Core:

• 16 MHz advanced STM8 core with Harvard
architecture and 3-stage pipeline
• Extended instruction set
Memories
• Program memory: 8-Kbyte Flash memory; data
retention 20 years at 55 °C after 100 cycles
• RAM: 1 Kbyte
• Data memory: 128-byte true data EEPROM;
endurance up to 100 k write/erase cycles
Clock, reset and supply management
• 2.95 V to 5.5 V operating voltage
• Flexible clock control, 3 master clock sources
– External clock input
– Internal, user-trimmable 16 MHz RC
– Internal low-power 128 kHz RC
• Clock security system with clock monitor
• Power management
– Low-power modes (wait, active-halt, halt)
– Switch-off peripheral clocks individually
– Permanently active, low-consumption
power-on and power-down reset
Interrupt management
• Nested interrupt controller with 32 interrupts
• Up to 5 external interrupts
Timers
• Advanced control timer: 16-bit, 2 CAPCOM
channels, 2 outputs, dead-time insertion and
flexible synchronization
• 16-bit general purpose timer, with 3 CAPCOM
channels (IC, OC or PWM)
• 8-bit basic timer with 8-bit prescaler
• Auto wakeup timer
• Window and independent watchdog timers
Communications interfaces
• UART, SmartCard, IrDA, LIN master mode
• SPI unidirectional interface up to 8 Mbit/s
(master simplex mode, slave receiver only)
• I2C interface up to 400 Kbit/s
Analog to digital converter (ADC)
• 10-bit ADC, ± 1 LSB ADC with up to 3
multiplexed channels, scan mode and analog
watchdog
• Internal reference voltage measurement
I/Os
• Up to 5 I/Os including 4 high-sink outputs
• Highly robust I/O design, immune against
current injection
Development support
• Embedded single-wire interface module
(SWIM) or fast on-chip programming and nonintrusive debugging
