VMC1600 CNC Vertical Machining Center 3/4 Axis CNC Milling Machine SMTCL SYMG

Categories	CNC Vertical Machining Center
Brand Name:	SMTCL/SYMG
Model Number:	VMC 850 Q
Certification:	ISO certification
Place of Origin:	China
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 sets per month
Delivery Time:	45-60 days
Packaging Details:	The wooden case，Tin trunk ,Other seaworthy packing
Spindle speed::	6000 Rpm
Spindle torque::	95.4Nm
Feed speed::	10m/min
Spindle Taper::	BT50
CNC Control System::	FANUC, Siemens
Table Travel (X) (mm)::	1600
Table Travel (Z) (mm)::	800
Repeatability (X/Y/Z) (mm)::	0.01
X/Y/Z fast movement speed::	24/24/20m/min
Brand Name::	SYMG,SMTCL

Contact Now

Add to Cart

Company Info.

Shanghai HD M&E Tech Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

VMC1600 CNC Vertical Machining Center 3/4 Axis CNC Milling Machine SMTCL SYMG

VMC 1600 The Fine Quality SMTCL SYMG VMC CNC Vertical machining center Lathe machine FANUC system

Lathe machine Overview

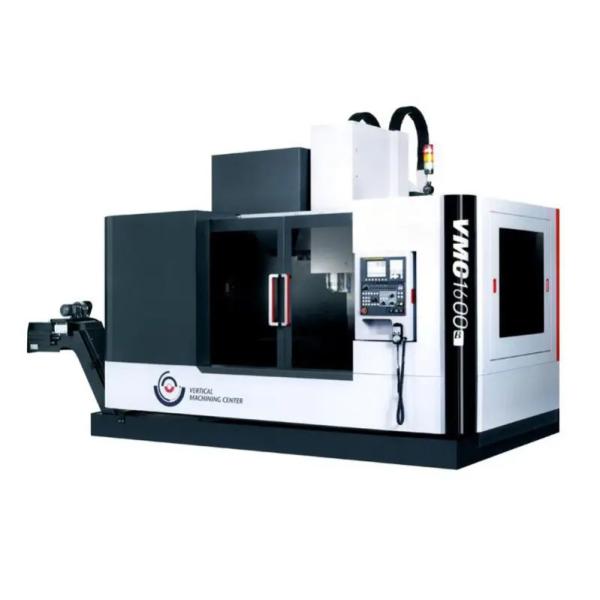

VMC1600 Vertical Machining Center

This new generation VMC1600 vertical machining center adopts vertical frame layout, cross slide structure, high rigid herring column, inverted trapezoidal spindle box, low center of gravity, high rigid bed, three axis roller guide rail, to ensure the machine good running accuracy, high strength and excellent precision stability; The machine structure is simple and compact, the floor area is small, is conducive to the assembly of automatic line; Can be milling surface, drilling, boring, reaming, 2D and 3D surface processing, tapping and other processes of the integration of high-precision machining. Simple operation, high speed and high efficiency, intelligent and stable.

Lathe machine SPECIFICATIONS

Product Introduction

The worktable size of VMC B series from 650*430mm to 2200*800mm, X axis travel from 580mm to 2100mm, various configurations can meet the needs of customers in different fields.

Machine Parameters

Model	Unit	VMC1300B	VMC1600B	VMC2100B
Model	Unit	VMC1300B	VMC1600B	VMC2100B
Worktable dimensions	mm	1400x700	1700x800	2200x800
T-slot sizes	mm	18x5	22x5	22x5
Max. load allowed	kg	1000	2000	3000
X-axis travel	mm	1300	1600	2100
Y-axis travel	mm	700	800	800
Z-axis travel	mm	700	800	800
Max. distance from spindle nose to worktable	mm	850	940	1000
Min. distance from spindle nose to worktable	mm	150	140	200
Spindle taper shank		BT40/BT50/BT50	BT50	BT50
Spindle speed	r/min	8000/6000/6000	6000	6000
Main motor torque	Nm	52.5/71.7/95.4	95.4	380
Main motor power	kW	11/15;15/18.5/15/18.5	15/18.5	15/18.5
X/Y/Z axis rapid speed	m/min	24/24/20;24/24/20 ;24/24/20	24/24/20	18/18/18
Feed speed	m/min	2010/10/10	10	10
Tool magazine form		Mechanical arm	Mechanical arm	Mechanical arm
Tool quantity	pcs	24/20/20	20	20
Tool change time	s	2.5/3.5/3.5	3.5	3.5
Positioning accuracy	mm	0.020/0.012/0.012	0.020/0.012/0.012	0.022/0.012/0.012
Repeatability accuracy	mm	0.012/0.010/0.008	0.012/0.010/0.008	0.013/0.008/0.008
General power capacity	KVA	37	37	37
Air-supply pressure	Mpa	0.5-0.7	0.5-0.7	0.5-0.7
Overall dimensions (LxWxH)	mm	5026x3232x3361	5840x3340x3715	6705x3500x3910
Machine weight	kg	11000	135000	17500
CNC controller		FANUC 0i-MF	FANUC 0i-MF	FANUC 0i-MF

Product advantages

Q1: How can I get a quotation?

A:Leave massage with your purchase requirements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.

Q2: Can you provide customized machine or SPM (Special purpose machine)?

A:Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q3: What's your warranty terms?

A:We will supply a replacement for parts that prove to be defective for a period of 12 months, starting on the machine's bill of lading date.

Q4: Why choose your company?

A:Products from the development, design, manufacture, assembly of the entire production process are carried out between plants with a complete production chain which is your most reliable guarantee. And most of the CNC brands can be chosen as the users' needs.

Q5: Does the standard accessories are included in the price?

A:Yes, all of our prices include listed standard accessories.

Q6: Can your company send the technical personnel to our company and direct our workers overseas?

A:We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q7: How can I choose the most suitable machines?

A:Please list your specifications or the products drawing, we will choose the most suitable machines for you.

Q8: What's your main products of your company?

A:We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center, Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q9: What's the Payment Terms?

A:T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter of credit at sight
