| Categories | Interchangeable Plug Power Adapter |
|---|---|
| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | YHY |
| Model Number: | YHY-140YYYYY |
| Supply Ability: | 450,000 PCS/month |
| Packaging Details: | Brown box+ carton |
| MOQ: | 100 |
| Price: | Negotiable |
| Certification: | UL/cUL/FCC/GS/CE/EMC/PSE/3C/MEPS/BSMI/RCM/KC CEC/Energy Star/Doe vi/CP65 |
| Payment Terms: | T/T, Western Union,Paypal |
| Delivery Time: | 12-14 workdays after receipt of your oder |
| Output Type: | DC |
| Connection: | Plug In |

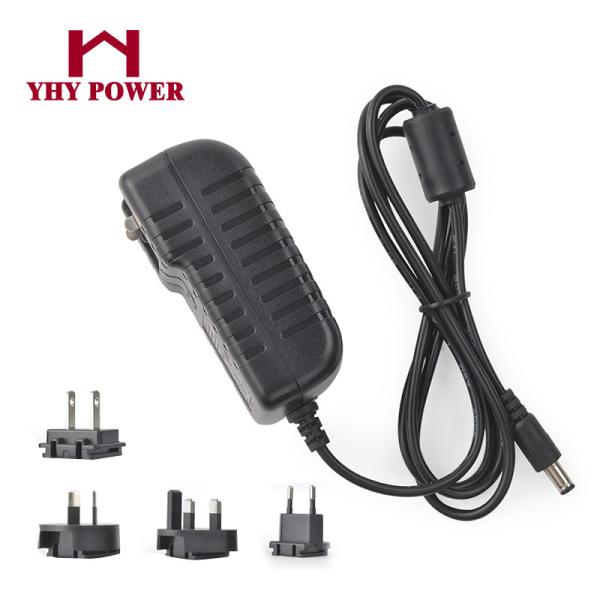

| Product Name: | 14v 1.07a interchangeable plug adapter |
| Input: | AC 100-240v 50-60hz |
| Output voltage: | 14V |
| Output current: | 10-2000mA |
| DC connector: | Male OD5.5mm*ID2.1mm*L10mm |
| EMC&LVD: | YES |
INPUT CHARACTERISTICS:
Rated Voltage:100~240Vac,Rated Frequency: 50/60Hz.
Variation Range:90-264Vac,Variation Frequency:47-63Hz
No-load power consumption
0.21W Max.At115Vac/230Vac input.
OUTPUT CHARACTERISTICS:
Voltage:14vdc Rated. Load: 10~2000mA Output power:3.3~24Watt
Efficiency:≥88%
| Wall mount type Series | Max. Power | Output Current |
| YHY-WL050S | 5W | 10~1000mA |
| YHY-WL012S | 12W | 10~2000mA |
| YHY-WL036S | 36W | 10~3000mA |
| YHY-WL060S | 60W | 10~5000mA |
| Desktop type Series | Max. Power | Output Current |
| YHY-DS012S | 12W | 0.1~1A |
| YHY-DS036S | 36W | 0.1~3A |
| YHY-DS072S | 60W | 0.1~6A |
| YHY-DS100S | 100W | 0.1~8.3A |
| YHY-DS120S | 120W | 0.1~10A |
| YHY-DS150S | 150W | 0.1~12.5A |
PROTECTION FUNCTION:
Short circuit Protection
Over current Protection
Over Voltage Protection
SAFETY AND EMI REQUIREMENT:
HI-POT TEST
HI-POT---A IEC 320 3pin primary to secondary ( FG ) 1700Vac 5mA 1min |
HI-POT---B IEC 320 2pin primary to secondary 3000Vac 5mA 1min |
EMI STANDARD
FCC part 15 : Class B for radiated and conducted emissions
EN55022:2010 , Class B for radiated and conducted emissions
Safety Certification Standards
Trademark | Standard |
| UL/CUL | UL 60950 |
| FCC | 47CFR FCC Part15 |
| CE | EMC&LVD |
| GS | EN60950 |
| PSE | EN60950 |
| SAA | AS/NZS 60950.1:2011 IncA1 |
| C-Tick | EN60950 |
| KC/KCC | EN60950 |
| OTHERS | ROHS / DOE VI / Class2 |
Below standard dc tip size for your reference,customized dc jack also can be acceptable,pls send detail drawing to: may at yhypower.com
1.Manufacturers of power supply,specialized in ac/dc power adapter
2.Located in ShenZhen,mainland China,300-600 employees.
3.OEM/ODM acceptable.
4.35% export to Western Europe,35% to North America and 25% to domestic market.
| 1.Express Freight for small quantity via DHL UPS or TNT | ||
| 2.Ship via air | ||
| 3.Ship via sea | ||
| ITEMS | QTY(EA) | Lead Time(workdays |
| samples | <10 | 3 |
| mass orders | 500~1K | 6~8 |
| 1K~5K | 10~12 | |
| 5K~10K | 18~20 | |
| 10K~30K | 22~25 | |
| REMARK:data of lead time for reference,pls contact sales if need details. | ||
