| Categories | EPS Block Moulding Machine |
|---|---|
| Brand Name: | PIN SHENG |
| Model Number: | PSBM200B |
| Certification: | - |
| Place of Origin: | CHINA |
| MOQ: | 1 |
| Price: | negotiation |
| Payment Terms: | T/T LC |
| Supply Ability: | 5pcs per month |
| Voltage: | 380V 50Hz |
| Power: | 20Kw |
| Weight: | 5000kg |
| Room Height Required: | 6000mm |
| Product: | EPS block |
| Origin: | Zhejiang CHINA |
| Warranty period: | 1year |
| Contrl system: | PLC |
| Delivery Time: | 6-10days |
| Company Info. |
| NINGBO PINSHENG MACHINERY CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

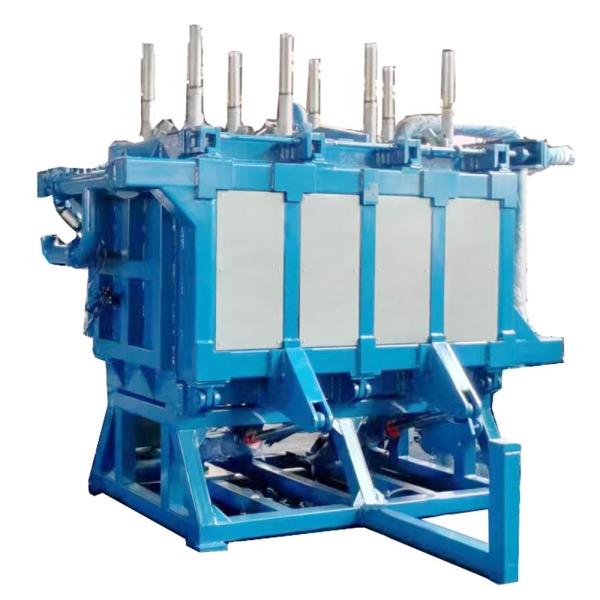

PINSHENG 1.2M EPS MACHINE POLYSTYRENE SHEET PLC CONTROL BLOCK MOULDING
Control System
PLC and human-touch Control, automatic operation, convenient
maintenance.
Structure Design
High quality square tube and steel plate are used for the machine's
structure in perfect Hydraulic station control the signal door,
model's stripping,and locking device.Spare parts and fittings are
high quality products of well-known brand which keep the machine in
along service life.
| Item | Unit | PSBM200B |
| Mould Cavity size | mm | 2040X1240X1030 |
| Block Size | 12g/L | 2000X1200X1000 |
| Steam Inlet | mm | DN50 |
| Steam Consumption | kg/cycle | 25-45 |
| Steam Pressure | Mpa | 0.8 |
| Compressed Air Inlet | mm | DN40 |
| Compressed Air Consumption | m³/cycle | 0.2-0.4 |
| Compressed Air Pressure | Mpa | 0.6 |
| Cooling Water Inlet | mm | DN40 |
| Cooling Water Consumption | m³/cycle | 0.4 |
| Cooling Water Pressure | Mpa | 0.2-0.4 |
| Drainage Vacuum Drain | mm | ∅100 |
| Drainage Condensate | mm | ∅100 |
| Drainage Blower Outlet | mm | ∅100 |
| Throughput | 15kg/m³ | 4min |
| Connected Load | kw | 20 |
| Outside Dimension | mm | 5700X4000X2800 |
| Weight | kg | 5000 |
| Room Height Required | mm | 6000 |
|
