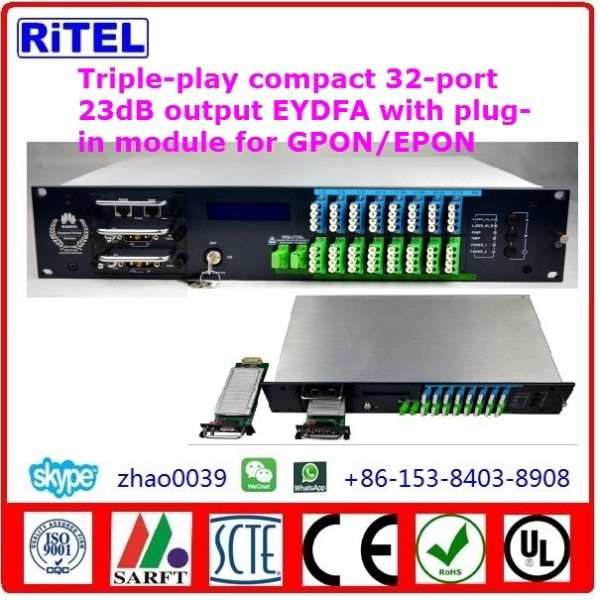

32*23dBm compact FTTx EPON&GPON PON EDFA(EYDFA)-32xx Plug-In Module design for HUAWEI

Name: 3223dBm compact FTTx EPONGPON PON EDFAEYDFA32xx PlugIn Module design for HUAWEI
Brand: RITEL
Price: 900.00 USD

32*23dBm compact FTTx EPON&GPON PON EDFA(EYDFA)-32xx Plug-In Module design for HUAWEI

Categories	Fiber Optics
Place of Origin:	CHINA
Brand Name:	RITEL
Certification:	CE
Model Number:	32*23dBm compact FTTx EPON&GPON PON EDFA(EYDFA)-32xx Plug-In Module design for HUAWEI
MOQ:	1PCS
Price:	$900.00~$2000.00
Packaging Details:	Carton, box
Delivery Time:	5~7 days
Payment Terms:	T/T, Paypal, Western Union
Supply Ability:	50~100pcs per months
materials:	aluminum rack mount
color:	black or grey
industry:	fttx, triple play, access network
output:	high power output

Contact Now

Add to Cart

Company Info.

RITEL INDUSTRY TECHNOLOGY CO., LTD

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

32*23dBm FTTx Triple play compact EPON&GPON PON Built-in WDM EDFA(EYDFA)-32xx with Plug-In Module for HUAWEI

Features

■ Wavelength 1550+/-15nm

■ Output power range 27~39dBm(total output)

■ Plug & play module infrastructure

■ 8/16/32/64 output

■ NMS management

■ 19” 1U/2U rack mount

Specifications

Items	Unit	Parameter	Remark
Optical Parameter
CATV wavelength	nm	1530~1565
OLT wavelength	nm	1310/1490
CATV insertion loss	dB	0.8
OLT insertion loss	dB	0.8
Isolation CATV/OLT	dB	40
CATV Input optic power	dBm	-5~+10
Nominal optical power	dBm	3
Noise figure	dB	4.5~5.0
Gain flatness	dB	+/-0.3
Output power	dBm	27~39	total output
Output power stability	dB	+/-0.5
Output port		4	8/16/32
Polarization dependence loss	dB	0.3
Polarization dependence gain	dB	0.4
Polarization dispersion	ps	0.3/nm
Pump leakage	dBm	-30
Optic connector		SC/APC	FC/APC
General
Network Interface		RJ45
Power	V	AC90～265	48VDC
Power consumption	W	50~150
Working Temperature	C	0～50
Storage Temperature	C	-20～85
Relative Humidity	%	5~95
Dimension	mm	48338744 48338788	19"15.2"1.75" 19"15.2"3.5"
Weight	Kg	4~11	8.8~24.2lb

Order Information
