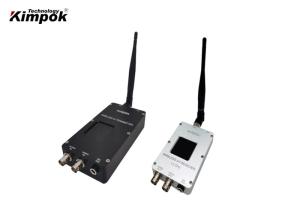

Powerful FM Wireless AV Transmitter And Receiver With BNC Input

Powerful FM Wireless AV Transmitter and Receiver with BNC Input

Analog wireless video transmitter Description:

If you are seeking an equipment that can transmit the audio and video to a long distance without cable, for example the villa, small lake, bridge or some other open areas, this transmitter system is the right one you need.

This equipment will cover a long distance in the open area around 10-20km LOS, 5km NLOS on ground, and 30km LOS from air to ground. But when there are obstacle between the transmitter and receiver, it will be decided case by case.

This unit is the professional one and the signal is very strong in 1.2 GHz series that can be used to cover the long distance where need strong signal and the industrial project.

Tx Specification:

Model	KP-12TX10W
Voltage	12V DC
Current	2A
Frequency	1.2 GHz
Number of channels	4 Channels
Frequency band	1.080Ghz, 1.120Ghz, 1.160Ghz, 1.200Ghz
Transmit Power	10 watt
Video Output	1 Vp-p(FM)
Audio Output	1 Vp-p(FM)
Audio Carrier Ware	5.5M 6.0M
Distance	10~20km LOS on ground, 30km from air to ground
Dimensions (L * W * H)	1506530mm
Temperature	-10℃ ~ +50℃
Transmitter Weight	200g
Accessories	Transmitter, AV cable, high gain antenna

Rx specification:

Frequency	1.2 Ghz
Channel	8 channels
Frequency band	1.080Ghz, 1.120Ghz, 1.160Ghz, 1.200Ghz, 1.240Ghz, 1.280Ghz, 1.320Ghz, 1.360Ghz
Working voltage	DC 12V
Current consumption	260mA
Weight	90g
Size	1206020mm
Accessories	receiver, antenna, AV cable

Features:

1. Using FM mode, anti-interference ability, good image quality;
2. Image, audio sync, color black and white compatible;
3. Small size, light weight, easy to carry, good installation;
4. Responsive, timely, send and receive real-time transmission;
5. Wireless transmission: no need to set up communications cable;
6. Highly integrated, stable and reliable transmission distance;
7. DC power supply, easy to use;
8. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.

High gain antenna for Tx:

Installing:

Application:

It's not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment.

FAQ:

Q1: What can I buy from you?

COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.

Q2: Why should I choose you?

Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.

Q3: Do you have a minimum order quantity?

No MOQ limit, 1pc is acceptable.

Q4: What kind of product service can I have?

OEM & ODM service.

Q5: What is the product warranty?

We offer two-year-warranty and lifelong maintenance.

Q6: What is the average lead time?

5-7 working days for regular model, and 20-30 working days for customized model.

Q7: What kinds of payment methods do you accept?

We accept bank transfer, Western Union, PayPal, or cash payment.

Q8: Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.

Our Service:

One-stop ODM/OEM solution;
24-hour technical support;
Lifelong maintenance (Replacement parts will be charged after a year);
Provide professional system design and construction;
You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 2008, we are the source.
