| Categories | Pasteurizer Machine |
|---|---|
| Brand Name: | QJ |
| Place of Origin: | Shanghai |
| MOQ: | >=1 |
| Payment Terms: | L/C, T/T |
| Packaging Details: | International standard package of your requst |
| Warranty: | 1 Year |
| After-sales service provided: | Engineers available to service machinery overseas |
| Condition: | New |
| Material: | 304 Stainless Steel |
| Usage: | Milk,Beer,Water bath juice pasteurization machine,juice and milk |
| Sterilization temperature: | 60~99 centigrade (Adjustable) |
| Temperature: | adjustable from 0-100degree |
| Company Info. |
| KUNSHAN YGT IMP.&EXP. CO.,LTD |
| View Contact Details |
| Product List |

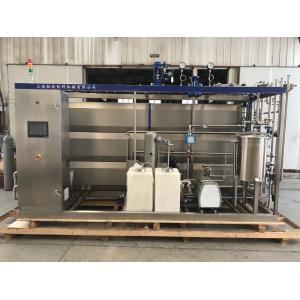

The plate sterilizer machine is sterilization equipment specially
designed for juice,tea drinks or similar liquid materials. It is
the ideal equipment that material can extend the shelf life purpose
through sterilizing and cooling. According to users' different
requirements to material heating, sterilization, heat preservation
and cooling, to design various technical requirements for different
flow assembly, meet the technological requirements and have all
kinds of security protection measures and high temperature alarm,
low temperature function of the back flow. At the same time,
according to users' requirements, corresponding configuration of
high accuracy of the automatic control system.
Semi-automatic configuration: the whole process of operation is
semi-automatically control. Operator can control the pumps, valves
and back flow function on the control panel. By the temperature
control PID to maintain the sterilization temperature.
Sterilization temperature has a continuous record.
For milk:
5°C milk→65°C-75°C Homogenize→85°C-90°C Pasteurize(15s)→4°C Packing
For Juice:
Juice 30°C→ (65-75)°C Homogenize→(137)°C Sterilize(4s)→88°C filling and
packaging→30-45°C Circumfluence
Characteristics:
1. Heat transferring efficiently
2. Energy saving
3. Temperature controlling is more accuracy
4. No touching the liquid, more hygiene
5. Cleaning more easily
main technical standards
| Model | DK-UHT-1 | DK-UHT-2 | DK-UHT-3 | DK-UHT-4 | DK-UHT-5 |
| Production capacity(T/h) | 1 | 2 | 3 | 4 | 5 |
| Heat exchanging area(m2) | 16 | 26 | 38 | 46 | 56 |
| Material inter temperature(oC) | 5 | 5 | 5 | 5 | 5 |
| Material outer temperature(oC) | 5 | 5 | 5 | 5 | 5 |
| Sterilizing temperature(oC) | 137 | 137 | 137 | 137 | 137 |
| Warm keeping time(S) | 4 | 4 | 4 | 4 | 4 |
| Ice water temperature(oC) | 1 | 1 | 1 | 1 | 1 |
| Ice water consumption(T/h) | 3 | 2 | 6 | 8 | 12 |
| Joint size(mm) | 25 | 38 | 38 | 51 | 51 |
| Weight(kg) | 980 | 1080 | 1160 | 1350 | 1680 |
| Size | 1500*1500*2000 | 1900*1800*2200 | 2100*2200*2500 | 2300*2000*2500 | 2600*2200*2500 |
| Power(kw) | 3 | 4 | 5 | 6 | 7 |
This product consists of three parts, heating, sterilizing and cooling, and plate and tube sterilization can be combined in many ways with two separate heating and cooling sections for in-line homogenization. The temperature of the product can reach 140 degrees centigrade. All parts of the equipment in contact with the products are made of SUS 316 stainless steel. The sleeves, washers and seals are made of food grade fluorine rubber. DIN pipe fittings are used to connect the product pipes. In the display output, the UHT type sterilization machine configurable touch screen PLC semi-automatic program control and manual control system, and can according to user requirements selection pressure gauge or digital sensor, the temperature of the product flow and other parameters to reflect the dynamic. Therefore, the equipment can simulate the vast majority of industrial production in the laboratory.
We Mesure Company can help our customer to build them factory house , support A to Z whole solution.
We will reply you at first time. And we have professional engineers can help you.
Installation and commissioning
After the equipments arrived buyer's workshop, the buyer should
take it's place for each equipment according to the supplied
layout; the seller will send the experienced technician to guide
the installation and debugging and trail production, and fulfil the
designed capability within the designed time.
Training
The seller will supply technical training to the buyer. The
training is includes: equipment structure and maintenance, control
and operation. After training, the technicians of the buyer will
grasp relevant operation and maintenance skills, and could adjust
the technologies more skilled, and can deal with all kinds of
malfunction in time.
After-sales service
1) After qualified of the equipment, the seller will supply one
year guarantee, control system one year guarantee, free charge for
wearing parts, and other spare parts with cost price. Within
guarantee period, the technicians who accepted training should
strictly obey the requirements asked by the seller to operate the
equipments and maintenance, to find the common malfunctions and
fault clearing in time; if the technicians of the buyer couldn't
solve the problems themselves, the after-sales department will
supply long range guide service by phone; if relevant measurements
couldn't solve the problems, the seller will send the technicians
to the buyer factory, clear the fault or relevant technical
problems on site, the charges will reference to the installation
and debugging charges.
2) After guaranteed, the seller will supply widely favorable
technical support, after-sales service for the lifetime: favorable
price for the wearing parts and other spare parts.
|
