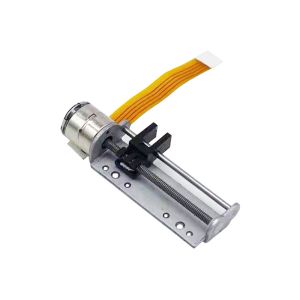

VSM1069 10mm micro slider stepper motor screw stepper motor with bracket 2 phase 4 wire stepper motor

VSM1069 is a precision micro step motor, the output shaft with a pitch of 0.4mm of the screw, through the screw and the screw rod supporting the turn of the screw into a thrust.
Motor basic step angle is 18 degrees, the motor running 20 steps every week, so the resolution of displacement can reach 0.02mm, to achieve the purpose of precision control.
Actuator aspects using subdivision drive way to meet.
Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
The mounting bracket can be changed according to the customer's request.

Our team has more than 10 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!

Mechanical Dimension:MM

Technical Features

VSM1069 is a special precious micro stepper motor (or say linear stepper motor)with a bracket and push,
the moving speed can controlled by the precious micro stepper motor driving pulse frequency, the moving distance can be controlled by the precious micro stepper driving pulse number. for this typical motor, when motor driving 2-2 phase, 1 pulse make the slide move 0.02 mm. forthis type motor, the basic slide is a golden color unit as the photo show, also the slide can customization in any other material or shape.

Typical Applications

• Intelligent Security Products

• Camera Lenses

• Door Locks

• Wearable device


Specifications

High quality and the best price.
Competitive Advantage

• Fast deliver,storage company and rich inventory
• Near Shanghai port, the traffic is very convenient.

Torque Curve For Reference

Type Of Wire Connect For Reference

Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.

Product Detail Presentation
