GXCL SSJ2GXCL OSN 9500 System Control Board

GXCL SSJ2GXCL OSN 9500 System Control Board

As an intelligent optical switching platform, the OptiX OSN 9500 is the optical core switching (OCS) equipment. The OptiX OSN 9500 is mainly used in a national trunk network, provincial trunk network, or MAN trunk network as a node grooming services.

The key functions of the OptiX OSN 9500 are as follows.

• The OptiX OSN 9500 features large switching capacity and flexible networking mode. The OptiX OSN 9500 provides a maximum of 4608 x 4608 VC-4 higher order cross-connect capacity, and a maximum of 32256 x 32256 VC-12 (or 1536 x 1536 VC-3) lower order cross-connect capacity. The OptiX OSN 9500 supports networking schemes, such as the chain, ring and mesh. The OptiX OSN 9500 grooms services in VC-4, VC-3, or VC-12 granularities to meet different network application requirements.
• The OptiX OSN 9500 can access multiple services, such as STM-1(E), STM-1(O), STM-4, STM-16, STM-64, GE and 10xGE services.
• The OptiX OSN 9500 has ASON features, such as automatic end-to-end service configuration, service level agreement (SLA), traffic engineering, mesh networking, and protection.
• The OptiX OSN 9500 can be used alone or together with other optical transmission equipment for networking. In addition, the OptiX OSN 9500 can be interconnected with the SDH and DWDM equipment of the other vendors, which complies with ITU-T Recommendations.

  Specification:

  Service Type	Description
  SDH service	SDH standard services: STM-1/STM-4/STM-16/STM-64 SDH standard concatenation services: VC-4-4c/VC-4-16c/VC-4-64c SDH services with the FEC function: 10.709 Gbit/s NOTE: If a lower order service cannot be added due to insufficient concatenation bandwidth, the user can change the current lower order service configuration to a lower order cross-connect group. Hence, the minimal concatenation bandwidth need be used. When the EXCL cross-connect board is used, two lower order cross-connect protection groups can be configured. A maximum of two 40 Gbit/s lower order cross-connect protection groups are supported. In each protection group, six VC-4s are used for connecting the two lower order cross-connect protection groups. Adding a lower order cross-connect protection group does not affect the current lower order service configuration. After the two 40 Gbit/s lower order cross-connect protection groups are configured, the lower order cross-connect protection groups can be deleted. Before deleting a lower order cross-connect protection group, the user needs to migrate the services in the lower order cross-connect protection group to the other lower order cross-connect protection group.
  PDH service	Supports the transmitting of the PDH services with SDH services to groom the PDH services.
  Ethernet service	Ethernet private line (EPL) Ethernet virtual private line (EVPL) Ethernet private LAN (EPLAN) Ethernet virtual private LAN (EVPLAN)

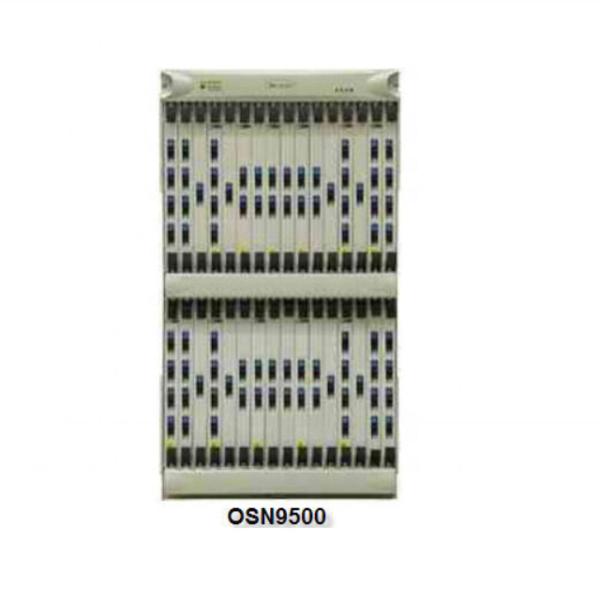

  The OptiX OSN 9500 consists of the following parts:

  • Cabinet, which contains the DC power distribution unit (PDU), front door, rear door and side panel. The DC PDU mainly access and distributes power.
  • Subrack, which contains the fan tray assemblies, boards, air filter and cabling troughs. The fan tray assemblies are used to dissipate head generated by the equipment. Each subrack should be configured with two fan tray assemblies.
  • Cables, which contain fibers, packages of internal cables and external cables.
  • Other optional components, which contain the orderwire phone, hub accessories, and bracket for cabinet installation.
