Analog Devices Transceivers High Frequency Transformer SMT SA2303 = DA2302-AL

SA2303 = DA2302-AL Switch Mode Transformer For Analog Devices Isolated RS-485 Transceivers

Product Description:

SMT Power Transformers For Texas Instruments SN6501, ISO1176T/35T/3086T
and Analog Devices ADM2482E/2485/2487E RS-485 Transceivers

Feature:

• Center tapped primary and secondary windings
• 2500 Vrms, one minute interwinding isolation.
• Core material Ferrite
• Terminations RoHS tin-silver over tin over nickel over phos bronze.
  Other terminations are available at additional cost.
• Weight 0.94 – 1.0 g
• Ambient temperature –40°C to +125°C
• Storage temperature Component: –40°C to +125°C.
• Tape and reel packaging: –40°C to +80°C

1. Inductance measured at 1 Vrms, 60 kHz, 0 Adc.
2. Vrms = continuous voltage.
3. Vinst = instantaneous voltage at startup.
4. Ambient operating temperature range −40°C to +85°C.
5. Electrical specifications at 25°C.

SA2302= DA2303-AL Switch Mode Transformer For Analog Devices Isolated RS-485 Transceivers

Shape and Dimensions:

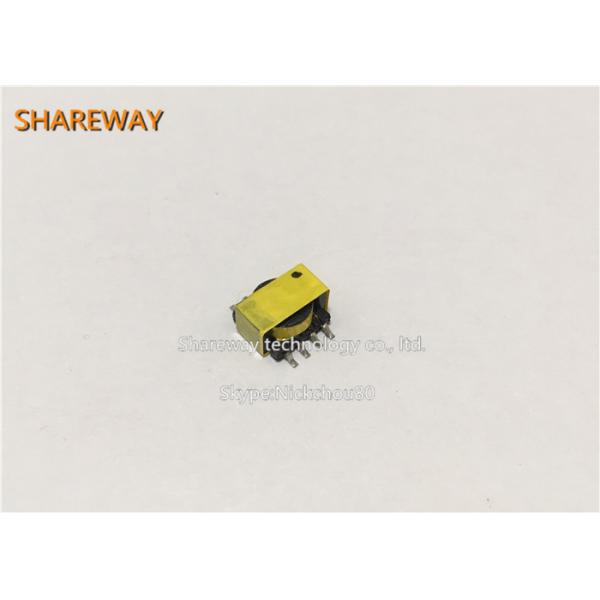

Product Picture:

SA2303-AL = DA2302-AL Switch Mode Transformer For Analog Devices Isolated RS-485 Transceivers

HOW TO ORDER
1. Please send me the datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods are finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
