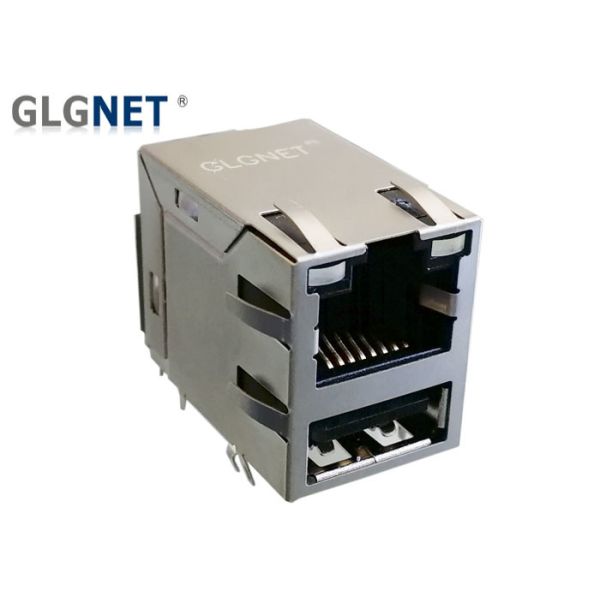

Magnetic RJ45 Connector with LED Light Pipes Rj45 Modular Jack with USB 2.0 interface

Magnetic RJ45 Connector with LED Light Pipes Rj45 Modular Jack with USB 2.0 interface

The right angle Magnetic RJ45 Connector is from GLGNET reduces the required PCB footprint, enabling engineers and designers to save "real estate" on new product designs. This product is available in either USB 1.1 or 2.0 standards enabling data transmission speeds of 12Mbps and 480Mbps respectively. The RJ45 connector with integrated magnetics allows Ethernet performance to 10/100 BaseT standards. The RJ45 Jack is supplied with integral green/orange and yellow LED's as standard, but can be customised if required. The product is through hole mounting.

GLGNET RJ45 USB Connector with Magnetic ( ULBU1T435-D4Y ) Structure as following:

• RJ45 Connector + USB 2.0 Connector
• Mount Type : Through hole
• Latch Up / Tab Up
• With 10 / 100 Transformer ( Magnetic )
• With EMI Finger ( Can be designed without EMI Finger )
• With Light Pipe / Light Guide
• With LED ( Can be designed without LED)
• LED Color : Green , Orange, Yellow , also can be customized as other color
• Without Stand - off
• RJ45 Shielding : 0.2mm thickness with Brass,
• USB 2.0 Shielding : 0.2mm thickness Brass
• Lenght :29.05 mm ( 1.144 inch )
• Width : 16.8 mm (0.661 inch )
• Height : 21 mm ( 0.827 inch )
• Contact Finish : With 6 u" Gold Plating ( also can be with 15u" , 30u" , 50u" Gold Plating )

"This RJ45 USB connector lends itself to a variety of different applications," it's ideal for audio visual, broadcast and gaming products. Additionally a large proportion of consumer electronic products require both these interfaces and current technology trends are driving ever smaller products. This product helps to minimise the total PCB footprint required."

This RJ45 USB connector can be used in conjunction with a broad range of other RJ45 and USB cable assembly products available from GLGNET.

1. Electrical Specification:

2. Features

• RJ45 Connector Complies with requirements of IEEE 802.3u standards
• USB 2.0 Connector supports 480Mbps Transmission Speed, Compatible with USB 1.1
• Comply with RoHS, REACH, UL requirements
• Broad set of configurations
• -40°C to +85°C or 0°C to +70°C operating temperature range
• RJ45 connector can be with 10 / 100 / 1000 / 2.5G / 5G / 10G Magnetic / Transformer

3. Materials

• USB 2.0 Contact : Brass ( C5210 ), T= 0.25mm
• RJ45 Housing: Class Filled PA46 ( Black ) UL94V-0 (ROHS)
• RJ45 Contacting: 0.35mm phoshpor Bronze ( C5210 ) Plating over Nickel (ROHS)
• RJ45 Insert: Class Filled PA46 ( Black ) UL94V-0 (ROHS)
• RJ45 Solder PIN: 0.35mm Thickness Phos - Bronze ( C2680)
• USB 2.0 Shielding : Brass
• RJ45 Sheliding: 0.2mm thickness with Brass
• RJ45 Contact: Phosphor Bronze, 6U" AU Plated In Contact Area, 100U" MIN Matte Tin Plated in Solder Area, 50U" MIN Nickel Underplate Overall,
• Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
• The Part is recommended for wave soldering process peak soldering temperature is 265 ℃ MAX. 10 Seconds Max;
• Operating Temperature: 0 to 70 ℃, Storage Temperature : -40 to 85 ℃

4. GLGNET RJ45 USB Connector with Magnetic ( ULBU1T435-D4Y ) Attributes:

5. LED Specification

6. Customization Services

• 90 ° or 180 ° Orientation
• Single Port or Multiple Port, Ganged structure or Stacked Structure;
• With one USB 2.0 port or 2 USB 2.0 port
• With or without POE function;
• Supports to custom different structure, Tab - up or Tab - Down, Different size, Different Color, With or without Transformer;
• Supports to custom different Pin Length;
• LED color can be green, yellow, orange, red and so on;
• Operating Temp. Can be 0 ~ 70 ℃ or -40 ~ 85 ℃ ;
• Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
• Being with or without LED diode,
• Being with or without EMT TAB ( EMI Spring , EMI Finger );
• Being with or without lightpipes;
• Printing LOGO

7. Applications:

• Audio visual,
• Broadcast
• Gaming products
• Internet of Things (Ethernet)
• IP cameras, surveillance, and phones
• Access points
• Network interface cards (NIC)
• Industrial process control
• Networking and communications
• Broadcast video
• Set-top boxes and video
• LED TV
• SMart TV
• STB
• HUBs
• PCs
• Router,

8. GLGNET Advantage

• 20 years experiences in Magnetic RJ45 Connectors
• 1500 Employees
• 58 R&D Engineers.
• 22000 square meters Factory
• We support Costom Service;
• Our products are compliant with RoHS, REACH and UL certification
• Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
• 20KK Prots / Month Capacity
• ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
• We have our Own Hardware Mold and Plastic Mold
• Has 3 LS-WEDM Machines
• Has 12 WEDM Machines and 8 CNC Machines
• Has 20 Grinding Machines and 12 Electrical Discharge Machines
• Has 30 Stamping Machines
• Has 55 Plastic Injection Machines
• Has Automatic Assembly Workshops

9. Mechnical Drawing
