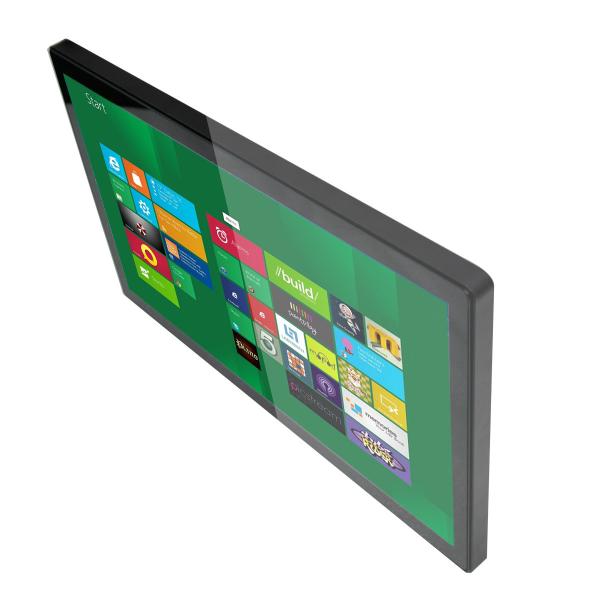

15" industrial flush mount PCAP touchscreen LCD Monintor Display
ITD’s flush mount projected capacitive touch displays are engineered specifically for industrial customers who are looking for a rugged and durable touch screen without having to sacrifice on image quality. Featuring a special “FLANGE” around withzero bezel design, the touchscreen monitor can easily be wiped clean, thereby eliminating having to worry about dust and dirt collection, and easily make a true flat front surface of console, which helps extend the use of your display. ITD industrial multi touch displays are accurate, responsive and easy-to-use, enabling migration of existing single touch applications to a gesture-based interface that creates and delivers popular user interactions such as pan, zoom and rotate, which ideal for kiosks, gaming, banking and all kinds of self-service terminals.
BENEFITES
-All steel/aluminum construction provides rugged frame for public
use environments
-Special“FLANGE” design around easy-to-install to make total true
flat front surface
-Ten independent touch points, plug and play
-Eliminates dust and debris build-up at the edge and corners of the
display
-Provides improved power efficiency and reduced consumption
-Responds to a light touch in activating response
-Easy-to-clean surface without bezels
-Long lasting product cycle for continuity thru all phases of
project
Flush Mount PCAP Touchscreen Monitor  | |
| Model Name | ITD21OFT5Y1 |
| IP Rating | IP65 Front Panel |
LCD Panel  | |
| Screen Diagonal (Inch) | 21.5” |
| Display Active Screen Size (cm) | 476.64(H)×268.11(V) |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920×1080 |
| Maximum Resolution Supported | 1920×1080 |
| Colors | 16.7M |
| Brightness (cd/m²) | 250 |
| Contrast Ratio | 1000:1 |
| View Angels | 85/85/80/80 or 89/89/89/89 |
| Backlight/Backlight Lifetime | LED Backlight with 50000Hours’Lifetime |
Touch Panel  | |
| Touch Technology | Projected Capacitive Touch |
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi |
| Touch Life | 50,000,000times/click |
| Surface Hardness | 7H |
Input / Output  | |
| Video Input | 1 × VGA |
| 1 × DVI-I | |
| 1 × HDMI | |
| Audio | 1 × PC-Audio |
| Touch Connector | 1 × USB |
| Power Connector | 1 × DC2.0 |
Operation  | |
| Operating Temperature Range | -10~60°C (-20~70°C Optional) |
| Humidity Range (RH) | 10-90% |
| 24/7/365 Use | Supported |
Power  | |
| Power Indicator | Green LED |
| Power Input | DC 12V |
| Power Consumption | 26.25W |
Optional  | |
| Side Mounting Brackets | |


APPLICATION



                             |
