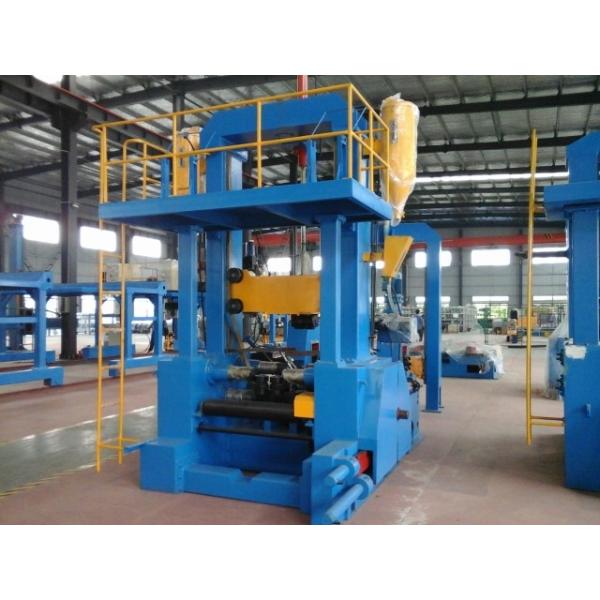

H Beam 3 in 1 Machine , Automatic Welding Machine with Assembling Welding and Straightening Functions

1. Quick Details

• Web height up to 1800mm, thickness up to 20mm; Suitable for light duty beam;
• H-beam combination workstation is used for H-beam or T-beam assembly, welding and straightening;
• Save space and economize workshop; shorten the production time and improve the efficiency;
• Economize the investment of crane equipment and operator;
• American Lincoln DC-1000,NA-3S single arc twin wire welding power;
• Japan Mitsubishi PLC controller;

2. Main Parameters

* We reserve the right to alter specifications without prior notice.

3. Main features

The standard models of our H-beam combination workstation for assembly, welding and straightening has the following features:

• Robust all steel fabrication with stable structure and good rigidity, and no deformation after long time using;
• Synchronous clamping and centering system for web and flange;
• Japan Mitsubishi PLC controller;
• The whole system is using the PLC, and the speed of straightening, assembly and welding is the same;
• American Lincoln DC-1000,NA-3S single arc twin wire welding power;
• Flux feeding and recovery machine;
• Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting;
• All motion parts have lubrication system;
• Main electric elements are ABB/Siemens brands;
• Lifting lug;
• Standard color:

4. Comparative advantage

• ISO9000&CE certified;
• International warranty;
• Punctual delivery;
• Professional and experienced engineer team to ensure the advanced design about structure and electric;
• Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
• Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
• Optimum materials and outsourcings to ensure the best performance;
• Commissioning and testing before delivery;
• Factory inspection is encouraged;

Company introduction

     We are located in Wuxi city, Jiangsu province, specializes in manufacturing various types of high speed, high precision roll forming machines, with more than 15 years’ experience. It has gained highly praise by customers from all over the world, due to top quality and competitive price of the products. Company principle: top quality, low price.

      Wuxi Luole Machinery Co., Ltd is a high tech enterprise . We a professional manufacturer of cold forming equipment (especially high difficulty cold formed steel), wins the trust of customers by its honesty, pragmatic operation philosophy, advanced technology, innovative design thinking, excellent quality, superior after sales service, competitive price, etc.

Main products

    We mainly produce all kinds of roof/ wall tile roll forming machine, C purlin, Z purlin, C&Z interchangeable purlin roll forming machine, solar photovoltaic forming machine, shelf column roll forming machine, guardrail roll forming machine, cable tray roll forming machine, metal deck roll forming machine, down pipe roll forming machine, rolling shutter door roll forming machine, cut to length machine, eps/pu sandwich panel production line, slitting line, automatic stacker, etc, mainly in construction use.

After sale service

1). Engineer will give free training lessons to labors in buyer’s factory.

2). The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD80 for engineer per day.

3). During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.

4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

Photo of the factory
