| product name: | Mattress Fatigue Tester |
| Weight of hexagonal wood barrel: | 109kg, Cylinder weight:140kg |
| Maximum size of mattress: | 2.3m×2.5m (optional) |
| Company Info. |
| Hai Da Labtester |
| Verified Supplier |
| View Contact Details |
| Product List |

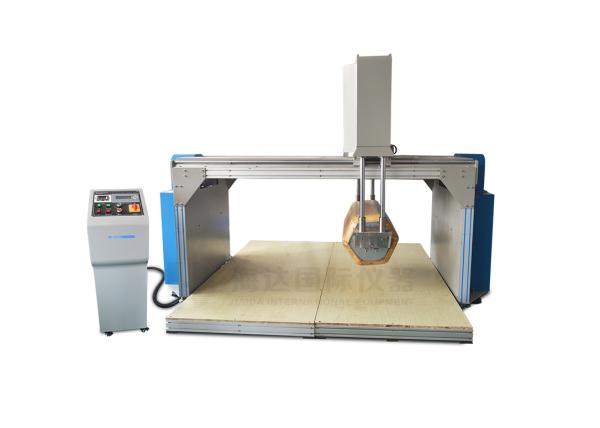

Mattress Fatigue Tester Furniture Testing Machine With LCD Controller
The usage:
Mattress Fatigue Tester use a horizontal hexagonal wooden drum roll or cylinder (both ends of the diameter of 250 mm, the middle part of the 300 mm, rolling back and forth on the mattress , simulate human motion to assess the durability of the mattress.
Function and features:
| Weight of hexagonal wood barrel | 109kg, Cylinder weight:140kg |
| Maximum size of mattress | 2.3m×2.5m (optional) |
| Machine size(L×W×H) | 2500mm×2800mm×2200mm |
| Power | 380V, 1.5kw |
| According to different mattress to adjust the rolling stroke(adjust the limit switch position) | |
| low coefficient of friction guide, ensure full drum weight on the mattress. | |
| The text display provides easy control and setting. | |
The main components:
Mattress Fatigue Tester
1.Motor: Taiwan's Teco Motor with reducer of Italy
2. Speed adjustment: Taiwan's "Ed Force" drive
3. Guide bearing: Import from Japan.
4. Rack: aluminum body and steel
5. Control elements: Imported.


|
