| Categories | GPS Mobile DVR |
|---|---|
| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | VisionMaster |
| Model Number: | VM-1404-HD |
| Price: | Negotiable |
| MOQ: | 1 Set/Sets |
| Certification: | CE,FCC |
| Payment Terms: | T/T, Western Union,PayPal |
| Supply Ability: | 2000 sets / month |
| Delivery Time: | 3-5 work days for samples,15-30 work days for large orders |
| Packaging Details: | Neutral packing |

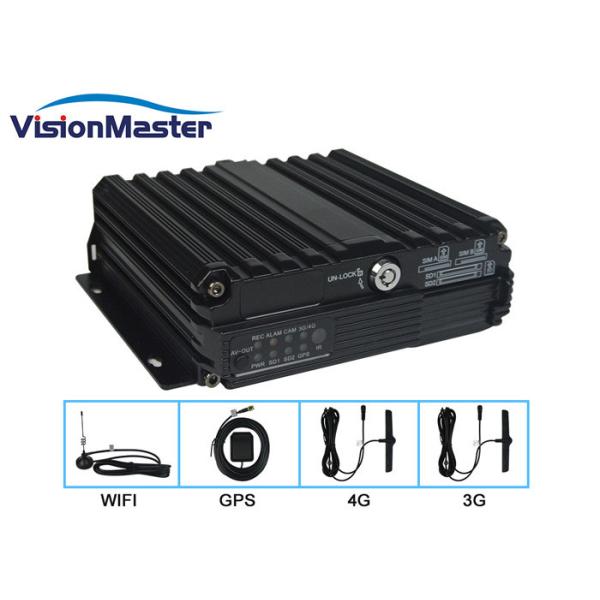

| Product name: | HD Mobile Automobile DVR System , Cmsv6 Client Software Mobile DVR With Wifi |
| Video input: | 4 AHD + 1 APC |
| Storage: | SD card slot * 2 (128GB/SD Card) |
| Function: | WIFI, GPS, 3G, 4G, G-sensor |
| Alarm Input: | 8 Channels |
| Certificate: | CE, FCC, RoHs |
| Waterproof: | Yes |
| Warranty: | 18 Months |
| Function | VM-1404-HD | |
| System | Language | English / Chinese |
| Operation Interface | Graphical User Interface (OSD menu) | |
| Password Security | 2 Levels: Administrator or User | |
| Video | Video Input | Supports 4 channels CIF/HD1/D1/960H/720P AHD camera Video input Supports 2-CH 720P AHD + 2-CH 960H analog mixing Video input Supports 1-CH 720P/1080P IPC + 4-CH 960H/D1/CIF Video input Note: 4 channels 720P AHD or 1-CH 720P/1080P IPC + 4-CH 960H Video input will require high speed SD card ( > 80Mb/S, Class 10 or higher) |
| Video Output | 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24 pin I/O Port ) | |
| Video Display | Single picture, 1~5 pictures | |
| Signal System | PAL / NTSC ( PAL@100 frame 720P/sec; NTSC@120 frame 720P/sec ) | |
| Image Compression | H.264 Main profile | |
| Audio | Audio Input | 4 Channels |
| Audio Output | 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24 pin I/O Port ) | |
| Recording Format | Synchronized A/V recording | |
| Recording & Storage | Image Resolution | CIF / HD1 / D1 / 960H / 720P/1080P optional |
| Video Coding | ISO14496-10 Industry Standard | |
| Video Bit Rate | CIF: 1536Kbps ~ 128Kbps, | |
| HD1/D1: 2048Kbps ~ 400Kbps, | ||
| 960H: 2048Kbps ~ 400Kbps, | ||
| 720P:4096Kbps ~ 400Kbps | ||
| 1080P:4096Kbps ~ 400Kbps | ||
| Select from 8 Levels of Video Image Quality ranging from 1(Highest) to 8(Lowest) | ||
| Audio Bit Rate | 40Kbps | |
| Storage | 2 SD Card Slots, Up to 128GB each, Class 10 or higher | |
| Alarm | Alarm Input | 8 Channels, Select trigger for either less than 1VDC or greater than 5VDC |
| Alarm Output | 1 Channel, 12V output | |
| Communication Ports | RS485 | 1 Port for PTZ control or Data Device usage |
| RS232 | 2 Port for communication or data usage | |
| RJ45 Network | 1 Port of RJ45. For connection to an IP camera with maximun of 1080P | |
| Wireless Communication* | 3G* | 3G (HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA) optional internal module |
| 4G* | 4G(TDD-LTE / FDD-LTE) optional internal module to match local cellular carrier | |
| Wi-Fi* | Internal Wi-Fi 802.11b/g/n (2.4 / 5.8 Ghz) option | |
| GPS* | Int'l Standard GPS* | Internal GPS module. Real-time geographic coordinates, speed information |
| G-Sensor | Internal G-Sensor | Supports 3 Axis Motion Detection with user set ranges for X, Y and Z coordinates |
| Software | PC Playback | A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR |
| IVMS | Wireless (requires Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms, etc. | |
| Software Upgrade | Local or Remotely | Upgrade through SD card or remotely via IVMS platform |
| Voltage Input | +8～+36V | 8～36VDC Please check operational voltage of vehicle prior to the installation of the MDVR and its accessories to prevent possible damage. |
| Voltage Output | 12V | 12V(+/-0.2V),Max 3A |
| ACC Detection | ≤4V | Power-off |
| ≥6V | Power-on | |
| Video Input Resistance | 75Ω | 75Ω |
| Video Output Voltage | 2Vp-p | 2VP-P CVBS output analog signal, screen input requires 75Ω resistance |
| I / O Port | <1V | Low voltage trigger |
| >5V | High voltage trigger | |
| Operational Temperature | -25℃ ~ 75℃ | Install in well ventilated area, protected from moisture, heat, dust and vibration |
| Dimensions | 170x142x50mm | Including Security Cover 170x187x50mm |
Sample packing | |
Size | 240(L) * 200 (W) * 150 (D) |
Weight | 1.7kg |
Packaging details | The host and the corresponding accessories |
Shipping carton | |
Size | 123 (L) * 456 (W) * 789 (D) |
Weight | 480mm(w)×480 mm(D)×421mm(H) |
Packaging details | Packaging can be neutral, also can pack the goods according to the
requirements of can;Packaging can add on the customer's logo |
|
