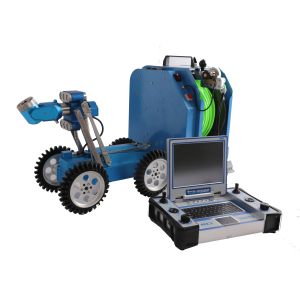

Mainline Pipeline Inspection Robot , Pipe Crawler Robot Wireless Control

Selectable Controller Mainline Pipeline Inspection Robot Inspection Crawler system, the customer can choose either laptop or controller to control the crawler, they can work together also.It makes a great advantage for inpsection on-site customers. The ightweight manual cable drum is easy for transportation and operation.

Features:

1. Laptop or controller control

2. Multiple choices

3. Anti-fogged camera lens

4. 360 ° rotate of camera

5. Windows laptop/controller

6. Brightless adjustable

Technical Parameter

Controller		1. Available in any notebook computer as the control system 2. Wireless control 3. Real-time display date and time, travel distance, crawling attitude information and set the display font information, font size,background color. 4. Front and rear sights display on the same interface at the same time.
Pan&Tilt Camera JT2000		1,360 degree, no limited rotate 2,The lens heating can prevent fog 3,Camera light can be adjusted 4,Maximum Brightness upgrade 50%, More suitable for small diameter 5,Optional Laser, calibrate defect size
Cralwer TVS-800		1. Working temperature: -10ºC~50ºC 2. Suitable pipe diameter: 50mm~2000mm 3. Drive: two DC motor 4. Elevator: electric elevator 5. Inclination: mesurement scope ±45 degree, pecision 0.1 degree 6. Speed: adjustable speed, max. 32m/min 7. Direction: forward, backward, left, right 8. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light. 9. Climbing: max. climb degree about 50° according to diffrerent pipe status 10. Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving
Manual Cable Drum DLPM120		1,Manual cable drum 2,standard length: 120m
Controller MK3		1. Pad Style Control Unit, 8.4' Touched LED, Readable in Sun Shine, 1024*768 resolution, 4.1kg 2,Win7 system, 128GB SSD, Record video in site, 100+ hours video can be saved. 3,Camera position, elevator position in Graphs 4,Inclination report in site. 5,System status, work parameter can be query.

System Configuration

Founded in 2006, Wuhan Trio-Vision Technology Co., Ltd. (hereinafter called "TVS") Is the exploiter in Chinese underground pipe inspection equipment industry. The company has been specialized in developing, manufacturing, sales and technology service of urban drainage pipe inspection and online inspection. With rapid development in recent years, the company has been the celebrated enterprise in underground pipe inspection product developing and manufacturing in both domestic and overseas.

Currently we have distributors in USA, UK, and The Netherlands.

TVS is always aiming at advanced inspection technology in the world, the company succesively pushed out portable pipe camera (manhole camera) in 2006, pipe robot (CCTV pipe inspection system) in 2008, and pipe sonar inspection system in 2010, TVS also applied all kinds of patents, and software copyright. As the exploiter of drainage pipe inspection technology in China, TVS is devoted to localization of underground inspection equipments, providing reliable CCTV pipe inspection equipment, pipe maintenance vehicle, pipe flow monitoring system and correspondent services, and supplying the customer one-stop complete equipment solution.

TVS is strictly with product quality, performance, carries out the theory of "concentrations achieves professions, innovation wins the preemptive opportunities", concentrate developing, manufacturing, and sales into complete, the company annually manufactured and sold over 200 units on three series inspection products, the sales network is all over the country, and get highly appraise from the customer. TVS has its own import and export business license, its products sold far to America, UK, Germany, Australia, East Asia etc. At the same time, the company has set up a complete customer service system, owned its professional customer service team to guarantee the equipment use normally.
