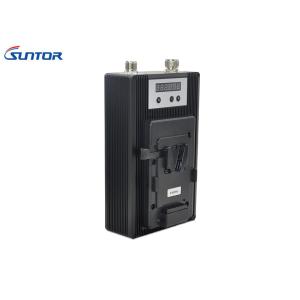

Narrow Bandwidth COFDM Video Transmitter Receiver With Strong NLOS Range

Narrow bandwidth COFDM wireless video transmitter with strong NLOS range

Product description:
ST6200DB-SD wireless real-time video transmission equipment is new generation of real-time broadcast-quality high-resolution image transmission system. It adopts the current leading COFDM modulation technology, has the strong anti-jamming capability, overcomes the reflection and cover caused by transmission multipath simulation technique and conventional modulation techniques, to realize high-speed photography and real-time transmit high quality image in NLOS or complicated working environment.

Picture quality reach to DVD (720*576@ PAL / 720*480@ NTSC)via MPEG-2 encode, with the advantage of high definition & good color performance.

Advantages:

• 2 MHz narrow bandwidth, DVD video image quality.
• Dual AES encryption can be set manually
• With display to show the parameters, adjustable parameters
• The receiver has LCD display to show the Signal strength indication
• Only using 2MHz frequency bandwidth
• Longer wireless transmission distance, about 1/3 longer than the 8MHz bandwidth.
• Digital video process with high quality and video encoder decoder is H. 264/MPEG-2.
• Very low delay when encoding, about 300ms point to point
• Transmit audio video stably when the equipment moving fast and with much interference.
• Supports NLOS distance transmission
• Transmission power: 1-5w adjustable
• With spatial diversity reception capability
• Small size, light weight, very convenient to carry and install.

Applications:

• Commercial
• Industrial

Available for Long Range Line-of-Sight and Urban Non-Line-of-Sight applications.

Transmitter parameter
