Large Load Inductive Amp Clamp Nominal Input Current HVDC Online For Bus Bar

Large Load Inductive Current Clamp for Bus Bar , HVDC Online with 5A Output

In electrical and electronic engineering, a current clamp. current probe is an electrical device having jaws which open to allow clamping around an electrical conductor. This allows measurement of the current in a conductor without the need to make physical contact with it, or to disconnect it for insertion through the probe.

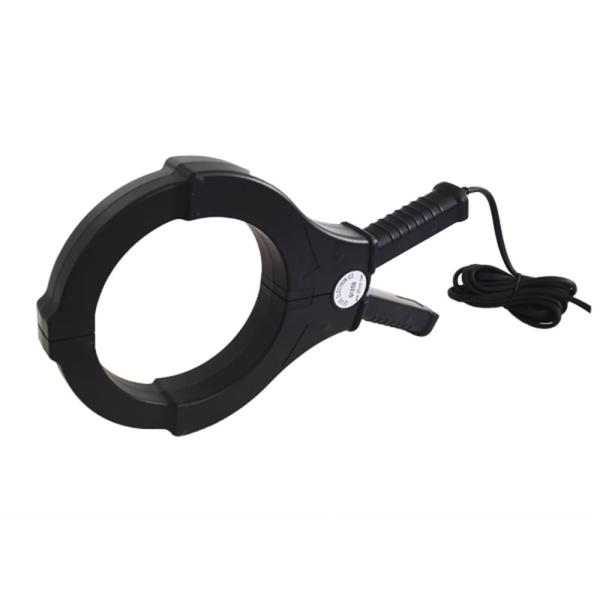

The Q125B is a high performance AC Current Probe with excellent transformation and low phase shift. The high quality magnetic core and uniform windings provide for accurate measurements up to 1000A AC/2000A AC/3000A AC. The Round jaw permits 125mm cable positioning. Provide excellent TRMS capabilities and reliable signal reproduction.

Current probes are key to the successful design of electrical devices, testing instruments,
and electronic parts. Probes work with testing devices are ideal for measuring currents with high accuracy making them
Indispensable tools for evaluating current consumption and control current. In recent years,
customers are seeking current probes with high sensitivity to increase the accuracy of design and
verification.GFUVE offers wide range of current sensors for its portable power analyzers. The
products included in this range can be used to measure current levels from a few mA to
up to several thousand amperes.

Features

Measurement range of 1A to 3600A AC

Large jaw opening designed

Improved ergonomic design and easy operation

Conforms to EN 61010, 600V CAT III

Low phase shift for power measurement

Nominal range: 1 to 1000AAC, 1 to 2000AAC, 1 to 3000AAC

Transformation ratio: 1000:5, 2000:5, 3000:5

Output:5mA AC/A AC, 2.5mA AC/A AC, 1.666mA AC/A AC

Designed for use on DMMs, power and harmonic meters, recorders or instruments with AC current ranges

UL, CE mark

Applications

Large industrial loads

Measuring around cable bundles

Power load monitoring

Electrical utility

HVAC

Industrial maintenance

Laboratory

Plant maintenance

Cable fault tester

Parameter

Photos
