Carton Resist Compression Package Testing Equipment With Microcomputer Control

Categories Package Testing Equipment
Brand Name: YUYANG
Model Number: YY1407
Certification: GB/T4857.4 GB/T4857.16 ISO2872、ASTM D642
Place of Origin: China
MOQ: 1 set
Price: Negotiation
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2 sets per month
Delivery Time: 15-20 work days
Packaging Details: Plywood Case
Product Name: Package Testing Equipment
Usage: Carton Resist Compression Test
Unit exchange: kgf, Ibf, N
Resolution: 1/10,000
Accuracy: ±1%
Display: LCD display
Compression space: 100*100*100cm
Test speed: 12~350mm/min
Volume: 153×121×180cm
Power: AC 220V 5A
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

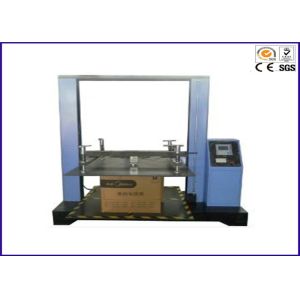

Carton Resist Compression Package Testing Equipment With Microcomputer Control

Micro-computer Carton Resist Compression Package Testing Equipment


Product Summary:


Electronic carton compression testing machine used to test the compressive strength

of cartons, containers and other packaging structures, It adopts dynamic holding pressure technology, simulates stacking test , in order to know the compressive strength and impact resistance capacity of product packaging during transportation and stacking. The test results can used as the reference for packaging design.


Features:


1. Taiwan AC frequency conversion motor drives, synchronous belt drive;

2. Adopts the gapless ball screw to lift, precise and stable;

3. With the U.S. high-precision explosion-proof type LOAD CELL;

4. Measured using microcomputer control, dual-LCD display: compressive strength value , maximum compressive strength value (maximum crushing strength), displacement, carton deformation (when the carton crushing deformation), etc. 4 values

5. To adopt Japan high-precision measurement to measure displacement.

6. Automatically print the test data


Standards:


GB/T4857.4 GB/T4857.16 ISO2872,ASTM D642

GB/T16491TAPPI-T804 JIS-Z0212


Applicable Industry:


Electronic carton resist compression testing machine applicable to all factories and enterprises, technical supervision departments,the commodity inspection authorities, research institutes and other departments for testing and researching.


Technical Parameter:


ModelYY1407
Unit exchangekgf, Ibf, N,
Resolution1/10,000
Accuracy±1%
DisplayLCD display
Compression space100*100*100cm(or designated)
Control systemAC converter, gear, Motor
Test speed12~350mm/min
ProtectorLeakage protection, overload auto-shutdown, displacement limit protection
Printing

Automatic printing the result, Print (maximum power, average,

automatic abtained-point value, the breakpoints ratio, date)

Volume153×121×180cm
Power1∮ AC 220V 5A
